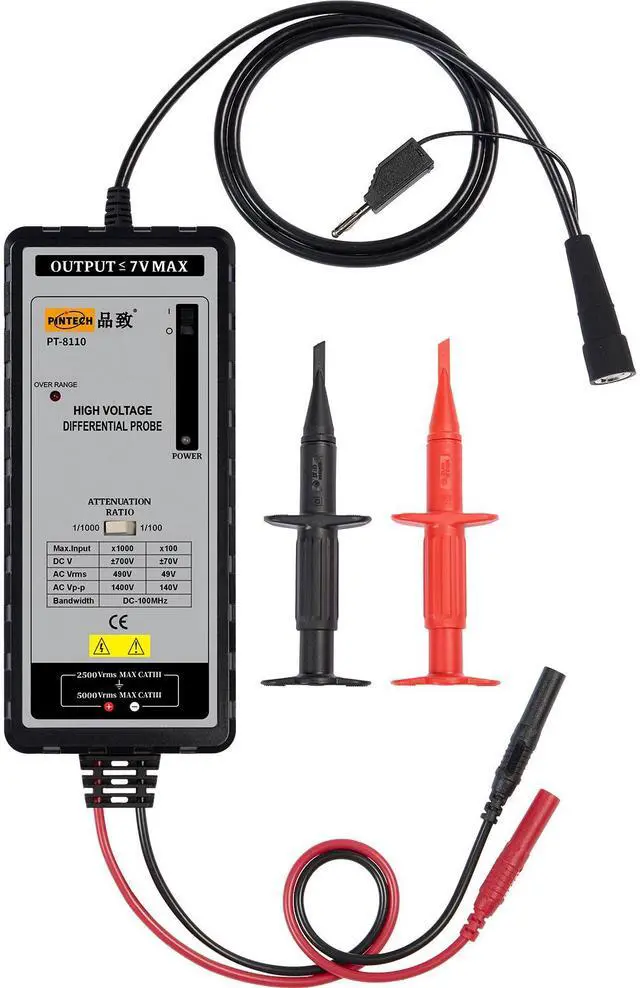

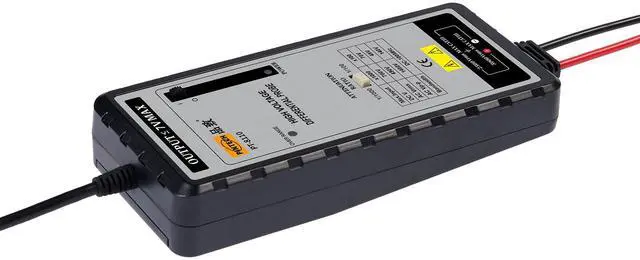

PINTECH Oscilloscope Differential Probe 1400V, 100MHz, 100X/1000X Attenuation Rate Oscilloscope Probe with BNC Interface, PT-8110
- Rise Time: 3.5ns. This differential probe measures signals with very fast rise times.
- DC-100MHz, Accuracy (Typical):±2%, Attenuation Ratio: 100X/1000X.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
- Package Included: PT-8110 differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

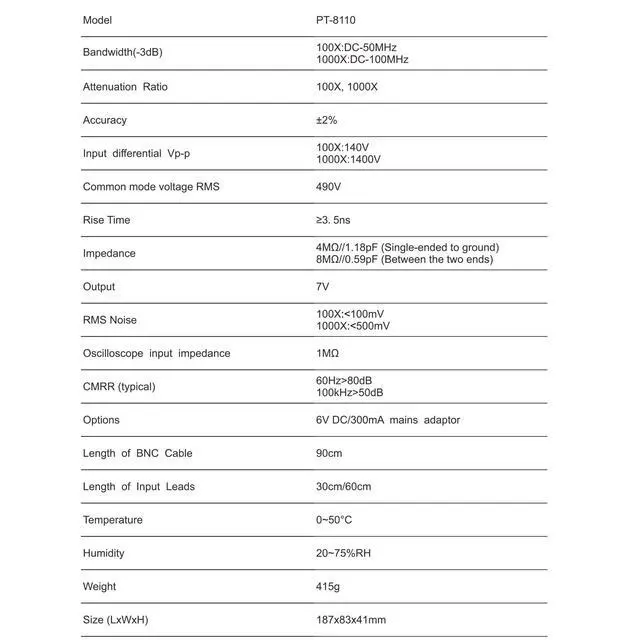

MODEL: PT-8110
Bandwidth (-3dB): 100X: DC-50MHz; 1000X: DC-100MHz
Input Impedance: Between the two ends: 8M//0.59pF, Single-ended to ground: 4M//1.18pF
Attenuation Rate: 100X/1000X
Rising Time: 3.5ns
Output (into 50K load): 7V
Accuracy: ±2%
-Offset(typical): <±5mV
Oscilloscope Input Impedance: 1M
CMRR: 60Hz:>80dB;100kHz:>50dB
Testing VoltageVp-p: 100X: 140V; 1000X: 1400V
Input DC Voltage: 100X: 70V; 1000X: 700V
Common-mode Voltage (RMS):490V
RMS Value: 490V
Noise RMS: 100X:<100mV; 1000X:<500mV
Weight: 400g/0.88lb
Dimension(LxWxH): 186x84x38 mm
