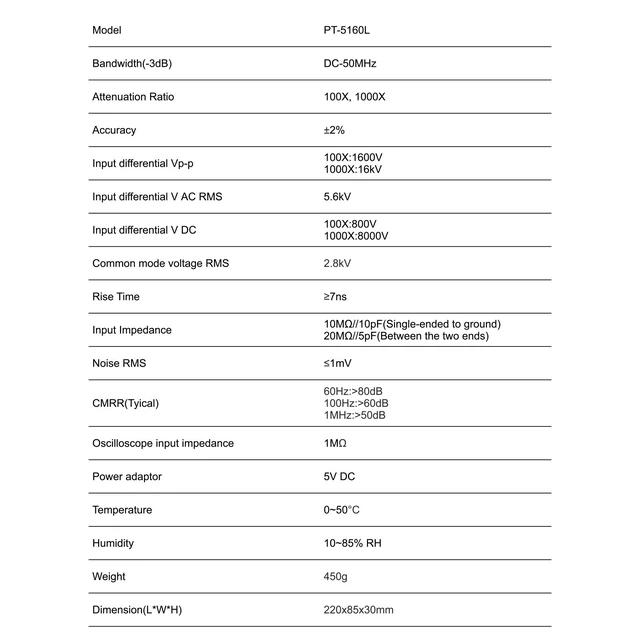

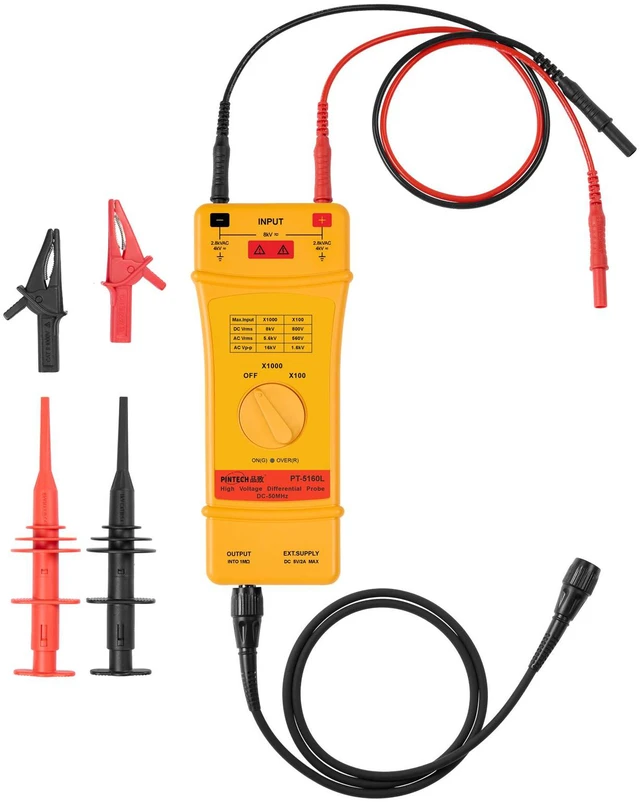

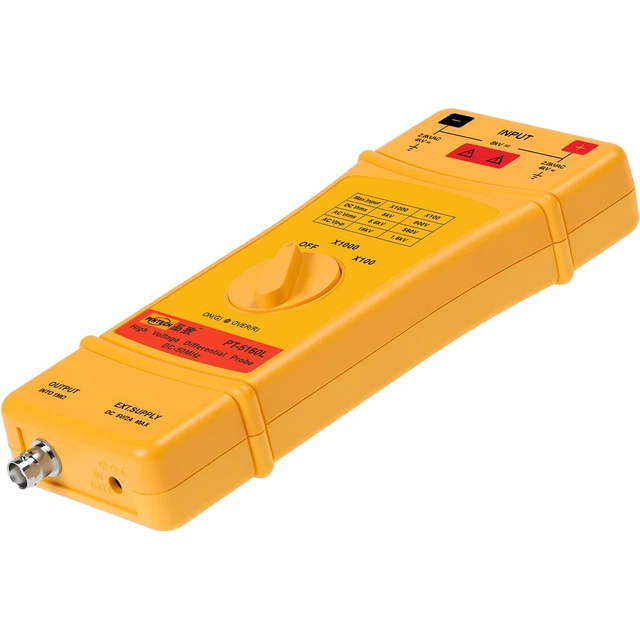

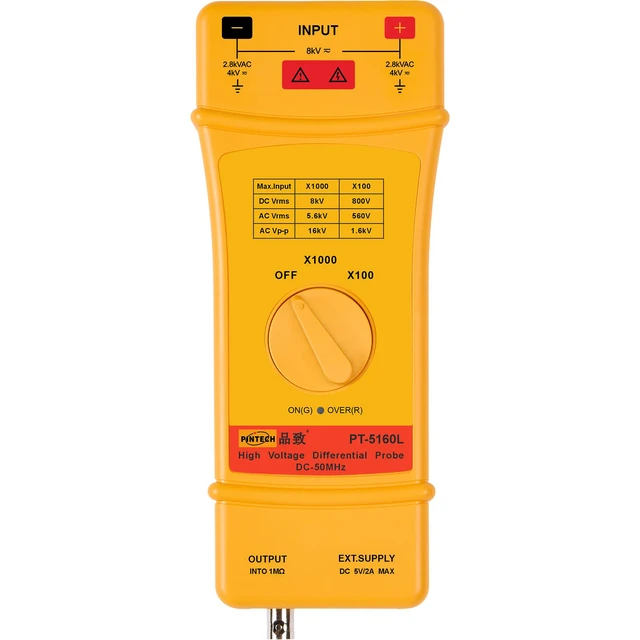

PINTECH High Voltage Differential Probes for Oscilloscope 16kV, 50MHZ, 100X/1000X Attenuation Rate, Oscilloscope Probe with Standard BNC Interface, PT-5160L

Q: Should I choose the PINTECH PT-5160L or a standard passive high-voltage probe for inverter or floating-node measurements?

A: Choose the PT-5160L when you need to measure the voltage difference between two non-ground-referenced points, such as half-bridge, full-bridge, motor drive, or offline power-supply nodes. A standard high-voltage passive probe is better for single-ended measurements referenced to ground. The PT-5160L’s differential design, 16 kVp-p range, and 100X/1000X attenuation make it the more appropriate option when isolation and common-mode handling matter more than simple ground-referenced voltage viewing.

Q: Is the PT-5160L a better fit than using two regular oscilloscope probes and math subtraction?

A: Yes, if the measurement includes high common-mode voltage or safety-sensitive power electronics work. Two regular probes with A-B math can work for quick low-risk checks, but a dedicated differential probe is usually the better choice when you need higher common-mode tolerance, more consistent differential accuracy, and less risk of losing dynamic range. The PT-5160L is the stronger option for repeatable bench work on high-voltage switching circuits.

Q: Should I buy the PT-5160L or step up to the PT-5160M or PT-5160?

A: Choose the PT-5160L if your priority is high-voltage differential measurement up to 16 kVp-p and 50 MHz bandwidth is sufficient for your work. Step up to the PT-5160M or PT-5160 if you need more bandwidth for faster edges, switching transients, or more detailed waveform analysis. Across these three models, the main trade-off is bandwidth: PT-5160L is 50 MHz, PT-5160M is 70 MHz, and PT-5160 is 100 MHz, while the attenuation options and high-voltage range stay broadly aligned.

Q: Is the PT-5160L better than a lower-voltage 50 MHz differential probe?

A: Choose the PT-5160L when voltage headroom is the deciding factor. Many 50 MHz to 100 MHz differential probes from mainstream vendors are aimed at lower-voltage work, often around 800 V to 1500 V differential, while the PT-5160L is positioned for much higher-voltage measurement with 100X/1000X ranges up to 16 kVp-p. A lower-voltage probe can be the better fit for bench circuits that do not need that headroom, but the PT-5160L is the safer match for larger power conversion and high-energy test setups.

Q: For portability and simple bench work, should I choose a compact lower-voltage differential probe instead of the PT-5160L?

A: Choose a compact lower-voltage differential probe if your work is mainly lower-voltage lab debugging and you value lighter handling and smaller physical size over maximum voltage range. Choose the PT-5160L when your use case is performance-first in high-voltage environments, especially where 1000X attenuation and 16 kVp-p capability are more important than portability. The practical trade-off is convenience versus voltage headroom.

Q: Will this probe work with my oscilloscope?

A: Usually yes, if your oscilloscope has a standard BNC input with 1 MΩ input impedance. The PT-5160L is described with a standard BNC interface and is intended for broad oscilloscope compatibility. As with similar high-voltage differential probes from Keysight and other test-equipment sellers, BNC-based differential probes are typically used with general-purpose grounded oscilloscopes, but you still need to set the scope to the correct attenuation factor manually if it does not auto-detect the probe.

Q: Who is this probe suitable for?

A: This probe is best suited for engineers, technicians, and lab users who need to measure floating or high-voltage differential signals safely on power electronics, inverter, motor-drive, and power-supply work. It is not an entry-level general-purpose probe for basic low-voltage bench checks; its value is in handling high differential voltage and isolated measurements that standard passive probes are not designed for.

Q: Is a 50 MHz high-voltage differential probe enough, or should I buy a faster one?

A: A 50 MHz probe is usually enough for power-supply testing, inverter work, mains-related measurements, and many switching power electronics tasks. It is less suitable if you need to analyze very fast edges, higher-frequency digital signals, or wide-bandgap switching behavior where 100 MHz or higher probes may preserve more detail. The trade-off is that higher-bandwidth probes are often more expensive and may have lower voltage range.

Q: Is this a better choice than using two standard probes and math subtraction?

A: Yes, for high-voltage floating measurements, a dedicated differential probe is usually the better and safer choice. Two standard passive probes with channel subtraction can work for some low-risk differential measurements, but they do not provide the same isolation behavior, common-mode rejection, or safety margin expected for high-voltage work. If your main use case is power electronics or mains-referenced switching nodes, a true differential probe is the more appropriate tool.

Q: What is the main trade-off versus a lower-voltage or lower-cost differential probe?

A: The main advantage here is voltage capability: this model is positioned for very high differential voltage measurements with 100X and 1000X attenuation options. The trade-off is that probes built for higher voltage often prioritize range and safety over maximum bandwidth or fine low-level sensitivity. If you mostly measure lower-voltage fast-switching signals, a lower-voltage 100 MHz or 200 MHz differential probe may show more waveform detail, while this type of probe is a better fit when voltage headroom matters more.

Q: Who is the PT-5160L actually suitable for?

A: It is best suited to users who need to measure high-voltage differential or floating signals on a standard oscilloscope, such as power electronics, mains-referenced circuits, inverter outputs, and similar lab or R&D work. It is less suitable as a general-purpose everyday probe, because its 100X/1000X attenuation and 50 MHz bandwidth are optimized for high-voltage safety and isolation rather than low-level, convenience-oriented bench measurements.

Q: Is the PT-5160L worth buying instead of using two standard probes and math mode?

A: Yes, if your main need is safer and cleaner measurement of high-voltage differential signals. Community discussions repeatedly treat a real differential probe as the better choice when two passive probes plus math mode are inaccurate, inconvenient, or risky around mains or floating nodes. The trade-off is cost and lower general-purpose flexibility compared with ordinary probes.

Q: Will the PT-5160L work with most oscilloscopes?

A: Usually yes, if your oscilloscope accepts a standard BNC probe input and the probe's output range fits the scope input. The PT-5160L is described as using a standard BNC interface and converting high differential voltage down to a scope-readable low-voltage signal. Buyers should still confirm their scope input expectations and setup, especially attenuation settings and measurement range.

Q: What are the main trade-offs of choosing the PT-5160L?

A: The main advantage is high-voltage differential measurement capability with isolation from scope ground, which is useful for safer probing of floating or mains-related circuits. The trade-offs are that it is not the best choice for very low-voltage detail work, it adds heavy attenuation at 100X/1000X, and its 50 MHz bandwidth makes it more appropriate for power and industrial signals than for higher-speed digital debugging.

Q: Can the PT-5160L still be used for lower-voltage measurements?

A: Yes, but it is usually not the most practical choice unless you specifically need differential isolation. Community discussion suggests high-voltage differential probes can measure lower voltages if the scope and attenuation are set correctly, but for routine low-voltage bench work a standard passive probe or a lower-attenuation differential probe is often the simpler option.
