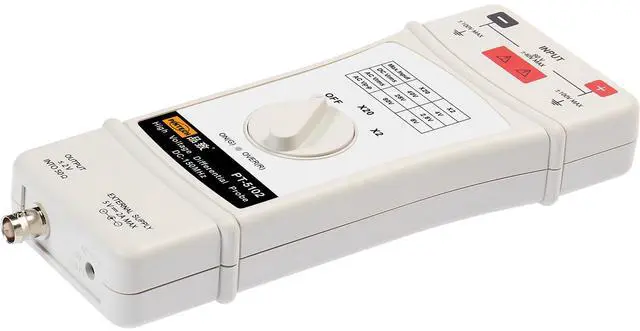

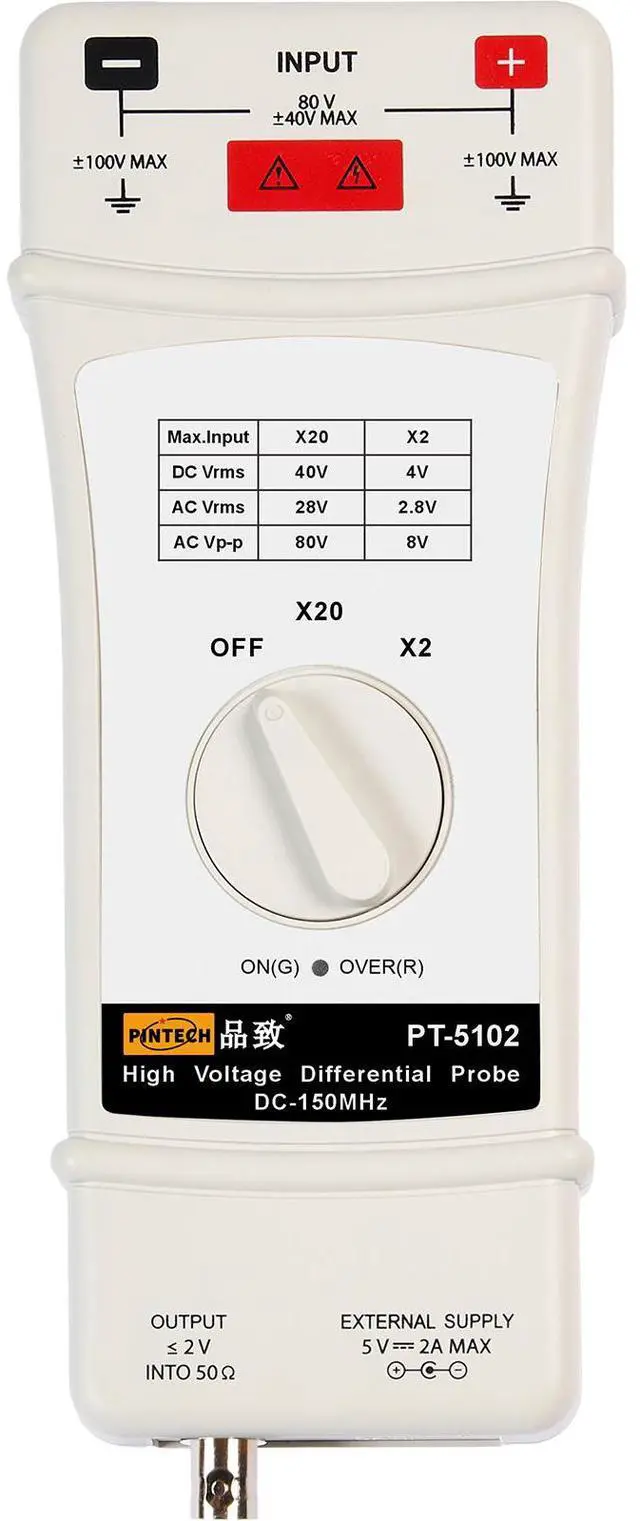

PINTECH High Frequency Differential Probes for Oscilloscope 80V, 150MHZ 2X/20X Attenuation Rate, Oscilloscope Probe with Standard BNC Interface, PT-5102
- Rise Time: 2.3ns. This differential probe measures signals with very fast rise times.
- DC-150MHz, Accuracy (Typical):±2%, Attenuation Ratio: 2X/20X.
- Maximum differential test voltage : 80Vp-p.
- Widely Used: The oscilloscope probe features BNC interface, compatible with all oscilloscopes.

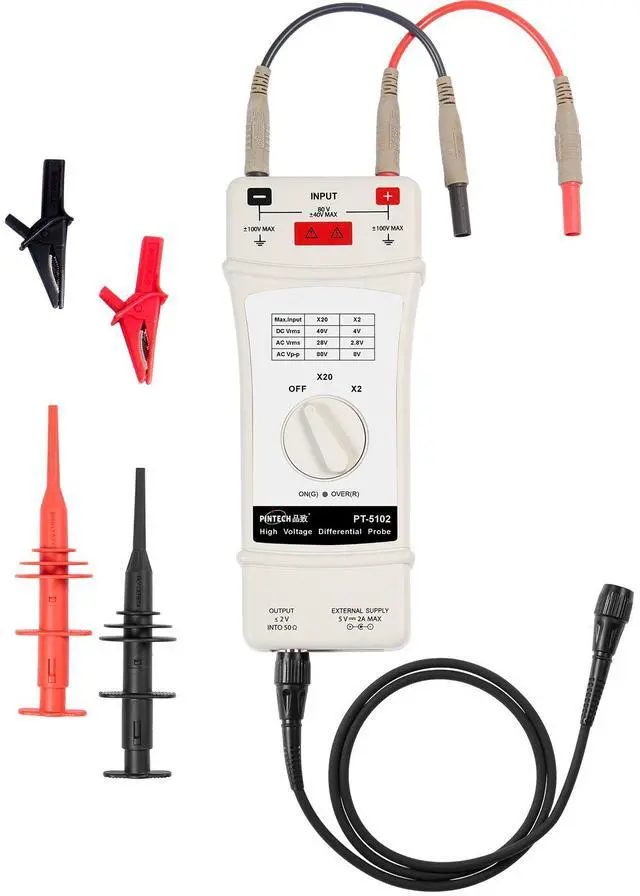

- Package Included: PT-5102 differential probe x 1, Adapter x 1, Probe Hook x 2, Alligator Clip x 2, BNC cable x 1, Dedicated Input Cable x 1, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

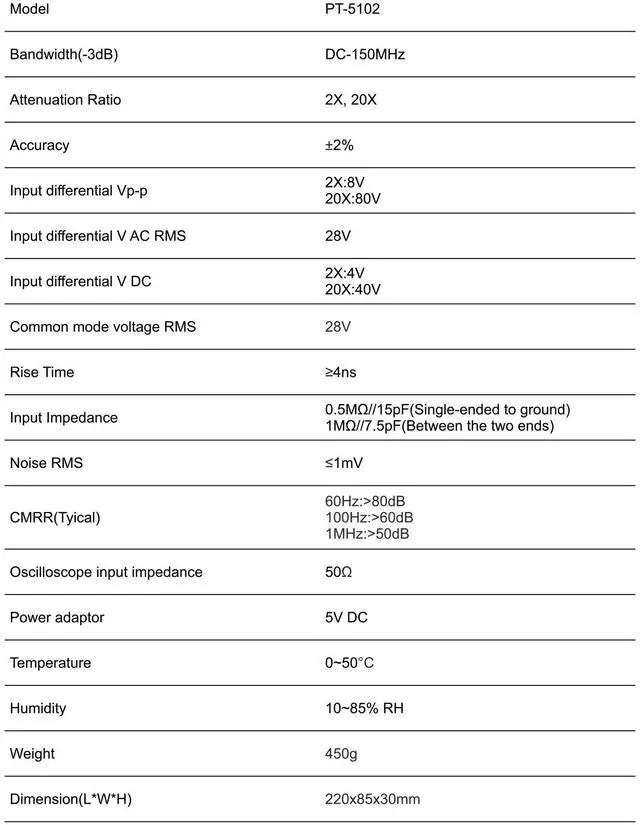

MODEL: PT-5102
Bandwidth (-3dB): DC-150MHz
Input AC Voltage(Vp-p): 2X: 8V; 20X: 80V
Input DC Voltage: 2X: 4V; 20X: 40V
Attenuation Rate: 2X/20X
Rising Time: 2.3ns
Accuracy: ±2%
Input Impedance: Between the two ends: 1M//7.5pF, Single-ended to ground: 0.5M//15pF
CMRR: 60Hz:>80dB; 100Hz:>60dB; 1MHz:>50dB
Oscilloscope Input Impedance: 50M
Noise: 1mV rms
Weight: 450g/0.99lb
Dimension(LxWxH): 220x85x30 mm
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH PT-5102 is a 150MHz differential oscilloscope probe with 2X/20X attenuation and up to 80Vp-p differential measurement, making it well suited for engineers, technicians, and electronics labs that need fast signal probing through a standard BNC oscilloscope connection.
Recommended For
- Engineers and technicians measuring floating, non-ground-referenced nodes on bench oscilloscopes, such as switch-mode power supplies, inverters, or motor-drive subcircuits that stay within the probe’s low-voltage range. Differential probes are commonly used for this job because standard scope grounds can create unsafe or invalid measurements, and PINTECH positions the PT-5102 as a high-sensitivity differential probe for power testing and R&D.
- Lab users who need better visibility into fast low-voltage differential waveforms than a two-passive-probes-plus-math setup usually gives, especially when common-mode noise is present. Community discussions regularly point out that true differential probes improve signal fidelity and avoid consuming two scope channels.
- R&D benches that already have 50 ohm-capable oscilloscope inputs and want a brand-agnostic BNC differential probe rather than a probe locked to one scope ecosystem. The PT-5102 manual specifies 50 ohm oscilloscope input use, and community guidance treats BNC differential probes with external power as broadly reusable across scopes that support that input mode.
- Users doing low-voltage power-rail, shunt, ripple, or control-signal work who need a high-sensitivity differential probe instead of a high-attenuation high-voltage model. PINTECH explicitly places the PT-5102 in its high-sensitivity tier, and community discussions show demand for differential probes aimed at low-voltage measurement rather than only mains-class work.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Differential oscilloscope measurements and general electrical testing & measuring tasks where a dedicated probe is needed for bench or field troubleshooting |
| Model Identifiers | PINTECH PT-5102 differential probe |
| Product Type | Electrical Testing & Measuring equipment |
| Physical Specifications | Dimensions 220 x 85 x 30 mm (compact benchtop probe form factor) |
| Measurement Accuracy | Typical accuracy ±2% |
| Certification And Compliance | CE certified |
| Selling And Packaging | Sold as an individual unit (Each) |
