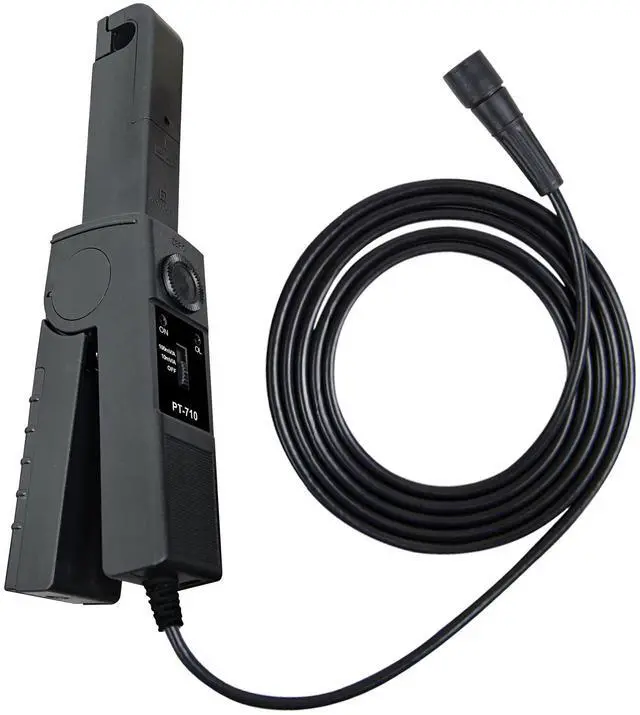

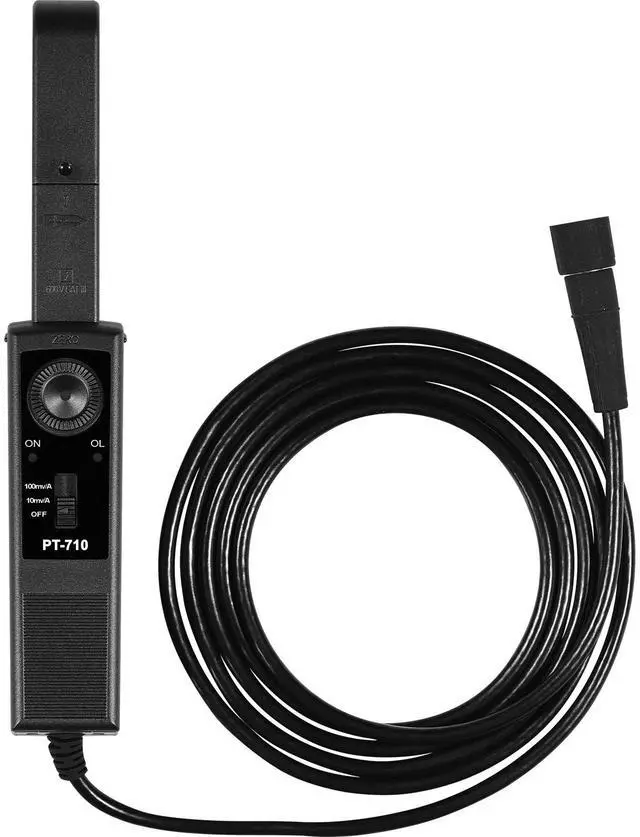

PINTECH AC/DC Current Clamp Probe for Oscilloscope 100kHz Bandwidth, 0.05A-10A, 10A-100A Test Range, Current Probe with BNC Connector, PT-710

Be the first to review this product...

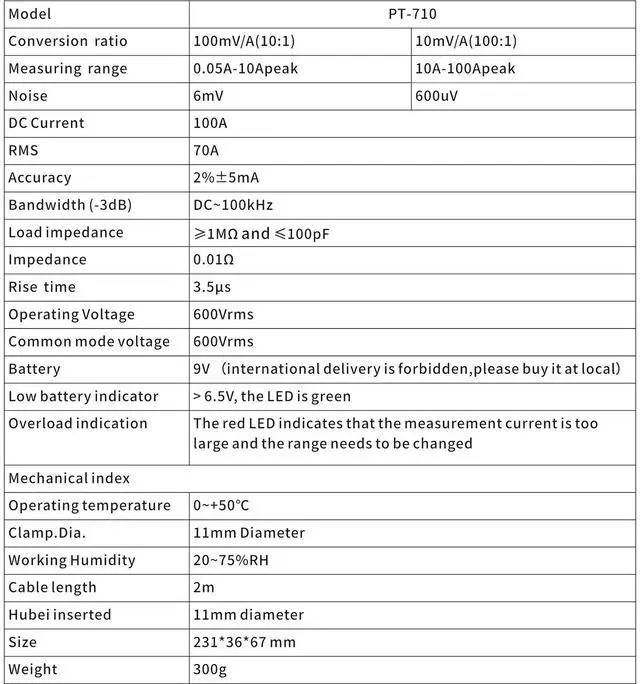

  • Test Range: PINTECH PT-710 current clamp measure currents between 0.05A and 100A. RMS value can be measured with AC/DC signals.
  • The current probe is designed according to Faraday's principle, measuring magnetic ring of a wire's interfering current signal.
  • PINTECH AC/DC current probe's bandwidth up to 100KHz, ±2%+5mV accuracy, featuring with low battery indication, low noise level, and high detection accuracy.

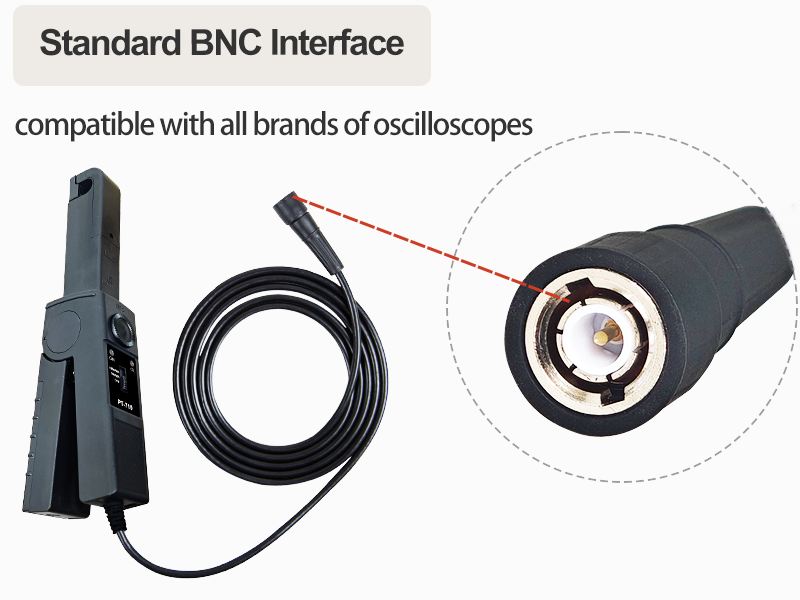

  • Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes. With a MT-246N adapter, the probe can also be used for multimeter.
  • The DC/AC current probe meter is small and delicate, easy to carry, can be widely used in motor drive, power frequency, inverter, power supply and avionics.
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
LOGO
AC/DC Current Clamp Probe for Oscilloscope

The measurement range can reach up to 100A, capable of measuring RMS values for AC/DC signals.

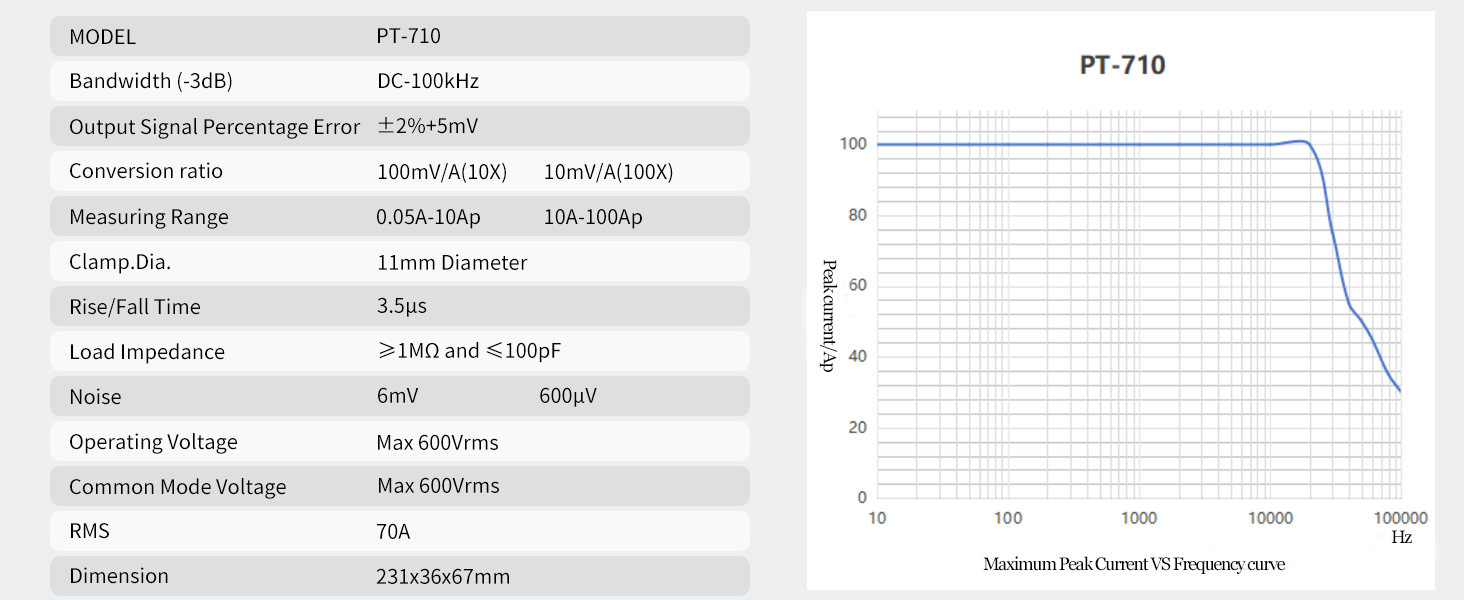

parameter
BNC
Applications
  • Switching Power Supply
  • Motor Driver
  • Electronic Rectifier Meter
  • LED lighting
  • New Energy

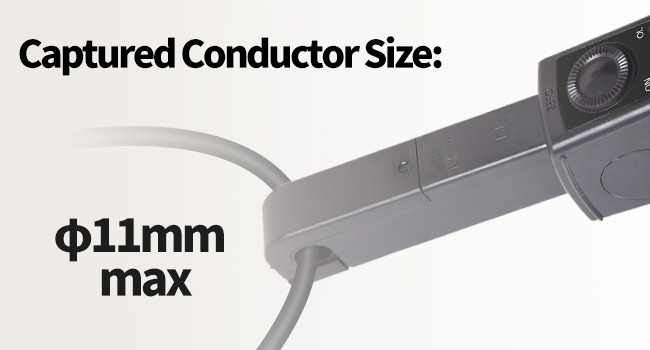

features
Features

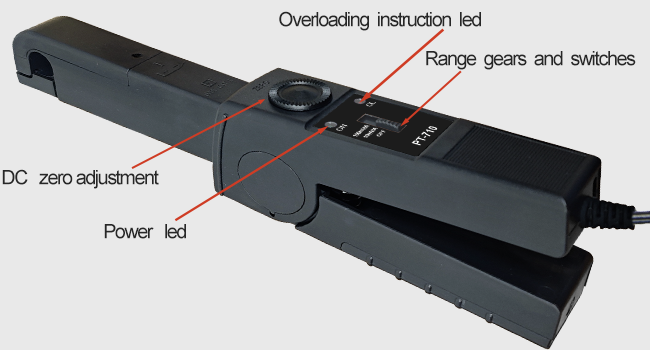

  • Zero adjustment: With the probe unloaded, rotate to adjust the current probe output to zero. Zero adjustment is not required when measuring AC values unless your equipment can't separate the DC portion.
  • Note: When testing AC/DC, DC zero adjustment is required for each range change.
detail
Features
  • Overload Indication: When the measured current is too high, the indicator light turns red, indicating that the range needs to be changed.
  • Battery Level Indicator: When voltage is > 6.5 V, the indicator light is green. A flashing green light indicates the battery needs replacement.
