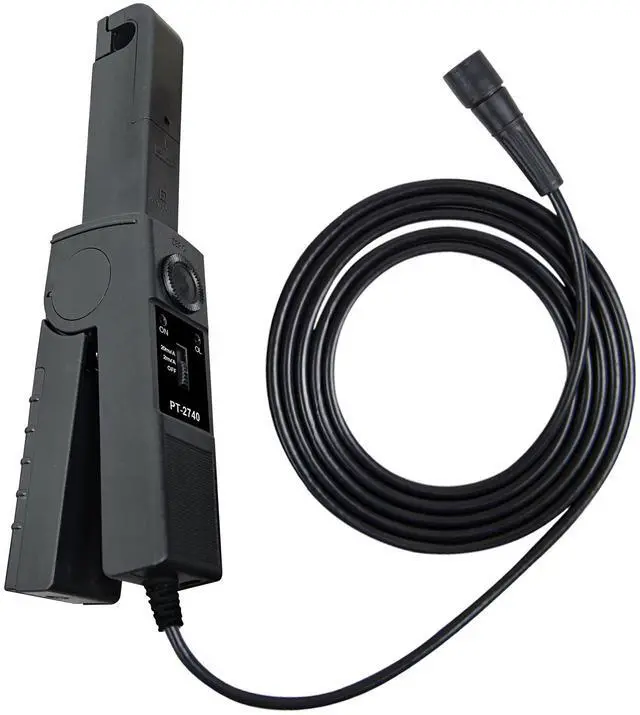

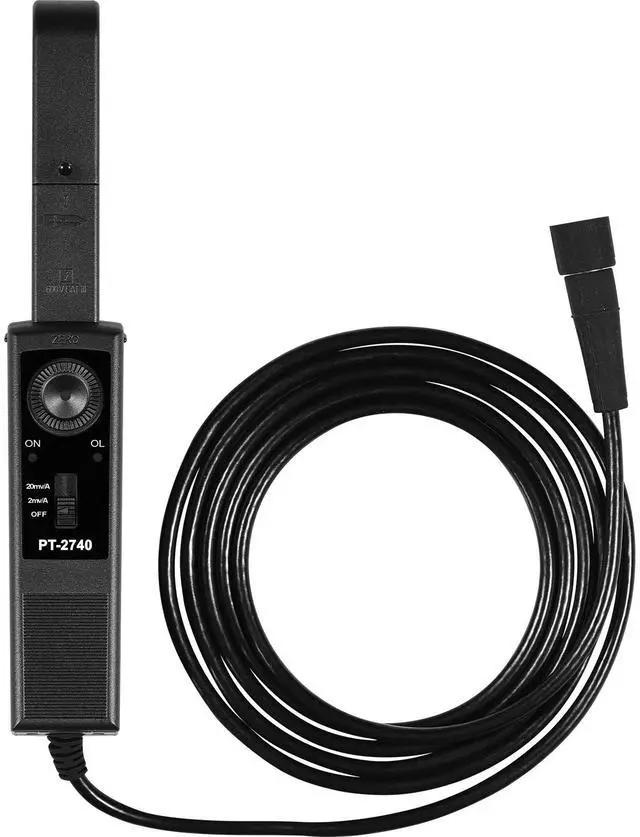

PINTECH AC/DC Current Clamp Probe for Oscilloscope 300kHz Bandwidth, 2A-60A, 60A-500A Test Range, Current Probe with BNC Connector, PT-2740

  • Test Range: PINTECH PT-2740 current clamp measure currents between 2A and 500A. RMS value can be measured with AC/DC signals.
  • The current probe is designed according to Faraday's principle, measuring magnetic ring of a wire's interfering current signal.
  • PINTECH AC/DC current probe's bandwidth up to 300KHz, ±2%+5mV accuracy, featuring with low battery indication, low noise level, and high detection accuracy.
  • Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes. With a MT-246N adapter, the probe can also be used for multimeter.
  • The DC/AC current probe meter features with low phase shift, ensurings accurate voltage output for power measurements.
+
+
Overview
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

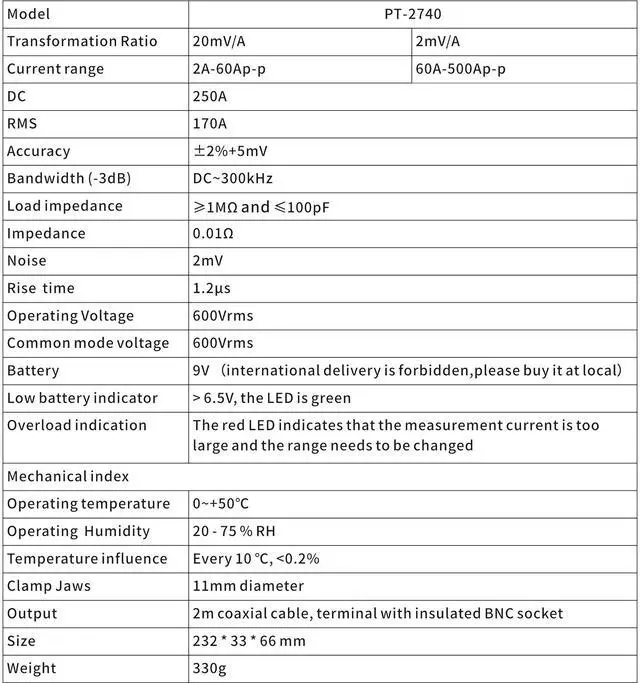

MODEL: PT-2740


Bandwidth (-3dB): DC-300kHZ


Transformation Ratio: 20mV/A; 2mV/A


Current Range: 2A-60Ap-p; 60A-500Ap-p


DC: 250A


RMS: 170A Accuracy: ±2%+5mV


Load Impedance: 1 M and 100 p F


Impedance: 0.01


Noise:2mV


Rise Time: 1.2s


Operating Voltage: Max 600 Vrms Common Mode Voltage: Max 600 Vrms


Battery: 9V(NOT INCLUDED)


Low Battery Indication: >6.5V, LED is green


Overload Indication: The red LED indicates that the measured current is too high and that the measuring range needs to be changed


Max Clamp Diameter: 11mm/0.43in


Output: 2m coaxial cablem, terminated with insulated BNC socket


Size: 232 x 36 x 67 mm


Weight: 330g/0.73lb

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
  • CONTACT

Return Policies

Manufacturer Contact Info

LOADING...

The PINTECH PT-2740 is an AC/DC current clamp probe for oscilloscopes, built for technicians, electronics labs, and engineers who need non-intrusive current measurement from 2A to 500A with up to 300kHz bandwidth through a standard BNC connection.

Recommended For

  • Technicians and engineers who need to view AC and DC current waveforms directly on an oscilloscope when troubleshooting power electronics, motor drives, inverters, or general bench wiring up to hundreds of amps.
  • Bench users working on low- to mid-frequency power measurements who want a clamp-style probe that handles both DC content and waveform shape without breaking the circuit, especially on cable-level current paths rather than shunt-based setups.
  • Repair labs or field service users that already own a standard oscilloscope with BNC inputs and want to add current viewing capability without moving to premium current-probe systems.
  • Users measuring heavier cable currents in the tens to hundreds of amps range who need more headroom than small-signal current probes usually offer, while still keeping enough bandwidth for general power and control diagnostics.

Spec Summary

AttributeValue
Best ForMeasuring AC and DC currents (including RMS) for oscilloscopes and, with an adapter, multimeters; suited for power measurements and lab troubleshooting up to 300 kHz bandwidth and for currents from 2 A to 500 A, connects to oscilloscopes via a standard BNC interface
Model IdentifiersPINTECH PT-2740 current clamp probe (electrical testing & measuring)
Physical Dimensions232 x 33 x 66 mm
Accuracy And Certification±2% + 5 mV accuracy; CE certified
Selling UnitEach
