PINTECH AC/DC Current Clamp Probe for Oscilloscope 200kHz Bandwidth, 4000A, Zero Flux Current Probe with BNC Connector, PT-722
- Test Range: PINTECH PT-722 current clamp measure currents up to 4000A. 1000:1 ratio.
- High Precision: Zero flux current probes eliminate errors caused by core excess in DC measurements.
- Great Stability: The probe reduced insertion resistance, reducing the loading effect on the object to be measured, which can improve long-term stability of the current probe.
- Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.

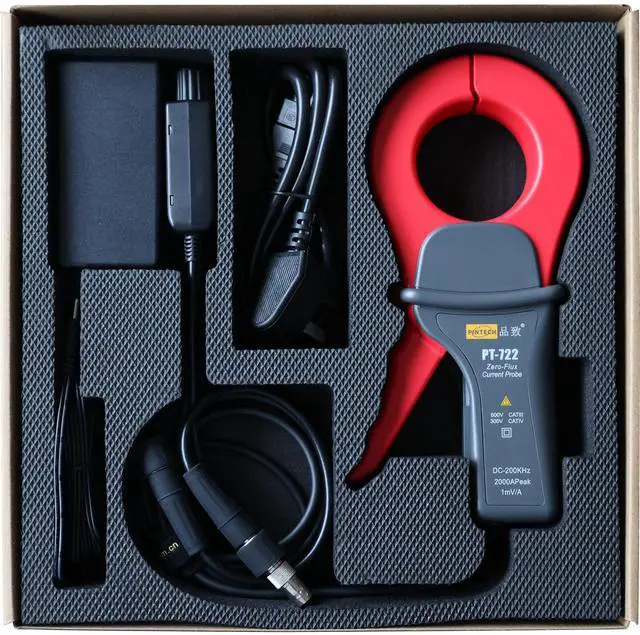

- Package Included: PT-722 AC/DC Current Probe x 1, Adaptors x 1, BNC Cable x 1, Power Cable x 1, Adapter x 1, Manual x 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
MODEL: PT-722
Bandwidth (-3dB): DC-200kHZ
AC Current: 4000Ap-p
Max Current: 1000A rms
DC Current: 2000A
Min Current: 500mA
Accuracy: 3%(Guaranteed); 1%(Typical)
Noise: 0.5mV
Temperature Drift/Zero Dift: <1mV
Auto-zero Accuracy:0.1mV
di/dt(Max): 40A/us
Load Impedance: 1M and 47pF
Coupling:AC/DC
Rise Time: 1.75s
Clamp Diameter: 52mm/2.05in
Ratio: 1mV/A(1000:1)
Size: 216 x 111 x 45 mm
Weight:650g/1.43lb
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH PT-722 is a zero-flux AC/DC current clamp probe for oscilloscopes, built for engineers, technicians, and lab users who need accurate measurement of high currents up to 4000A with broad compatibility through a standard BNC connection.
Recommended For
- Engineers and lab technicians measuring high-current DC plus ripple on power electronics, busbars, battery systems, welders, or industrial drives with an oscilloscope. The zero-flux design and AC/DC coupling fit use cases where DC accuracy matters and a shunt would be intrusive or impractical.
- Power-conversion developers troubleshooting SMPS, inverters, motor drives, and similar switching systems when they need to view current waveforms directly on a scope without breaking the circuit. Community discussions around scope current probes regularly center on this workflow.
- Industrial maintenance and validation teams working around large conductors where a clamp-on probe is easier than inserting a shunt or redesigning test access. The 52 mm jaw opening and 4000 A peak class are better aligned with cabinet, busbar, and heavy-equipment current checks than bench-level electronics.
- Users who need moderate waveform detail on high current rather than RF-class edge analysis. Around 200 kHz bandwidth suits many lower-frequency power and drive measurements, especially when the main goal is trend, ripple, or load-profile visibility rather than full switching-edge characterization.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | High-current AC/DC measurement tasks with oscilloscopes and electrical test benches—suitable for lab and field diagnostics and troubleshooting |
| Model Identifiers | PINTECH PT-722 clamp probe, sold individually |
| Physical Dimensions | Compact clamp-probe housing measuring 216 x 111 x 45 mm |
| Measurement Accuracy & Compliance | ±1% measurement accuracy; CE certified |
