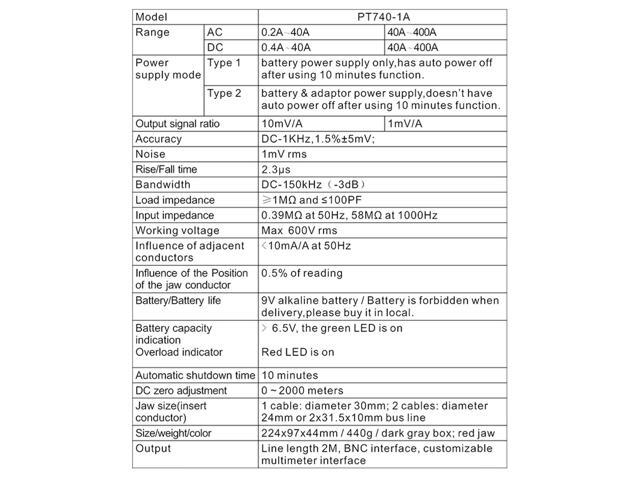

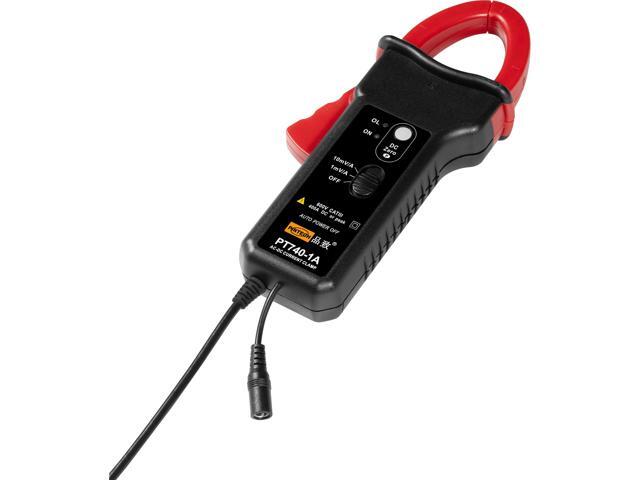

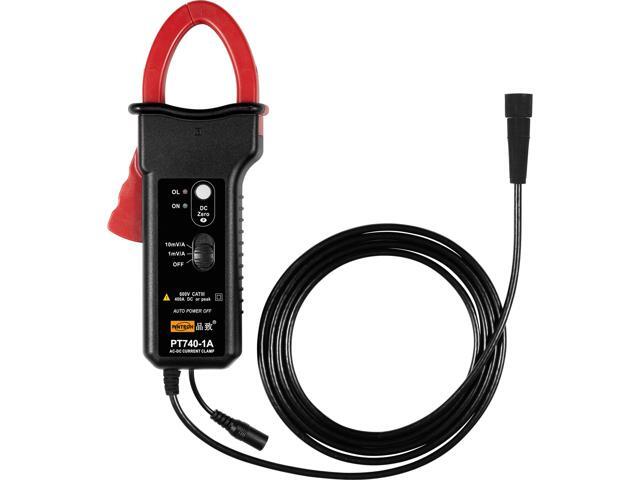

PINTECH AC/DC Current Probe Oscilloscope Probe 400A, 150kHz, 1mV/10mA, Current Clamp Meter with BNC Connector, PT740-1A
  • High accuracy oscilloscope current probe can measure 400A, maximum voltage 600V rms. Bandwidths up to 150KHz. The AC/DC Current Clamp are two current ranges available.
  • Peak Range: 0.2A to 40A, 40A to 400A.
  • DC Current Range: 0.4A to 40A, 40A to 400A.
  • Widely Used: The current probe features BNC interface, compatible with all oscilloscopes. The PT740-1A current clamp is also suitable for power measurements, measure RMS values in the presence of DC interference.
  • Package Included: PT740-1A AC/DC Current Clamp x 1, Adapter x 1, Manual x 1. NOTE: Default delivery to adapter-powered current probe, If you want battery-powered current probe, please contact us! BUT BATTERY NOT INCLUDED.
