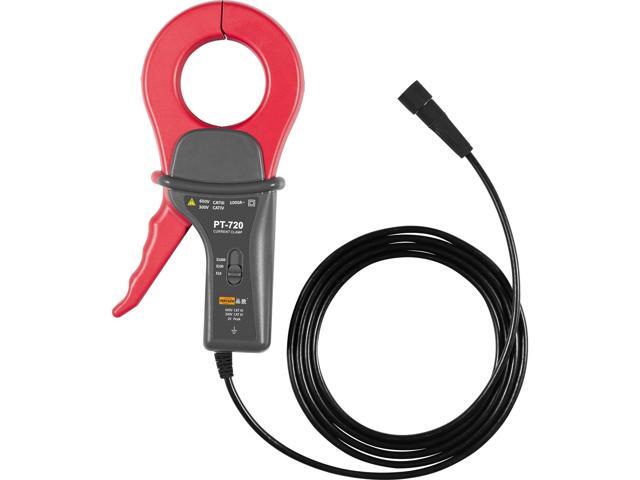

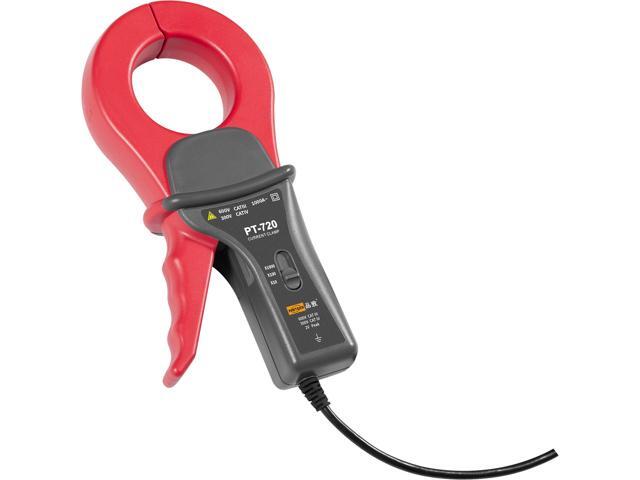

PINTECH AC Current Clamp Probe for Oscilloscope 100kHz Bandwidth, 10A/200A/2000A, High Precision Multimeter Current Clamp Meter with BNC Connector, PT-720

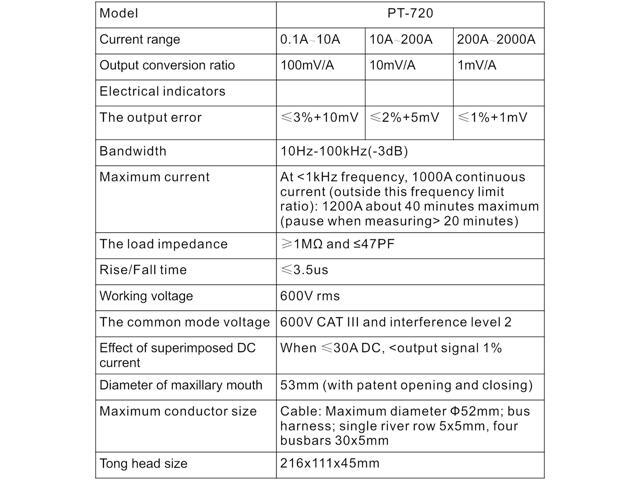

- Test Range: PINTECH PT-720 current probe meter measure current up to 2000A. Maximum working voltage up to 600V rms.
- The AC Current probe is 3 Current Range: 0.1A-10A, 10A-200A, 200A-2000A.
- Widely Used: The current clamp features with insulated BNC coaxial cable, compatible with all multimeters, meters, recorders, oscilloscopes, etc..
- High Frequency AC current probe PT-720 Bandwidth 10Hz-100kHz(-3dB). Rise time 3.5s.

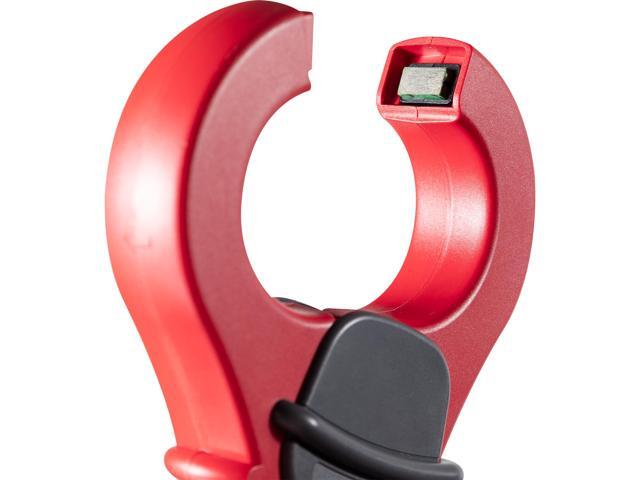

- Clamp Design: This AC current probe is designed in clamp shape, there is no need to disconnect the circuit under test, more convenient.
