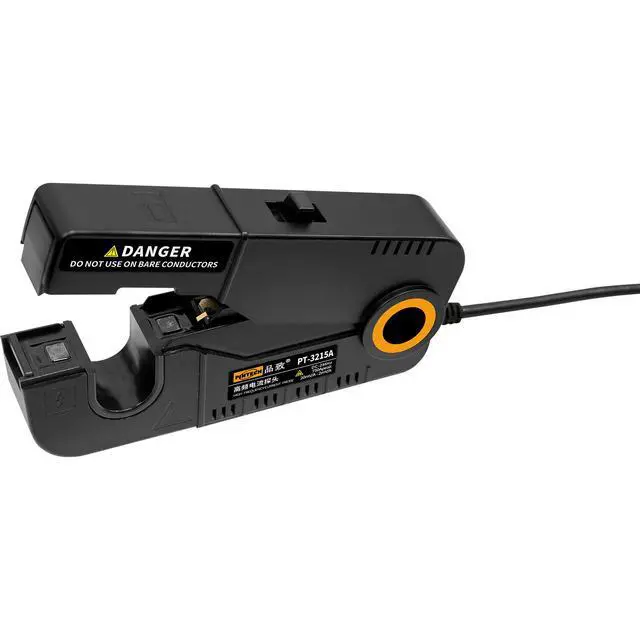

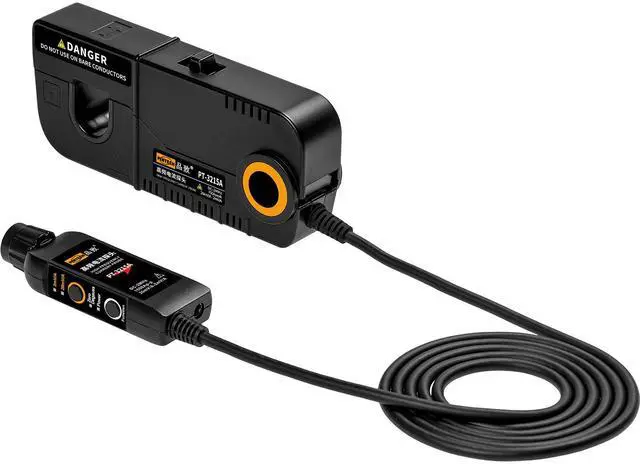

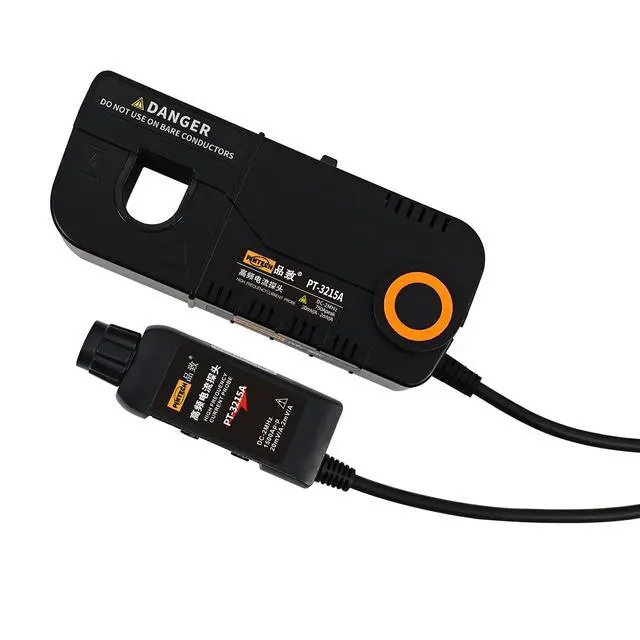

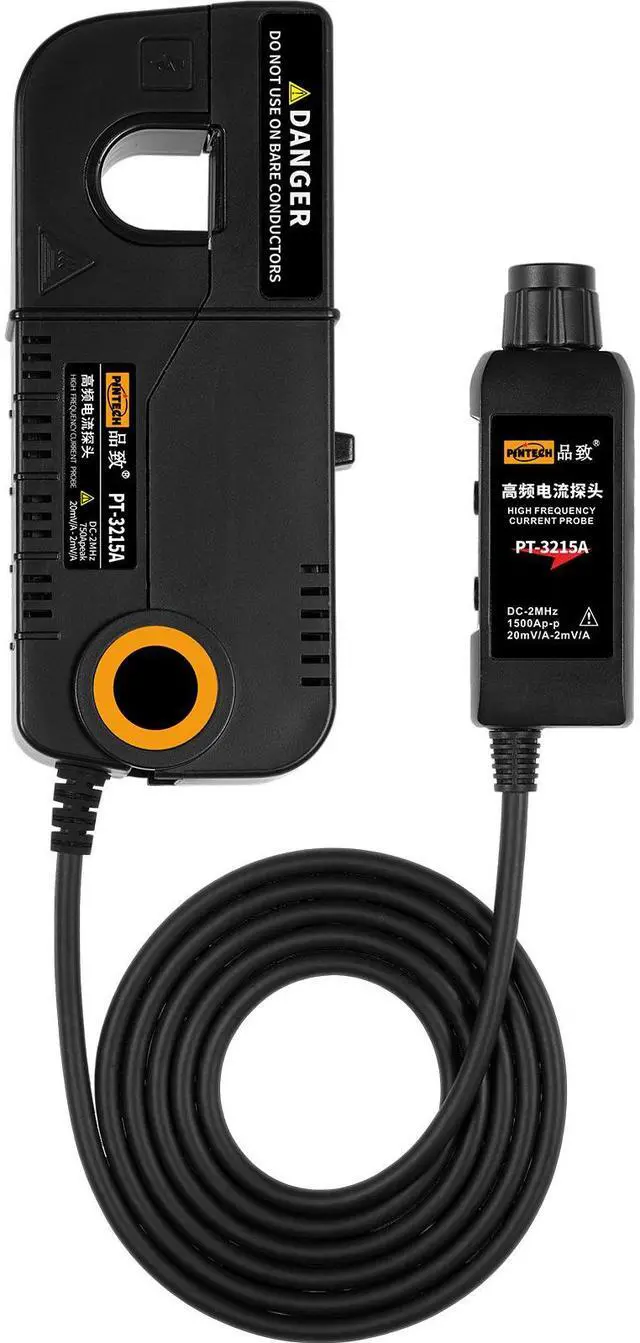

PINTECH Oscilloscope Probe High Frequency AC/DC Current Probe 1500A, 2MHz, 1% Accuracy Oscilloscopes Current Probe with Standard BNC Connector, PT-3215A
- High precision oscilloscope current probe can measure DC and AC. DC-2MHz Bandwidths, maximum current 1500A. Capturing waveforms accurately and rapidly.
- Accuracy: 1%. The diameter of the jaws is 0.79", can meet most testing needs.
- Widely Used: The current probe features BNC interface, compatible with all oscilloscopes.
- The high-frequency current probes use advanced magneto-electric sensors to achieve accurate measurement of current signals.
- Package Included: PT-3215A AC/DC Current Probe x 1, Adaptors X 1, BNC Cable x 1, Adapter x 1, Manual x 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

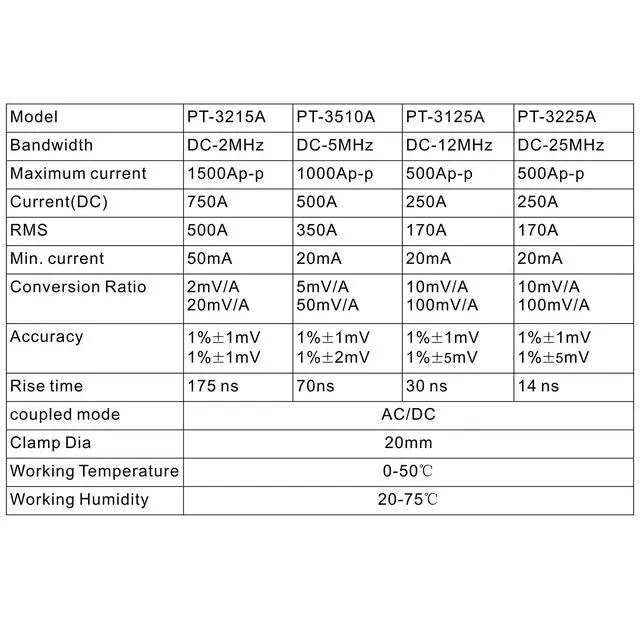

MODEL: PT-3215A

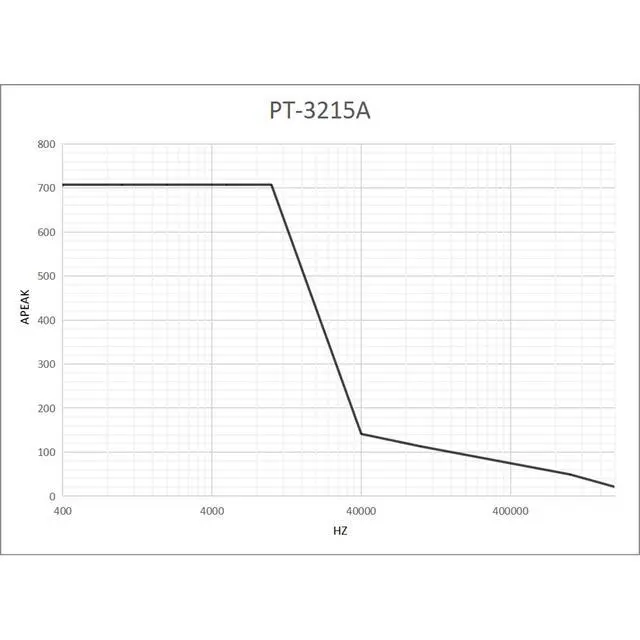

Bandwidth (-3dB): DC-2MHz
AC Current:250Ap-p; 1500Ap-p
DC Current:125A; 750A
RMS: 50mA; 500A
Accuracy: 1%±1mV
Transformation Ratio: 20mV/A(50:1); 2mV/A(500:1)
Noise:50mA rms
Rise Time:175ns
Coupling Method:AC/DC
Clamp Dia: 20mm
Weight: 500g/1.1lb
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH PT-3215A is a high-frequency AC/DC current probe for oscilloscopes, designed for engineers, technicians, and lab users who need to measure current waveforms up to 1500A with 2MHz bandwidth and BNC compatibility.
Recommended For
- Engineers and technicians who need to view AC and DC current waveforms on a standard BNC oscilloscope without breaking the circuit, especially during troubleshooting of motor drives, inverters, switching power supplies, and similar power electronics.
- Power electronics users working on higher-current systems who need an isolated clamp-style probe for bench diagnostics, where current levels are far above what inline shunts or low-current probes handle comfortably.
- Repair and validation workflows where the goal is to capture current profiles and transients on live conductors quickly, and probe convenience matters more than the absolute lowest noise floor.
- Users who already have a general-purpose oscilloscope with a high-impedance BNC input and want a third-party current probe rather than a proprietary scope-brand interface probe.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Technicians and engineers who use oscilloscopes for electrical testing and measurement and need a probe for AC and DC current signals |
| Model Identifiers | PINTECH PT-3215A current probe sold individually for electrical testing & measuring |
| Accuracy And Performance | Accuracy specified as ±1% + 1mV, appropriate for measurements requiring percent-level precision |
| Certifications | CE certified for applicable regional conformity |
