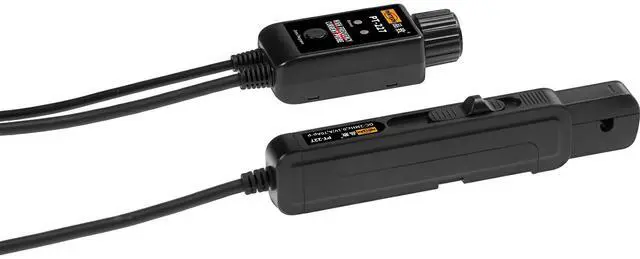

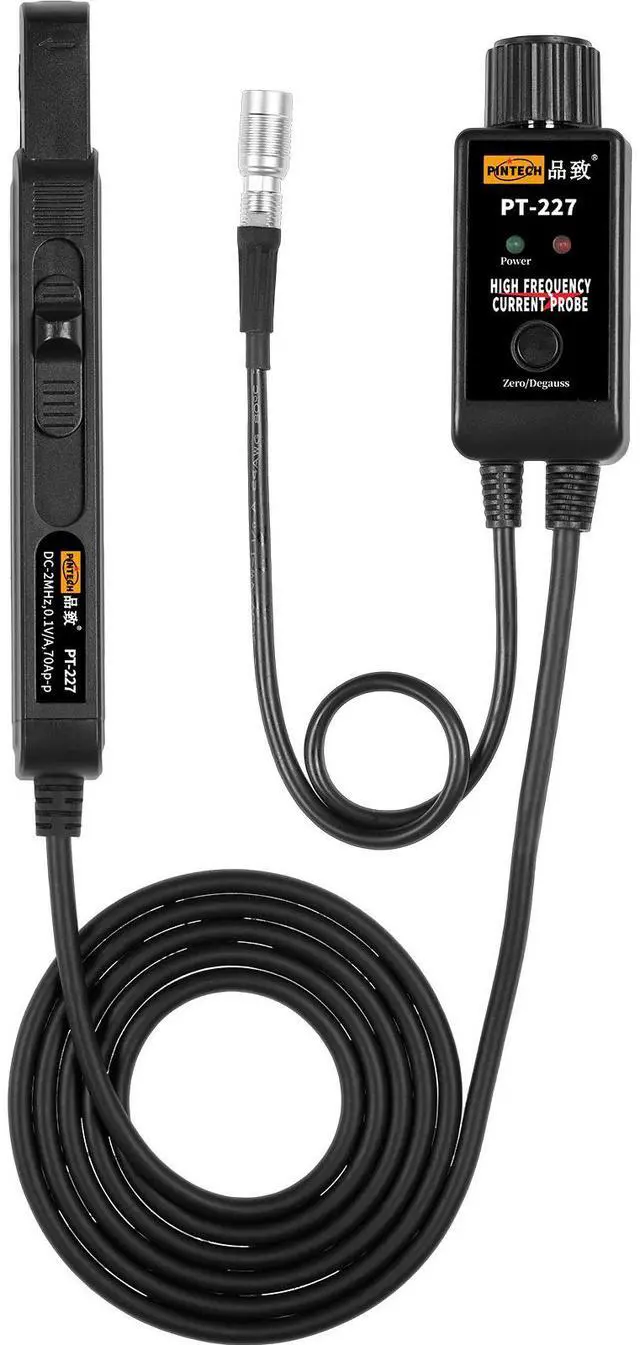

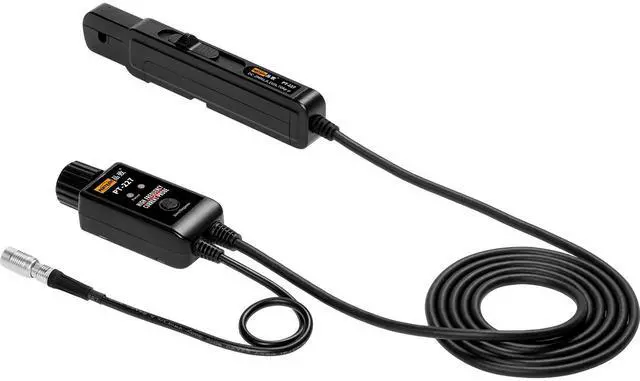

PINTECH Oscilloscope Probe High Frequency AC/DC Current Probe 70A, 2MHz, High Precision Oscilloscopes Current Probe with Standard BNC Connector, PT-227

  • High precision oscilloscope current probe can measure DC and AC. DC-2MHz Bandwidths, maximum current 70A. Capturing waveforms accurately and rapidly.
  • Accuracy: ±3%. The diameter of the jaws is 0.2", can meet most testing needs.
  • Widely Used: The current probe features with BNC interface, compatible with all oscilloscopes.
  • The high-frequency current probes use advanced magneto-electric sensors to achieve accurate measurement of current signals.
  • Package Included: PT-227 AC/DC Current Probe x 1, BNC Cable x 1, Grounding Wire x 1, Power Cable x 1, Adapter x 1, Manual x 1.
+
+
Overview
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

MODEL: PT-227


Bandwidth (-3dB): DC-2MHz


AC Current:70Ap-p


DC Current:35A


Maximum Current: 24A rms


Minimum Test Current: 20mA


Accuracy:±3%(Guaranteed); 1%±5mV(Typical)


Transformation Ratio: 0.1V/A


Noise:6mA RMS


Rise Time:175ns


Coupling Method:AC/DC


Clamp Dia: 5mm/0.2in


Weight: 450g/0.99lb

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
  • CONTACT

Return Policies

Manufacturer Contact Info

LOADING...

The PINTECH PT-227 is a high-precision AC/DC oscilloscope current probe for measuring up to 70A with DC-2MHz bandwidth, making it suitable for engineers, technicians, and lab users who need fast, accurate current waveform capture on BNC-compatible oscilloscopes.

Recommended For

  • Bench engineers and electronics technicians who need to view both DC and low-MHz AC current on an oscilloscope without breaking the circuit, such as checking power rails, motor-drive current, or converter startup behavior.
  • Power electronics users working on SMPS, inverter, battery, or industrial control circuits who want a clamp-style probe for waveform inspection up to the probe's DC-2 MHz bandwidth and do not need higher-RF current analysis.
  • Lab users with standard oscilloscopes that accept BNC inputs and need a general-purpose current probe that can be moved between scopes more easily than brand-locked probe ecosystems.
  • Repair and diagnostics users who need non-intrusive current tracing on single conductors, especially when a small 5 mm jaw opening is enough for the wire sizes they usually probe.

Spec Summary

AttributeValue
Best ForTechnicians and engineers using oscilloscopes and test equipment to measure AC and DC current signals on bench or field tests
Model IdentifiersPINTECH PT-227 current probe
Physical DimensionsCompact probe body measuring 144 × 17 × 29 mm
Accuracy And MeasurementMeasurement accuracy specified as ±1% + 5 mV, for evaluating precision of current measurements
Standards/CertificationsCE certified
