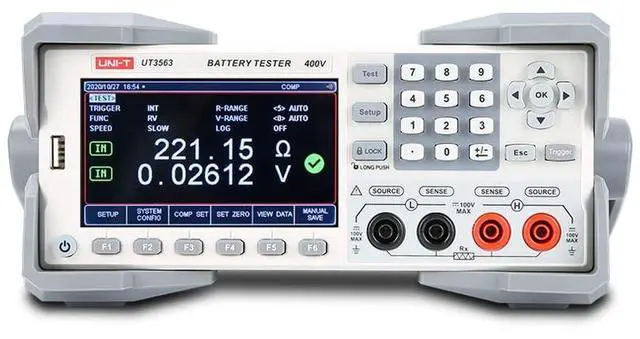

UT3562 UT3563 Battery Internal Resistance Tester Battery Detection high-Precision Lithium Battery Internal(UT3563)

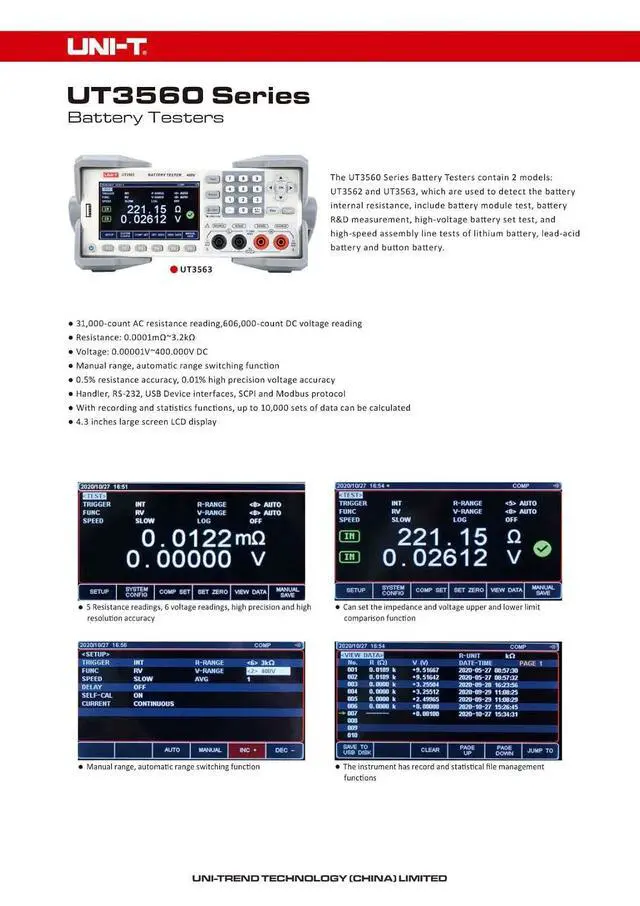

- The UT3560 Series Battery Testers contain 2 models: UT3562 and UT3563, which are used to detect the battery internal resistance, include battery module test, battery R&D measurement, high-voltage battery set test, and high-speed assembly line tests of lithium battery, lead-acid battery and button battery.

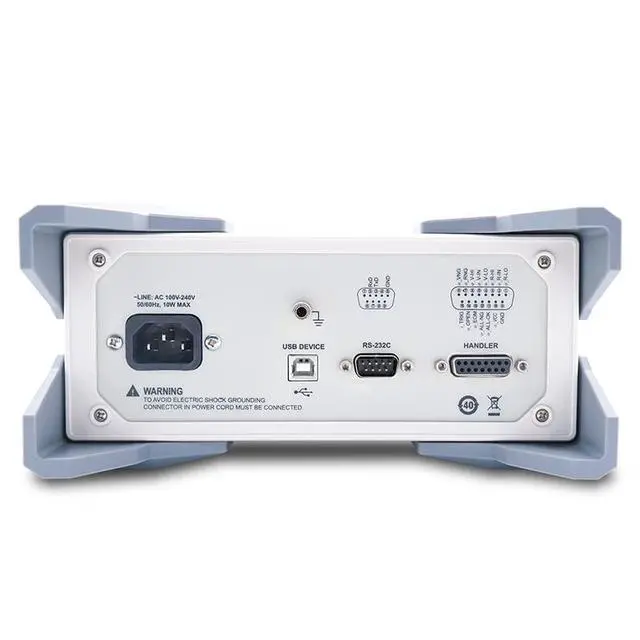

- 100V/400V VOLTAGE RANGE 3k RESISTANCE RANGE Resistance: 0.5%, Voltage: 0.01% ACCURACY Handler, RS-232,USB CONNECTIVITY ½ 2U SIZE 4.3 inches DISPLAY

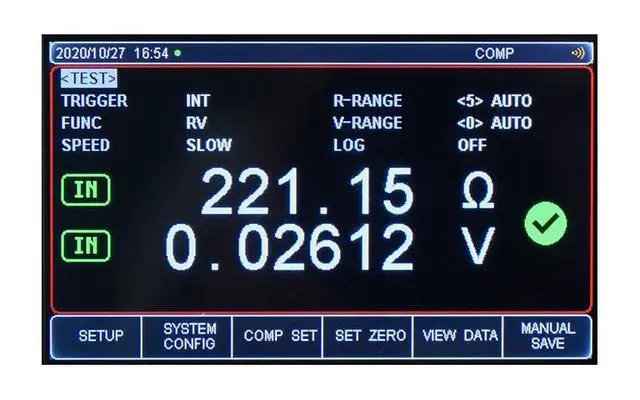

- 4.3 inch LCD screen display 4.3 inch LCD screen display Resistance test range: 0.0001m~3.2000k
- Voltage test range: 0.00001V~400.000 VDC

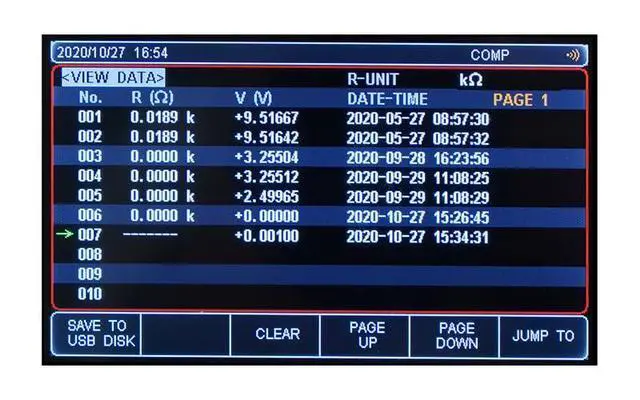

- Optional Range mode and Data storage Optional automatic range, manual range test Manual range: 3m, 30m, 300m, 3, 30, 300, 3k omparator setting alarm function Special voltage and resistance upper and lower limit alarms, the alarms have sound and Hi/IN/Lo display respectively.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The UT3560 Series Battery Testers contain 2 models: UT3562 and UT3563, which are used to detect the battery internal resistance, include battery module test, battery R&D measurement, high-voltage battery set test, and high-speed assembly line tests of lithium battery, lead-acid battery and button battery.. 100V/400V VOLTAGE RANGE 3k
RESISTANCE RANGE Resistance: 0.5 %, Voltage: 0.01 % ACCURACY Handler, RS-232, USB CONNECTIVITY ½ 2U SIZE 4.3 inches DISPLAY. 4.3 inch LCD screen display 4.3 inch LCD screen display
Resistance test range: 0.0001 m~ 3.2000 k.
Voltage test range: 0.00001V ~ 400.000 VDC. Optional Range mode and Data storage Optional automatic range, manual range
test Manual range: 3m, 30m, 300m, 3, 30, 300, 3k omparator setting alarm function Special voltage and resistance upper and lower limit alarms, the alarms have sound and Hi/IN/Lo display respectively.
RESISTANCE RANGE Resistance: 0.5 %, Voltage: 0.01 % ACCURACY Handler, RS-232, USB CONNECTIVITY ½ 2U SIZE 4.3 inches DISPLAY. 4.3 inch LCD screen display 4.3 inch LCD screen display
Resistance test range: 0.0001 m~ 3.2000 k.
Voltage test range: 0.00001V ~ 400.000 VDC. Optional Range mode and Data storage Optional automatic range, manual range
test Manual range: 3m, 30m, 300m, 3, 30, 300, 3k omparator setting alarm function Special voltage and resistance upper and lower limit alarms, the alarms have sound and Hi/IN/Lo display respectively.
