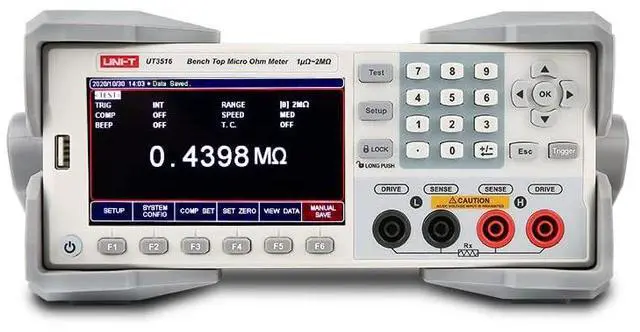

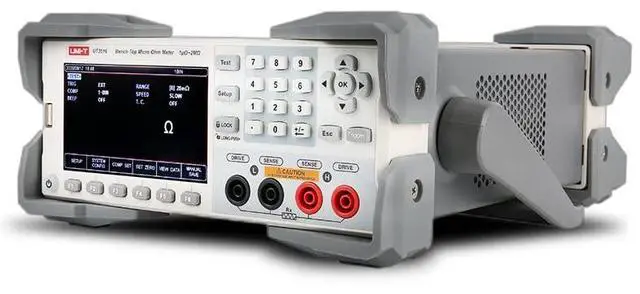

UT3513 UT3516 Micro Ohm Meter Digital DC Resistance Tester 1u-2M ohm Milliohmmeter Ohmmeter Micro Resistance Test(UT3513)

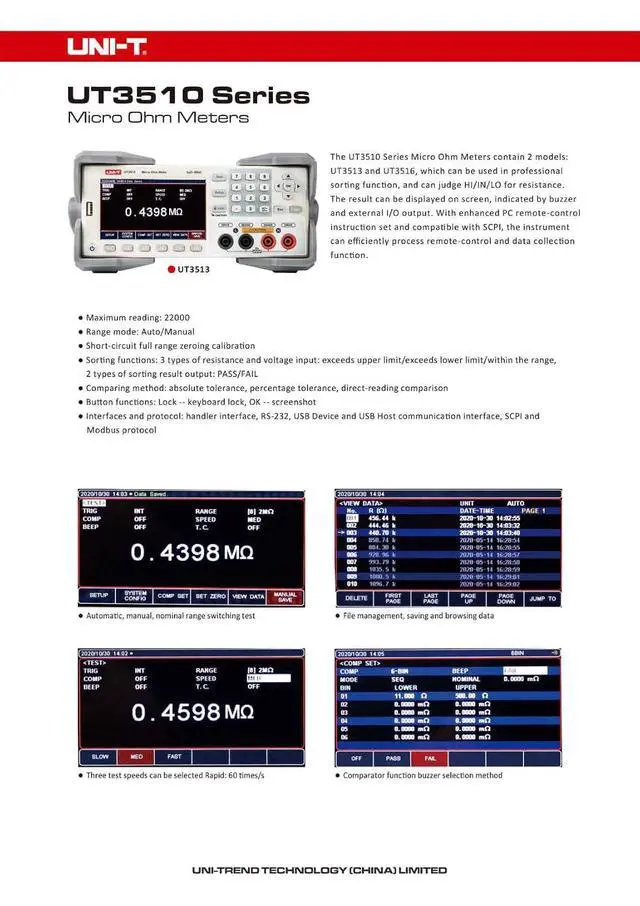

- The UT3510 Series Micro Ohm Meters contain 2 models: UT3513 and UT3516, which can be used in professional sorting function, and can judge HI/IN/LO for resistance. The result can be displayed on screen, indicated by buzzer and external I/O output.

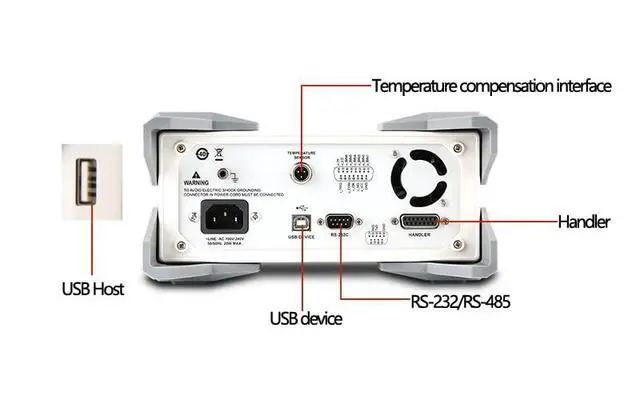

- With enhanced PC remote-control instruction set and compatible with SCPI, the instrument can efficiently process remote-control and data collection function. 20k/2M MEASURING RANGE 60 times/s MAX. TEST RATE HANDLERUSB,RS-232 CONNECTIVITY ½ 2U SIZE 4.3'' TFT LCD DISPLAY

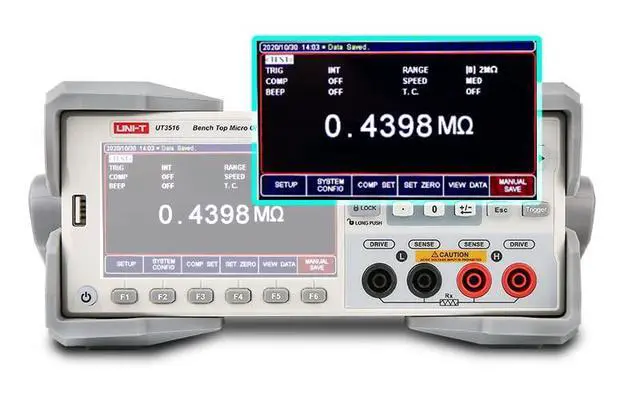

- 4.3 inch LCD screen display 4.3 inch LCD screen display 0.05% accuracy, with 20000 readings UT3513 resistance test range: 1~20k UT3516 resistance test range: 1~2M
- Range mode The instrument can realize automatic, manual, and nominal range test modes Optional test r speed Three test speeds: Slow speed: 3 times/sec. Medium speed: 18 times/sec. Fast: 60 times/sec.
- File management, saving and browsing data For the measured display value, it can be quickly browsed on the screen of the instrument after manual saving. File management allows users to save settings to 10 files, which is easy to read when starting up or changing specifications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The UT3510 Series Micro Ohm Meters contain 2 models: UT3513 and UT3516, which can be used in professional sorting function, and can judge HI/IN/LO for resistance. The result can be displayed on screen, indicated by buzzer and external I/O output.. With enhanced PC remote-control instruction set and compatible with SCPI, the instrument can efficiently process remote-control and data collection function. 20k/2M MEASURING RANGE 60 times/s MAX. TEST RATE HANDLERUSB, RS-232 CONNECTIVITY ½ 2U SIZE 4.3 '' TFT LCD DISPLAY. 4.3 inch LCD screen display 4.3 inch LCD screen display 0.05 % accuracy, with 20000 readings UT3513 resistance
test range: 1~20k UT3516 resistance
test range: 1~2M. Range mode The instrument can realize automatic, manual, and nominal range test modes Optional test r speed Three
test speeds: Slow
speed: 3 times/sec.
Medium speed: 18 times/sec.
Fast: 60 times/sec.. File management, saving and browsing data For the measured display value, it can be quickly browsed on the screen of the instrument after manual saving. File management allows users to save settings to 10 files, which is easy to read when starting up or changing specifications.
test range: 1~20k UT3516 resistance
test range: 1~2M. Range mode The instrument can realize automatic, manual, and nominal range test modes Optional test r speed Three
test speeds: Slow
speed: 3 times/sec.
Medium speed: 18 times/sec.
Fast: 60 times/sec.. File management, saving and browsing data For the measured display value, it can be quickly browsed on the screen of the instrument after manual saving. File management allows users to save settings to 10 files, which is easy to read when starting up or changing specifications.
