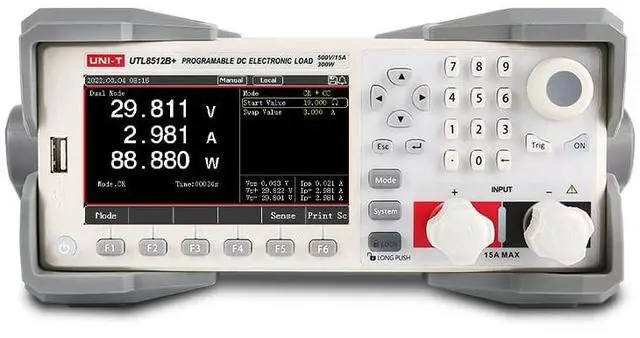

UTL8511/S UTL8512/S UTL8512B+ UTL8513 High-Precision Programmable DC Electronic Load Instrument Battery Capacity Internal Resistance Tester(UTL8512B+)

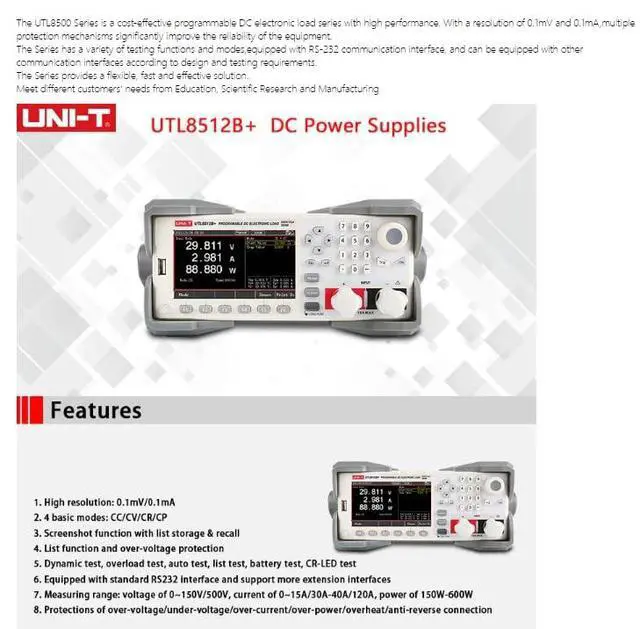

The UTL8500 Series is a cost-effective programmable DC electronic load series with high performance. With a resolution of 0.1 mV and 0.1 mA, multiple protection mechanisms significantly improve the reliability of the equipment. The Series has a variety of testing functions and modes,. equipped with RS-232 communication interface, and can be equipped with other communication interfaces according to design and testing requirements. The Series provides a flexible, fast and effective solution. Meet different customers' needs from Education, Scientific Research and Manufacturing. 4.3 inch LCD screen display 4.3 inch LCD screen display

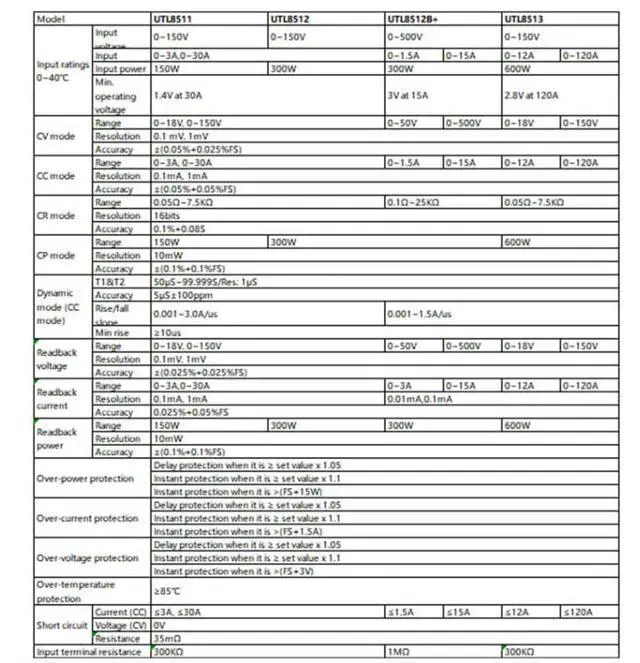

Resolution: 0.1 mV/ 0.1 mA
Voltage test range: 0~150V/500V Current
test range: 0~15A/30A/120A Power
test range: 0~150W/300W/600W. Four basic test modes

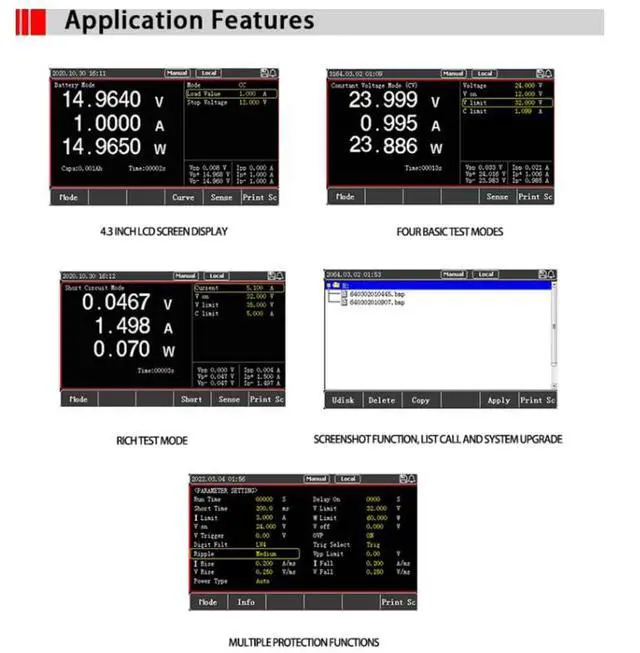

Four basic working modes: CC/CV/CR/CP Rich test mode In order to meet diversified test requirements, UTL8500 series electronic loads provide more test modes for users to choose, including dynamic test, list test, combination test, OCP/OPP test, CR-LED test, battery test. Screenshot function, list call and system upgrade Press the [Screenshot] button to save the current screen image to the USB flash drive, or save the frequently used list test files in Flash or USB flash drive, so that they can be called when needed next time, and the system can be upgraded quickly
