HX2 Handheld Thermal Imaging Camera Dual-Band Fusion with Visible Light, 240×320 IR Resolution, High-Resolution Thermal Imager, Electrical & Pipeline Inspection Tester

Parameter Details Parameter Details

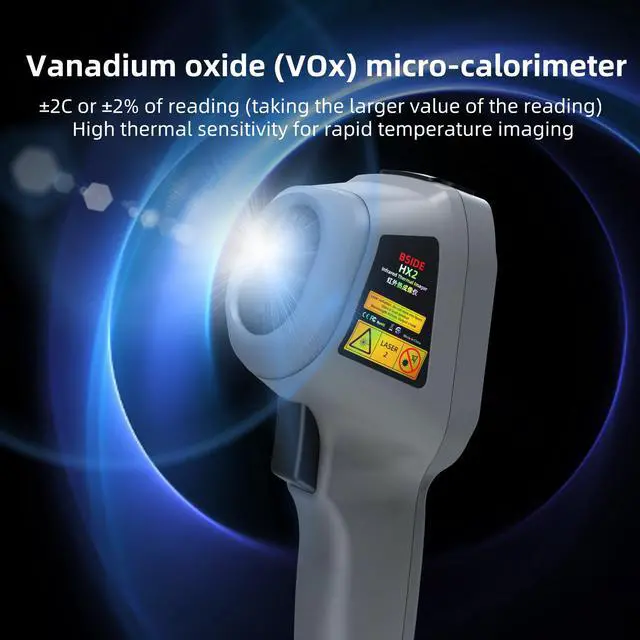

Sensor Type Vanadium oxide (VOx) microcalorimeter Laser Pointer Yes

Response Band 8 ~ 14m Temperature Alarm Screen font color alarm

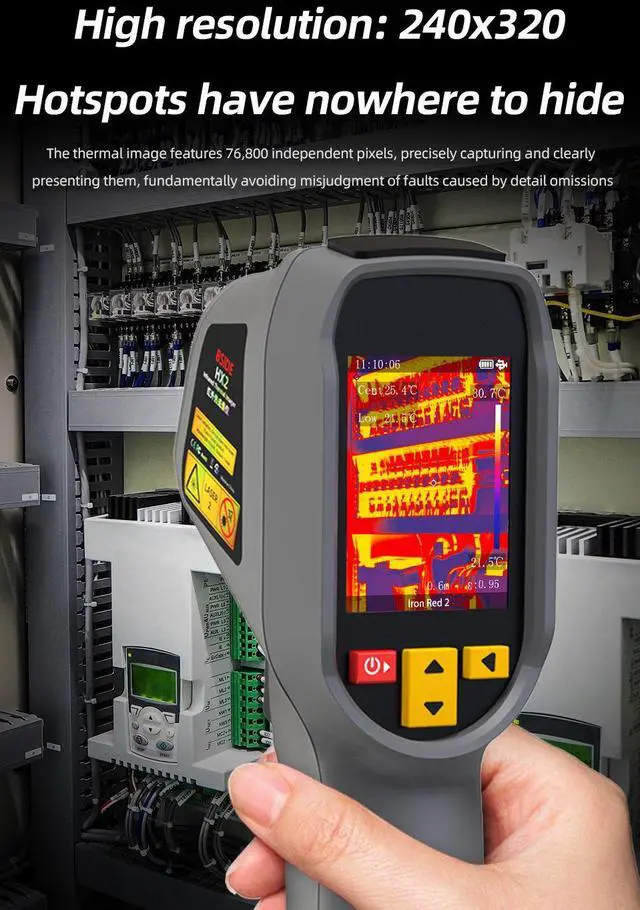

Thermal Image Resolution 240 × 320 pixels Image Storage Built-in memory card

NETD 50 mK (@25°C, F#1.0) Number of Image Files 26,000

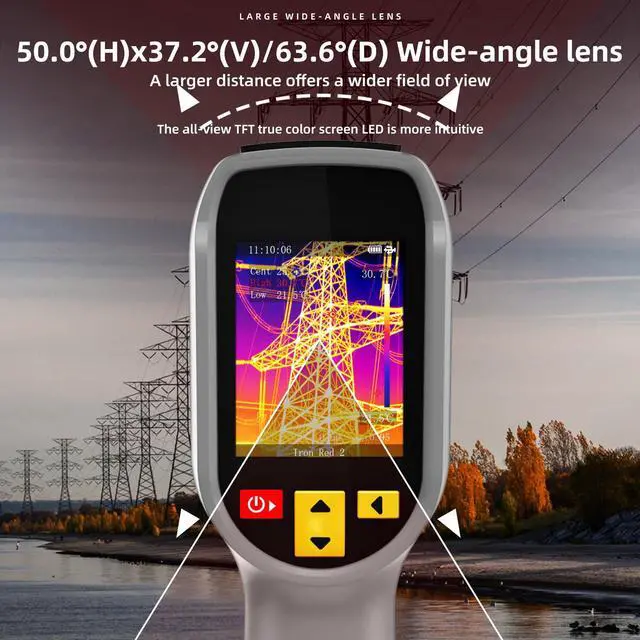

Field of View (FOV) 50.0°(H) × 37.2°(V) / 63.6°(D) Image Format BMP

Spatial Resolution (IFOV) 8.89 mrad Focus Mode Auto focusing

Frame Rate 25Hz Hardware Interface Type-C USB

Imaging Lens Focal Length 3.5 mm Battery Type Rechargeable lithium battery (3.7V / 2500mAh)

Temperature Measurement Distance 0.3m ~ 3m adjustable Battery Working Time >5 hours @ 25°C

Temperature Measurement Range -20°C ~ 550°C Charging Time <3 hours @ 25°C

Temperature Measurement Accuracy ±2°C or ±2% of reading (whichever is greater) Auto Power Off Disable (default) / Optional: 10, 20, 30, 40, 50, 60 min

Temperature Unit Celsius, Fahrenheit, Kelvin Operating Temperature -10°C ~ 50°C

Temperature Resolution 0.1°C Storage Temperature -40°C ~ 70°C

Emissivity 0.01 ~ 1.00 adjustable Working Humidity 85% RH (non-condensing)

Temperature Measurement Display Center point, high and low temperature tracking Drop Resistance 1.5m

Display 2.4-inch TFT LCD Product Dimensions 193.4 × 59.4 × 77.4 mm

Display Resolution 320 × 240 Product Weight 292.5g
