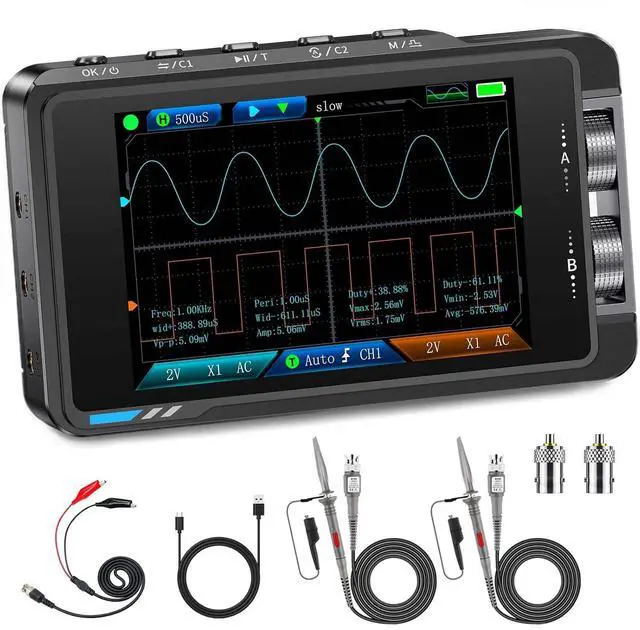

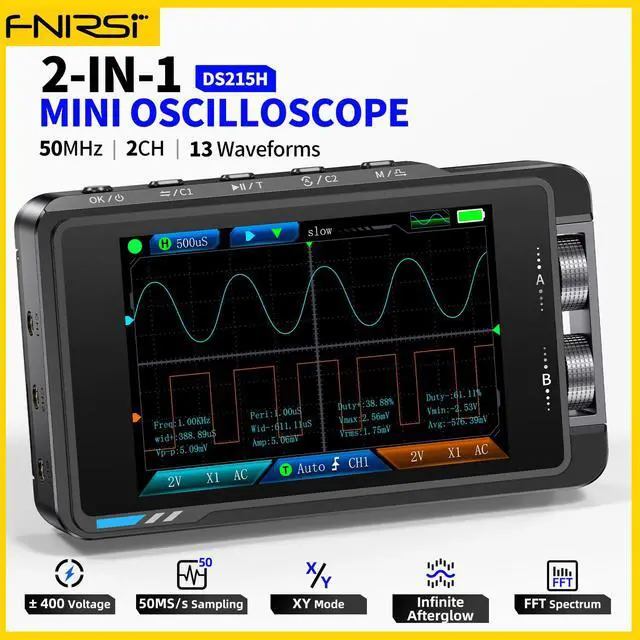

FNIRSI DS215H 2-in-1 Handheld Oscilloscope 50MHz, 2 Channel Digital Portable Oscilloscope DDS Signal Generator, 250MS/s Sampling, 1Kpts Record Length, 3.5-inch IPS Screen, Waveform Storage and Export

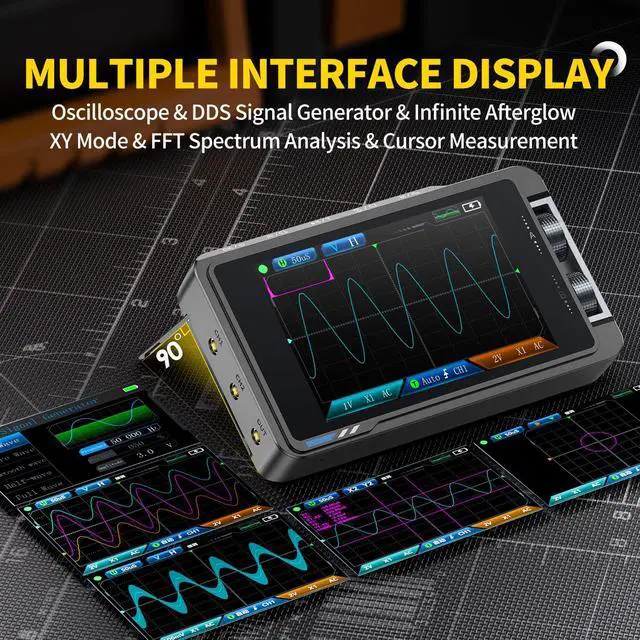

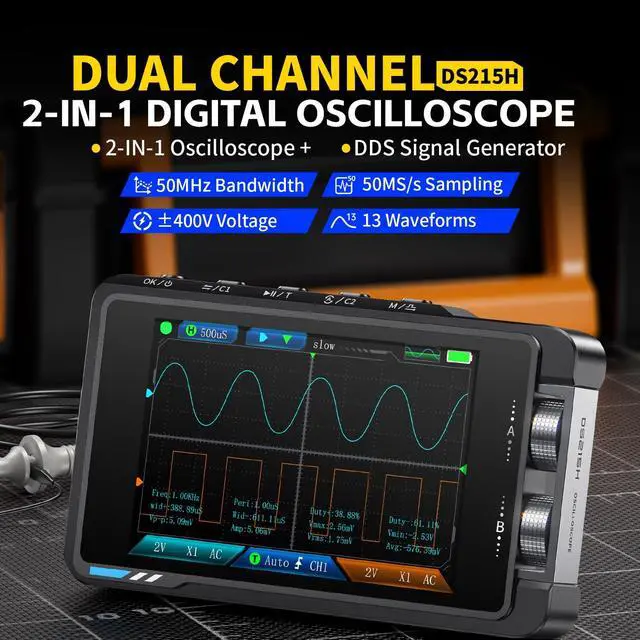

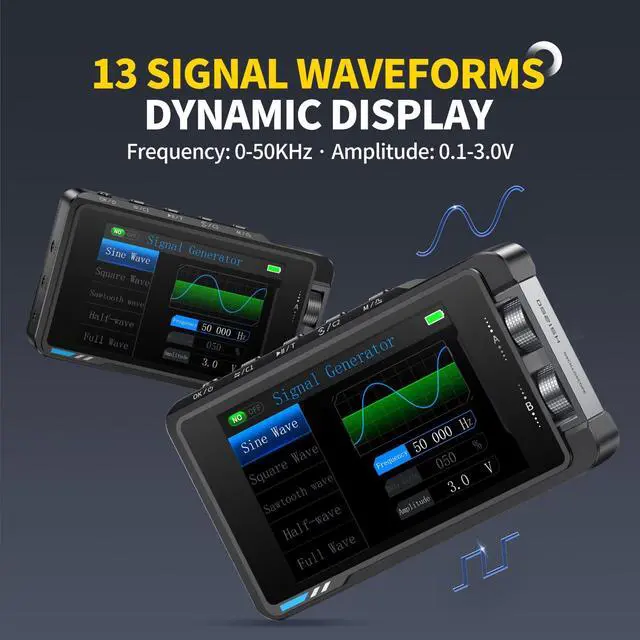

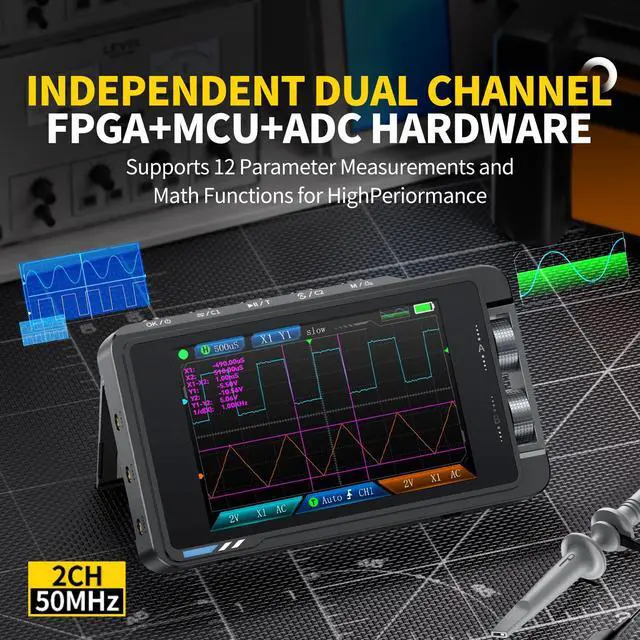

- 2-Channel OscilloscopeFNIRSI DS215H 2-in-1 handheld oscilloscope with 50 MHz bandwidth, 250 MS/s sampling, and 1 Kpts record length. FPGA + MCU + ADC architecture delivers stable, high-speed processing. Supports ±400V, waveform storage and export; Versatile FeaturesDigital oscilloscope supports X-Y / Y-T / Roll modes, cursor measurement, infinite persistence, 8 math functions, and FFT. Auto/Normal/Single triggers enable easy capture of complex waveforms for precise measurement and on-site analysis; DDS Signal GeneratorFNIRSI DS215H with 13 signal waveforms, 050 kHz frequency range, 0.1 V3.0 V amplitude, and 0100% duty cycle. Output parameters (frequency, amplitude, duty cycle) are adjustable, making it suitable for diverse testing requirements; User-FriendlyPortable oscilloscope with 3.5-inch IPS color display and adjustable brightness for clear viewing in various environments. Dual knobs and buttons enable fast, intuitive, and precise parameter adjustments for higher efficiency; Portable & DurableThis automotive oscilloscope is compact and lightweight, with a 1500 mAh rechargeable battery and Type-C charging. It supports auto power-off (off/15min/30min/1h), ideal for fieldwork and mobile use, and built for lasting durability
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Device
Display: 3.5 -inch IPS high-resolution color screen 2.
Backlight: Adjustable brightness 3.
Power Supply: Type-C (5V/1A) 4.
Battery Capacity: 1500 mAh 5.
Languages Supported: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean 6.
Dimensions: 66 × 110 × 19.5 mm 7.
Net Weight: 138 g Oscilloscope
Channels: Dual-channel 2.
Bandwidth: 50 MHz 3.
Real-Time Sampling Rate: 250 MSa/s 4.
Memory Depth: 14 Mpts 5.
Time Base Range: 20 ns/div 20 s/div 6.
Vertical Sensitivity: 10 mV/div 10 V/div 7.
Display Modes: Y-T, X-Y, Roll 8.
Vertical Resolution: 8-bit 9.
Impedance: 1 M 10.
Measurements: Period, Frequency, Peak-to-Peak Voltage, Maximum, Minimum, Average, RMS, Amplitude, Duty Cycle, Pulse Width 11.
Probe Attenuation Coefficient: 1X / 10X 12.
Input Coupling: AC / DC 13.
Trigger Types: Rising Edge / Falling Edge 14.
Maximum Input Voltage (Peak): ±400 V 15.
Trigger Level Range: 8 divisions 16.
Trigger Modes: Auto / Normal / Single Signal Generator
Output Waveforms: Multiple waveform types supported 2.
Frequency Range: 0 50 kHz 3.
Square Wave Duty Cycle: 0 100% 4.
Amplitude Range: 0.1 V 3.0 V
Specifications
1.Display: 3.5 -inch IPS high-resolution color screen 2.
Backlight: Adjustable brightness 3.
Power Supply: Type-C (5V/1A) 4.
Battery Capacity: 1500 mAh 5.
Languages Supported: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean 6.
Dimensions: 66 × 110 × 19.5 mm 7.
Net Weight: 138 g Oscilloscope
Specifications
1.Channels: Dual-channel 2.
Bandwidth: 50 MHz 3.
Real-Time Sampling Rate: 250 MSa/s 4.
Memory Depth: 14 Mpts 5.
Time Base Range: 20 ns/div 20 s/div 6.
Vertical Sensitivity: 10 mV/div 10 V/div 7.
Display Modes: Y-T, X-Y, Roll 8.
Vertical Resolution: 8-bit 9.
Impedance: 1 M 10.
Measurements: Period, Frequency, Peak-to-Peak Voltage, Maximum, Minimum, Average, RMS, Amplitude, Duty Cycle, Pulse Width 11.
Probe Attenuation Coefficient: 1X / 10X 12.
Input Coupling: AC / DC 13.
Trigger Types: Rising Edge / Falling Edge 14.
Maximum Input Voltage (Peak): ±400 V 15.
Trigger Level Range: 8 divisions 16.
Trigger Modes: Auto / Normal / Single Signal Generator
Specifications
1.Output Waveforms: Multiple waveform types supported 2.
Frequency Range: 0 50 kHz 3.
Square Wave Duty Cycle: 0 100% 4.
Amplitude Range: 0.1 V 3.0 V
