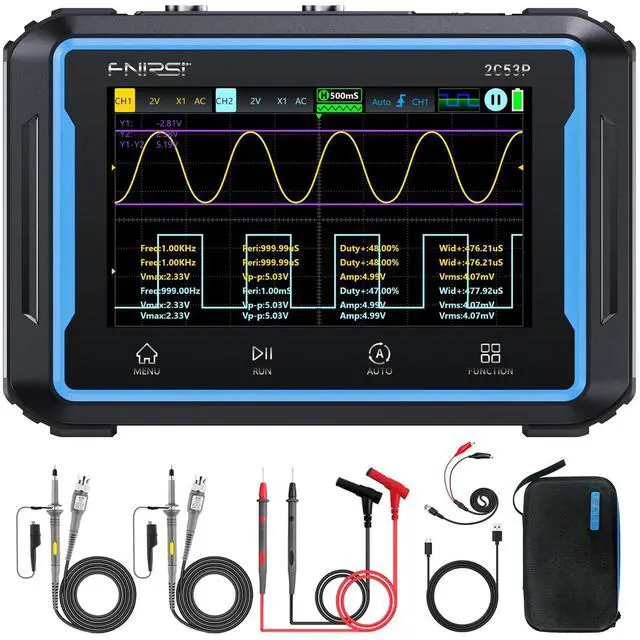

    FNIRSI 2C53P 3-in-1 50MHz Oscilloscope Multimeter DDS Signal Generator | 2 Channel Oscilloscope, 250MS/s Sampling, 19999 Counts Automotive Multimeter with 4.3'' Touchscreen, X-Y Mode, FFT Analysis

    Be the first to review this product...

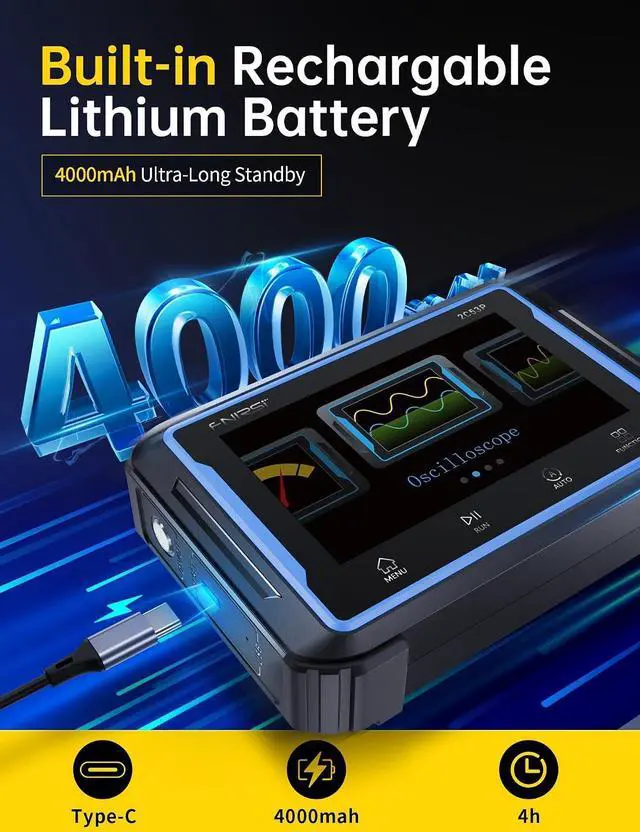

    • 2 channel oscilloscope multimeter: FNIRSI 2C53P handheld oscilloscope has 250 MS/s sampling rate, 50 Mhz bandwidth. Multimeter 19999 counts, 5 measuring values, max and min display. 4.3-inch IPS touch screen, 480*272 high resolution; DDS Signal generator: It can output 12 waveforms, the maximum waveform output frequency can reach 10 MHz. FPGA + MCU + ADC hardware structure can ensure a waveform capture function. Support waveform preservation, view and export analysis; Efficiency improvement: Automotive oscilloscope has efficient one-key AUTO, quickly measure, simplify operations. Support automatic/normal/single trigger.Tablet Oscilloscope suitable for periodic analog signals and non -periodic digital signals; Comprehensive analysis: X-Y mode can be used to compare the phase, amplitude and frequency of two sets of signals. FFT spectrum analysis can estimate the harmonic content and better handle complex signals; Long-lasting battery life: The digital oscilloscope has a built-in 4000 mAh lithium battery with a battery life of about 4 hours, and supports Type-C interface charging to ensure uninterrupted work
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

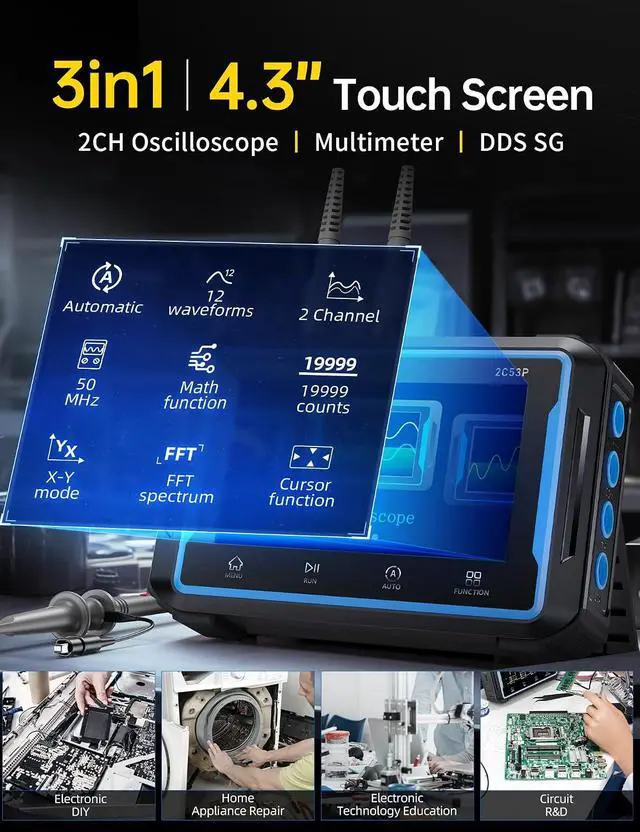

    Product description FNIRSI 2C53P 3 in 1 Handheld Tablet Oscilloscope Multimeter DDS Signal Generator FNIRSI 2C53P is a handheld oscilloscope that integrates oscilloscope, multimeter and signal generator. 2C53P digital oscilloscope adopts 4.3 -inch IPS ultra-high-definition touch screen, and built-in 4000mAh lithium battery, which is convenient for electricians or DIY enthusiasts to use indoors and outdoors. Oscilloscope 1. ChannelDual channel 2. Analog bandwidth50MHz; Real-time sample rate250MSa/s 3. Storage depthUp to 64kByte; Input mpedance1M 4. Time base range10ns/div - 10s/div; Vertical sensitivity10mv/div - 10v/div 5. Vertical resolution8 bits 6.

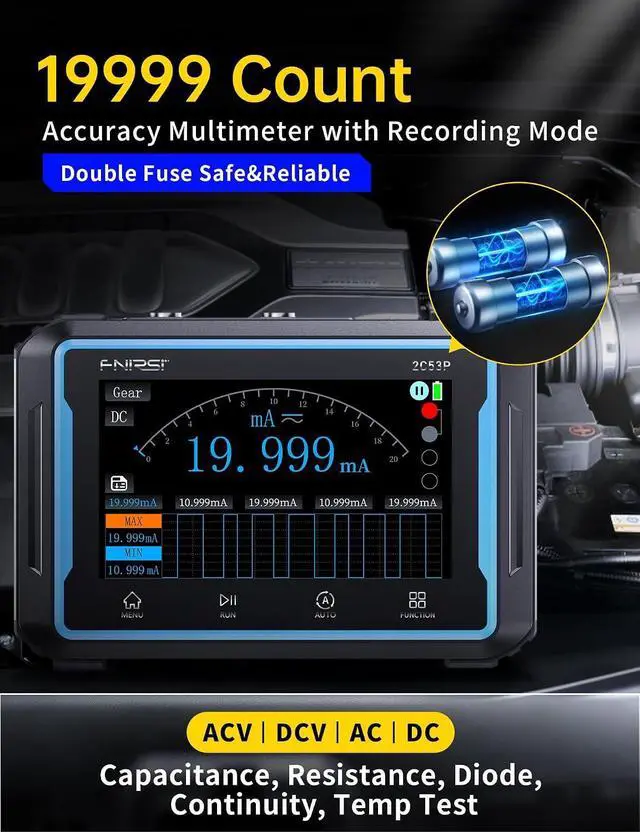

    Maximum measured voltage±400V; Probe1x/10x 7. Torage space13M; Bandwidth limitSupport 20MHz limit Digital Multimeter & Signal Generator Multimeter DC Voltage, AC voltage 1.9999V / 19.999V / 199.99V / 1000.0V; 1.9999V / 19.999V / 199.99V / 750.0V DC current, AC current 19.999 mA/ 199.99 mA/ 1.9999A / 9.999A; 19.999 mA/ 199.99 mA/ 1.9999A / 9.999A Resistance 19.999M / 1.9999M / 199.99K / 19.999K / 1.9999K / 199.99 Capacitance 999.9 uF/ 99.99 uF/ 9.999 uF/ 999.9 nF/ 99.99 nF/ 9.999 nF/ 9.999 mF/ 99.99 mF Temperature(-55~1300)/(-67~2372) DiodeYes; Continuity testYes

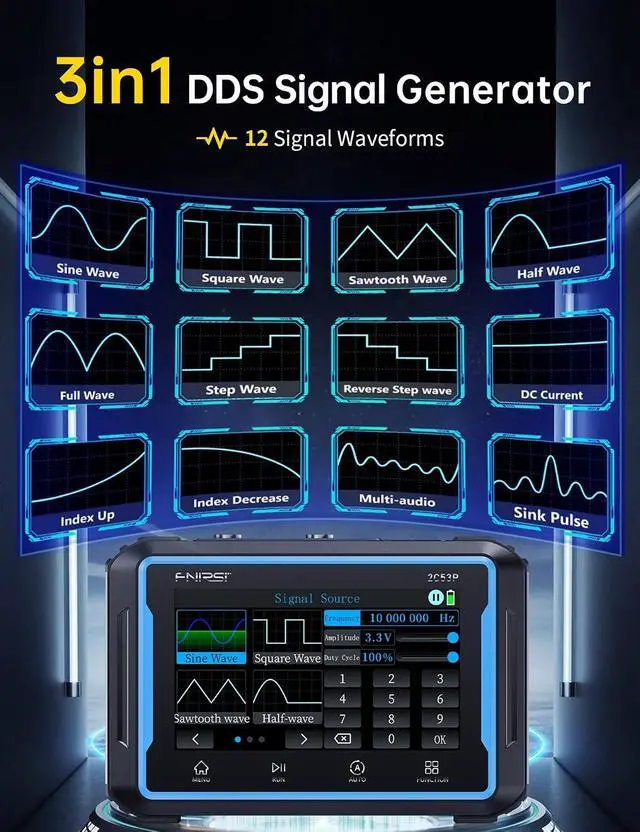

    Signal Generator Frequency0-10MHzSine wave: 10MHz, other waveforms 5MHz Amplitude 0.1V - 3.0V
    Square wave duty cycle: 0-100% Signal typesinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-au...
