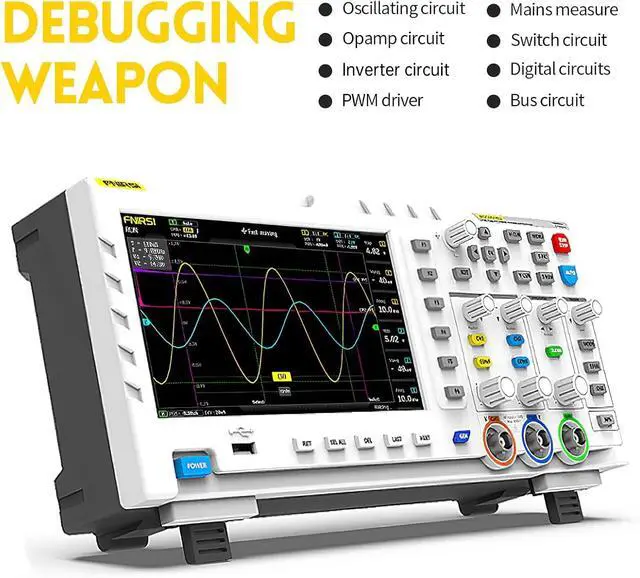

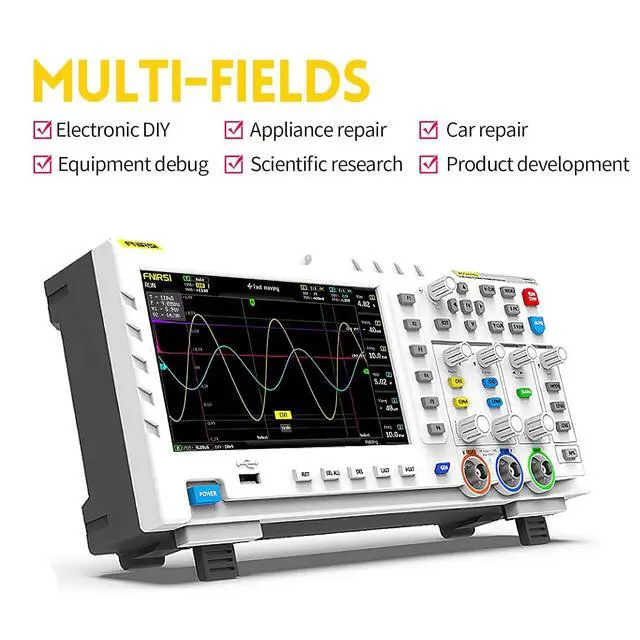

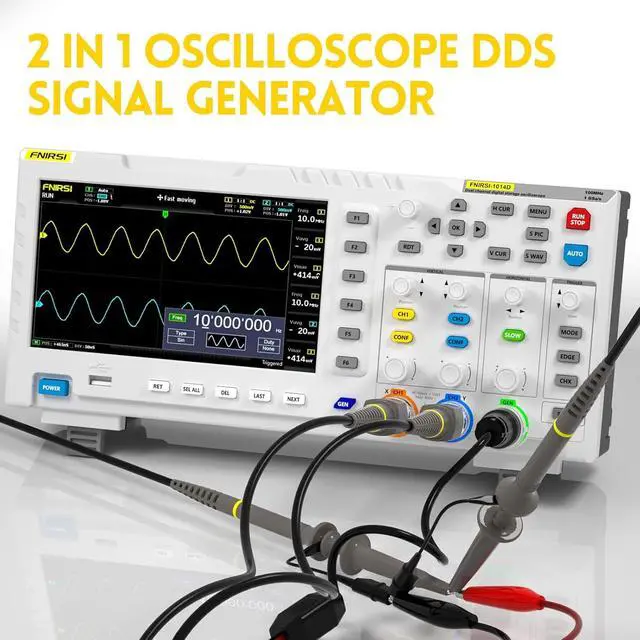

    FNIRSI 1014D 100MHz Digital Oscilloscope, 2 Channel Oscilloscope 2-in-1 | 1GSa/s Oscope DDS Signal Generator, 100X Probe, X-Y Mode, 240Kpts Memory, Auto Measurement, USB Powered for Students & DIY

    Be the first to review this product...

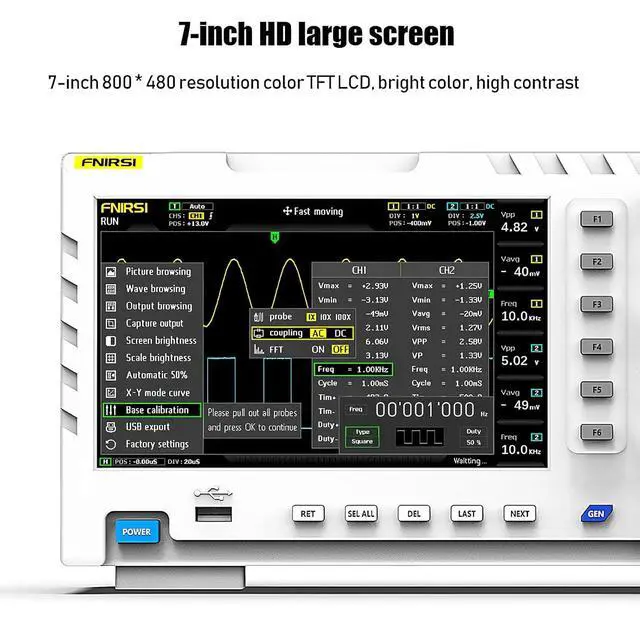

    • Real-Time Sampling Oscilloscope:Fnirsi oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope can be triggered by single/normal/automatic, it can be used for both periodic analog signals and aperiodic digital signals; DDS Function Signal Generator : Chopping output 2.5 VPP, signal frequency steps are 1 HZ, support 14 kinds of function signals and a customizable chopping signal, which can store up to 1000 customized chopping signals; Easily Measuring : Cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion; Easy to Observe : Equipped with efficiency one-button AUTO, adaptive 25%, 50%, 75% trigger, can display the measured waveform without cumbersome adjustment; the display is equipped with a 7-inch 800*480 resolution LCD screen; Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

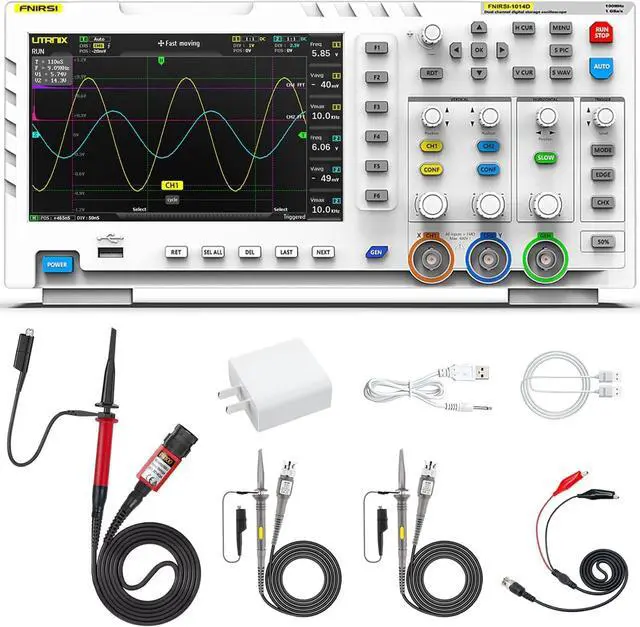

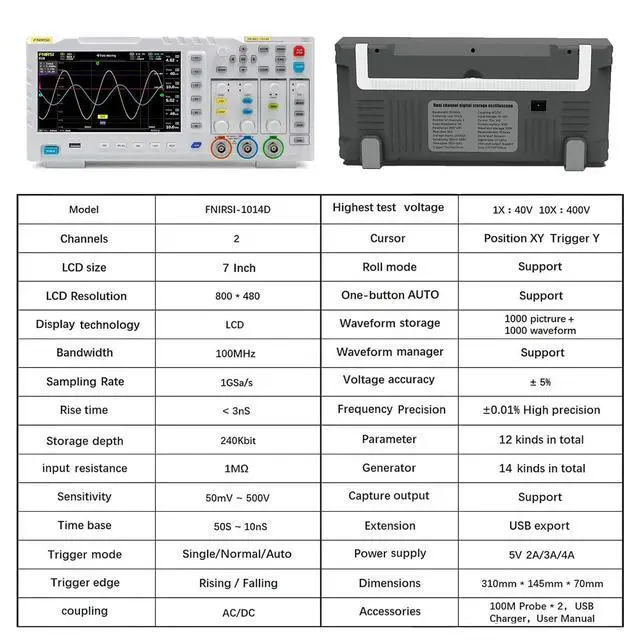

    Product description FNIRSI 1014D 2 in 1 Digital Oscilloscope and DDS Signal Generator. FNIRSI Provides More Professional Accessories 1 * FNIRSI-1014D Oscilloscope Host 2 * Matching 100MHz Probe (1X and 10X 1 * P4100 Oscilloscope Probe 100X High Voltage 1* Crocodile clip 1 * 5V2A Power Adapter 1 * USB Data Line 1 * English User Manual DIGITAL OSCILLOSCOPE SPECIFICATION Channels 2 Bandwidth 100MHz Sample Rate 1GSa / s Storage Depth 240Kbit Timebase 50S / div~10nS / div Vertical Sensitivity 50 mV / div~500 V / div Input Impedance 1M ohm Trigger Modes Auto / Normal / Single Trigger Types Rising Edge / Falling edge Coupling DC / AC Highest Test
    Voltage 1X: 40V
    / 10X: 400V Cursor Position XY Trigger Y Waveform Manager Support (1000 pic +1000 waveform) Frequency Precision ± 0.01 % USB Export Support Power Supply 5V 2A/3A/4A SIGNAL GENERATOR SPECIFICATION Channels 1 Waveform Type 14 standard signals (@ 2.5 vpp) + 1 customizable signal ( Only the Frequency is adjustable ) Capture Output Supprot Sine Wave Max Frequency 10MHz Other Wave Max Frequency 2MHz Customize Signal Max Frequency 1MHz Frequency Resolution 1Hz DDS Function Signal Generator Intercepting part or the whole part of the complex signals from the oscilloscope as the output signal of the signal generator. One-key Screenshot and Saving Built-in 1GB storage space, which can store up to 1000 screenshots + 1000 sets of waveform data. USB Picture Export It can be connected with PC and share the screen capture pictures to PC...
