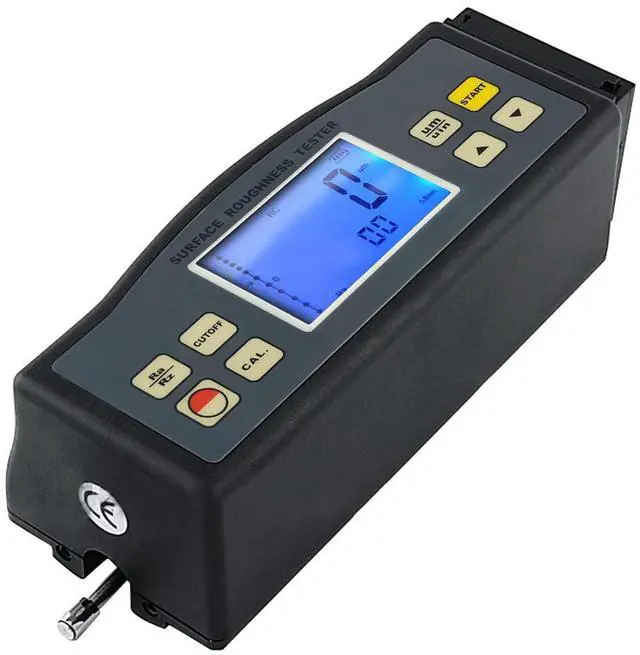

Instruments Digital Surface Roughness Tester 2 Parameters Ra, Rz
- Measuring Range: Ra (0.05-10.00 µm / 1.000-400.0 µinch), Rz (0.020-100.0 µm / 0.780-4000 µinch); Fourwave filtering methods : RC, PC-RC, GAUSS and D-P; Accuracy:<=10%; Selectable Metric (µm) and Imperial (µinch); Sensor: Test Principle (Inductance type), Material of Probe Pin (Diamond), Radius of Probe Pin (10µm), Measurement Force of Probe [16mN(1.6gf)], Vertical Radius of Guiding Head (48mm), Probe Angle (90°)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Measuring Range: Ra ( 0.05 - 10.00 µm / 1.000 - 400.0 µinch), Rz ( 0.020 - 100.0 µm / 0.780 -4000 µinch);
Fourwave filtering methods: RC, PC-RC, GAUSS and D-P;
Accuracy: <=10%; Selectable Metric (µm) and Imperial (µinch);
Sensor: Test Principle (Inductance type), Material of Probe Pin (Diamond), Radius of Probe Pin (10µm), Measurement Force of Probe [16mN( 1.6 gf)], Vertical Radius of Guiding Head (48mm), Probe Angle (90°)
Fourwave filtering methods: RC, PC-RC, GAUSS and D-P;
Accuracy: <=10%; Selectable Metric (µm) and Imperial (µinch);
Sensor: Test Principle (Inductance type), Material of Probe Pin (Diamond), Radius of Probe Pin (10µm), Measurement Force of Probe [16mN( 1.6 gf)], Vertical Radius of Guiding Head (48mm), Probe Angle (90°)
