MD-64CA Thermal Imaging Camera, 640x512 High Resolution 12m Uncooled VOx Sensor, 50Hz, 9.1mm Lens, CVBS & USB UVC Output

Thermal Imaging Camera

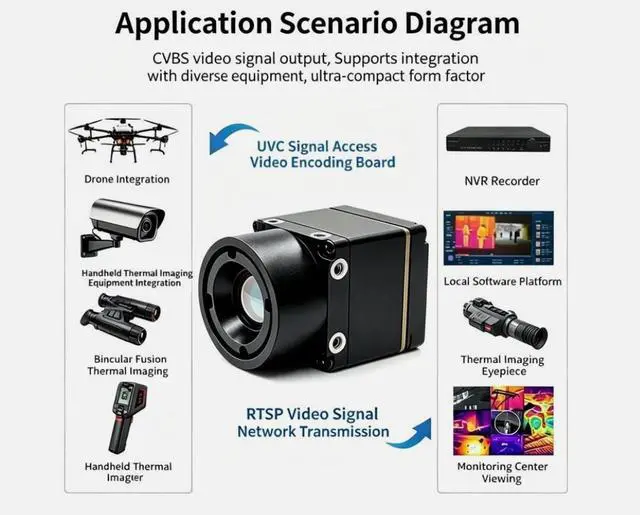

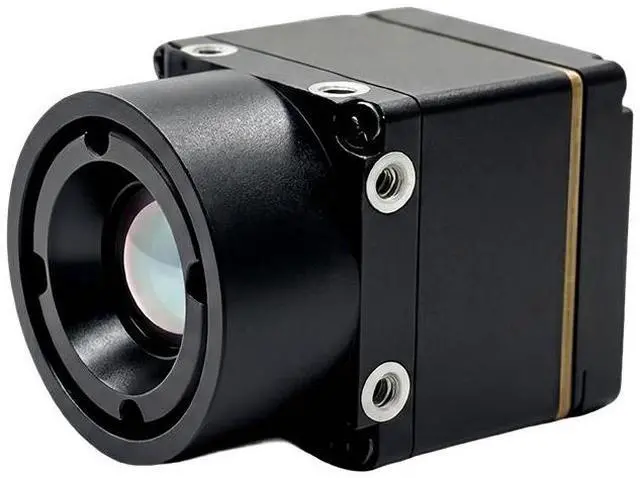

The MD-64CA Thermal Imaging Camera features a high-resolution 640x512 detector built on advanced 12m pixel pitch technology, paired with a 9.1mm wide-angle lens. Combining detailed imaging, high sensitivity, and a wide field of view, it delivers clear and stable thermal imagery across various scenariosincluding industrial inspection, security monitoring, and outdoor search and rescuemaking it a professional choice for all-scenario thermal imaging applications.

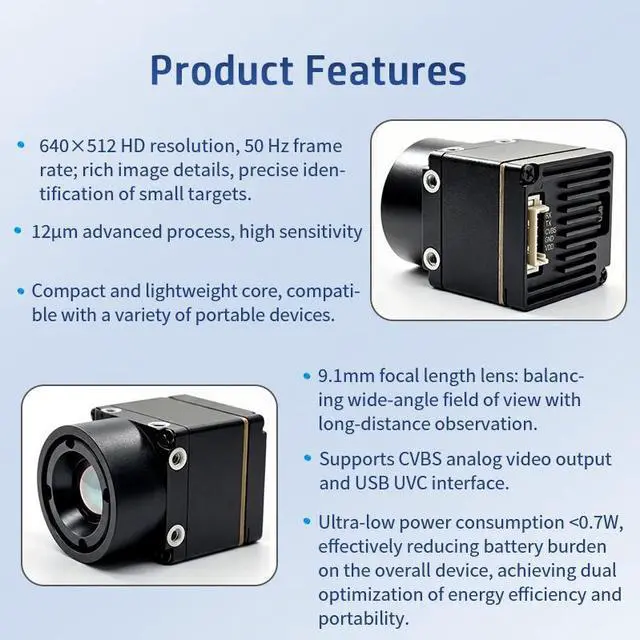

Product Features

1. 640x512 High Resolution, 50Hz Frame Rate: Provides rich image details and crisp object outlines for precise identification of small targets.
2. Advanced 12m Technology: Compact and lightweight design integrates easily into various portable devices.
3. 9.1mm Focal Length Lens: Balances a wide-angle field of view with long-distance observation, offering broad short-range coverage to capture the full scene alongside crisp distant imaging details.

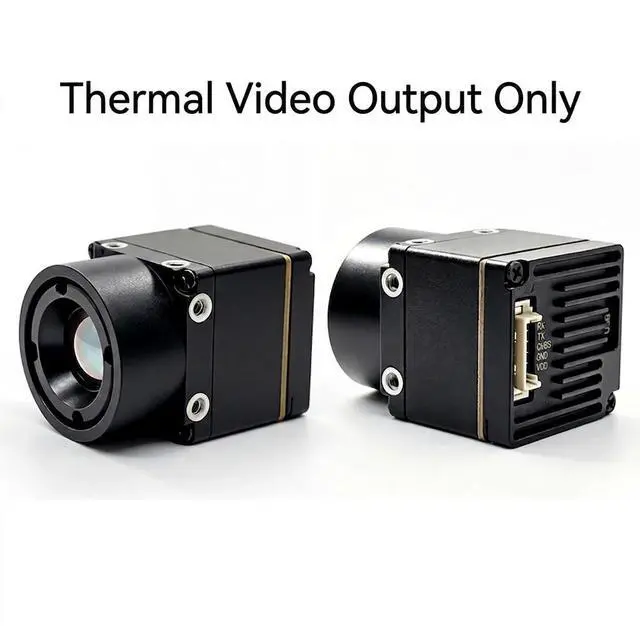

4. Dual Signal Output: Supports both CVBS analog video output and USB UVC interfaces, enabling flexible connection with different imaging platforms.
5. Custom ASIC Chip & Ultra-Low Power Consumption (<0.7W): Employs a custom ASIC solution to reduce device size and minimize power draw (<0.7W), extending battery life and optimizing energy efficiency for portable systems.

Specifications
