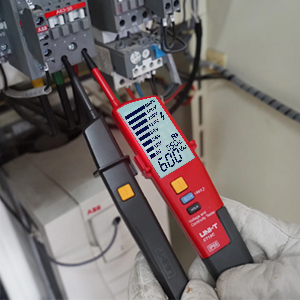

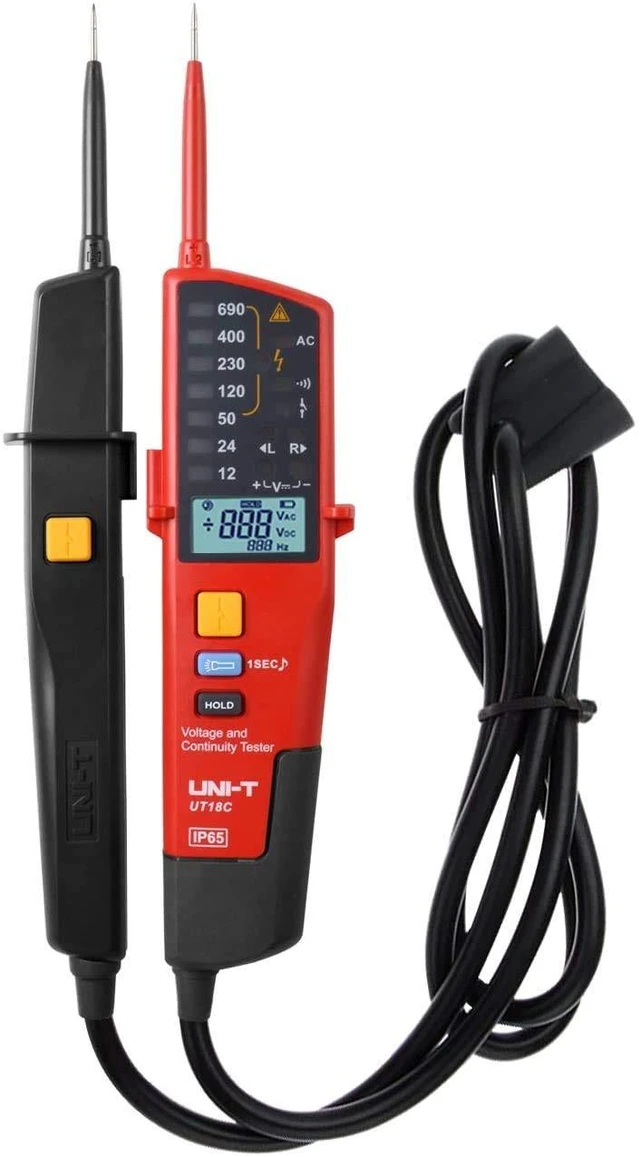

UT18C Voltage and Continuity Tester

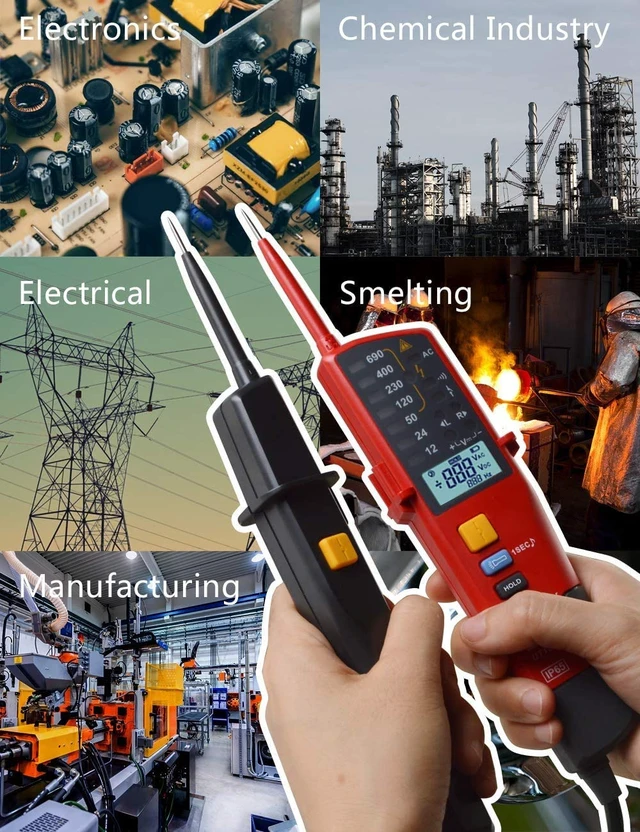

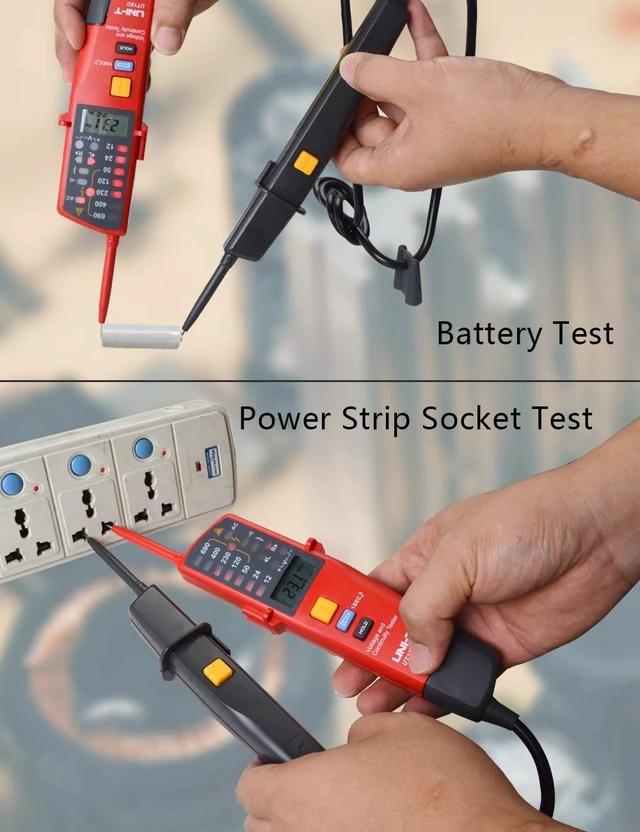

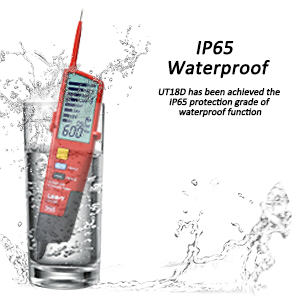

UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.

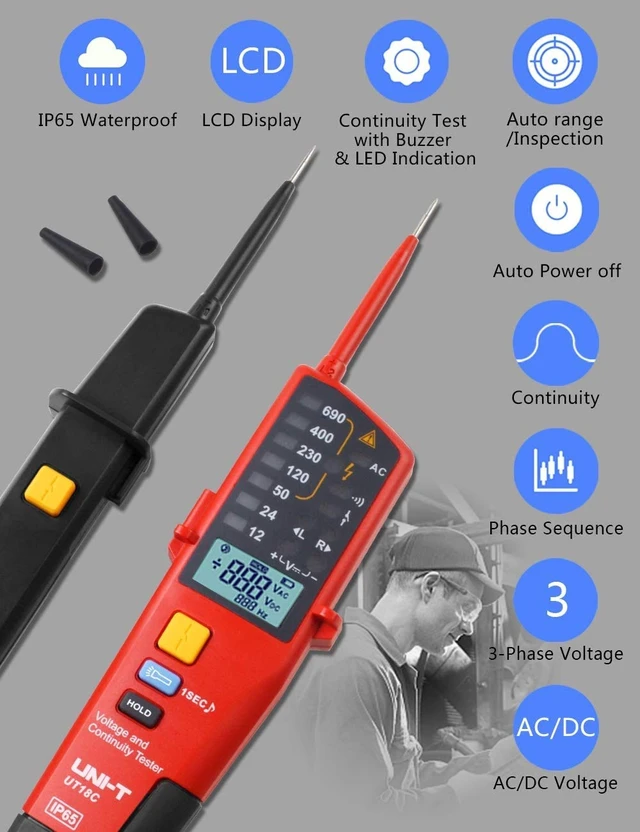

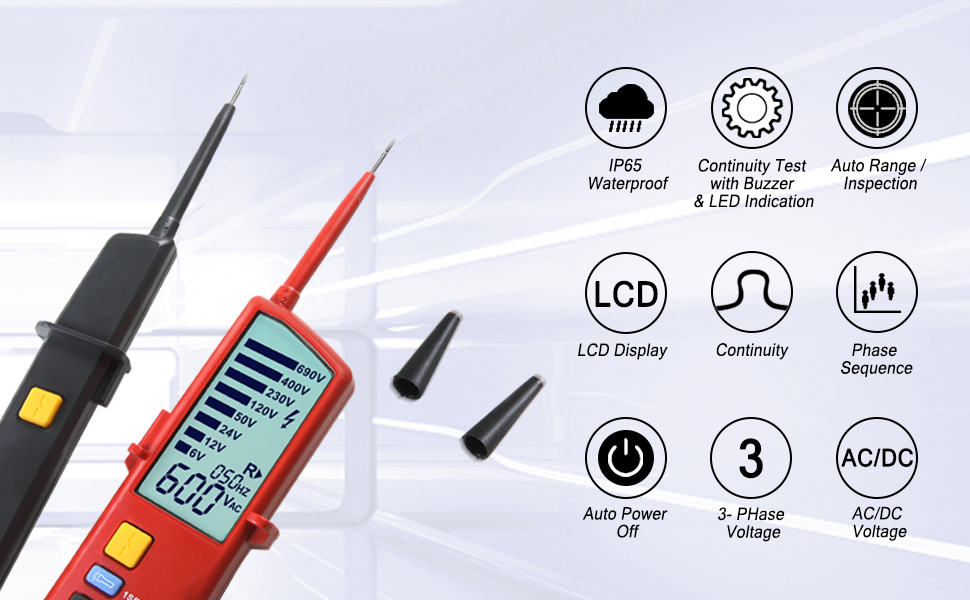

Features 1. Auto power off, the conductor to be measured is greater than 12V

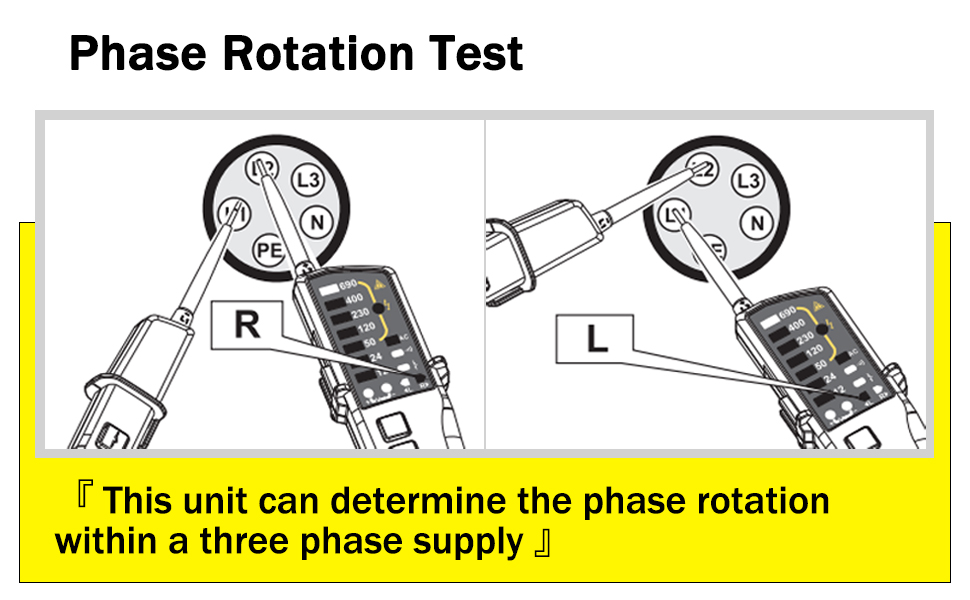

2. Phase rotation test

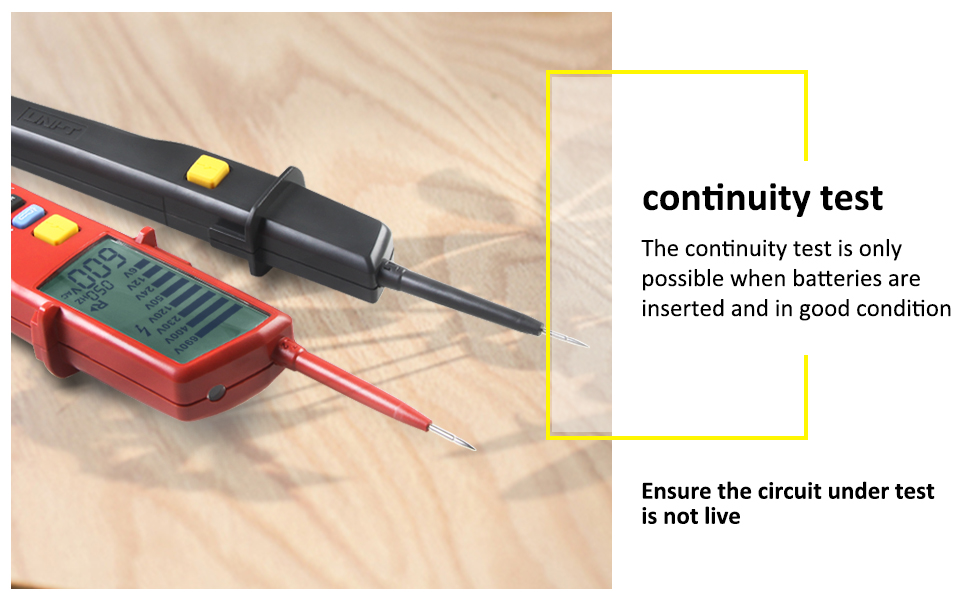

3. Continuity test with buzzer and LED indication
4. Low battery indication and over voltage prompt

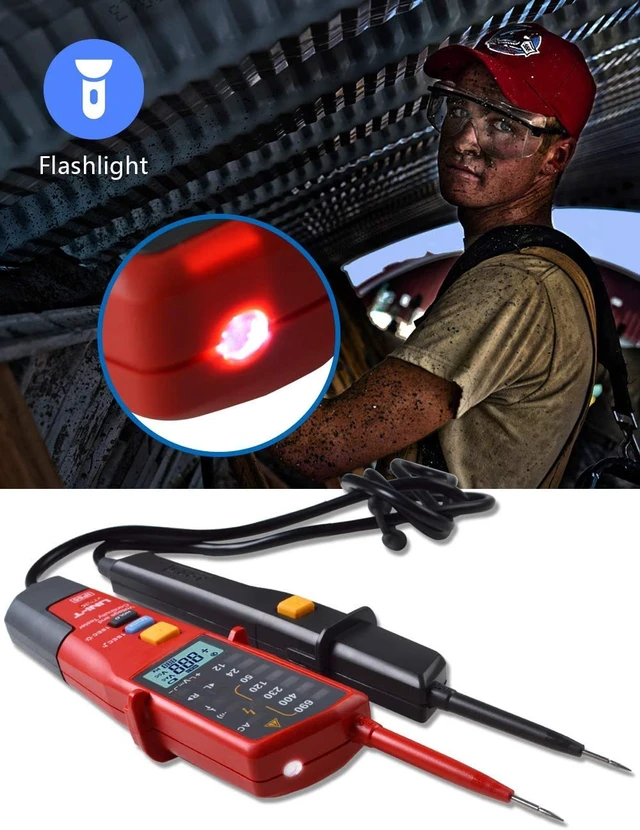

5. Flashlight
6. Test live voltage without batteries
7. Buzzer and silent modes available
8. Auto range
9. Polarity indication
Specifications
Voltage indication (V)/b> 12V : 8V±1V
24V: 18V±2V
50V: 38V±4V
120V: 94V±8V
230V: 180V±14V
400V: 325V±15V
690V: 562V±24V
Phase rotation test 57Vac~400Vac (3 phase) v
Frequency: 50Hz~400Hz
Single lead(L2) Voltage detection Operating voltage: 100V~690V v
Frequency: 50Hz~400Hz v
Continuity test Resistance: 0O~100kO (+50% accuracy) v
Beeper and LED light indication v

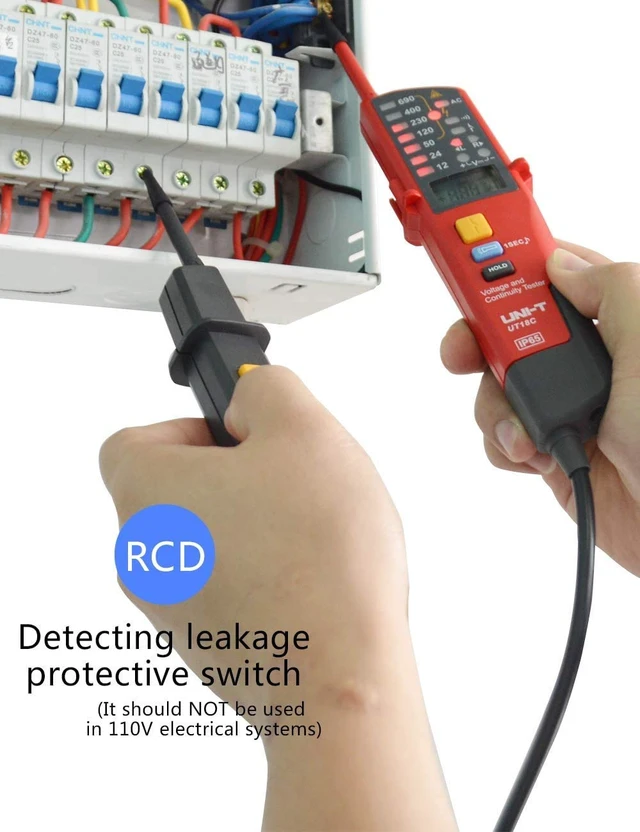

RCD test Operating voltage: 230V (50Hz~400Hz) v
Polarity detection Positive & Negativev
Self-inspection All LED or LCD v
No power test Operating voltage: 100~690V v
Features Voltage indication : LED
Exceed voltage Voltage range: 713V~788V v
Auto standby Standby current<10µA : v
Slient mode: All range v Work light: v
Low battery indication Around 2.5V: v
LCD display (voltage) 6V~690V±(1.5%+5)
LCD display (Frequency) 40Hz~400Hz ±(3%+5)

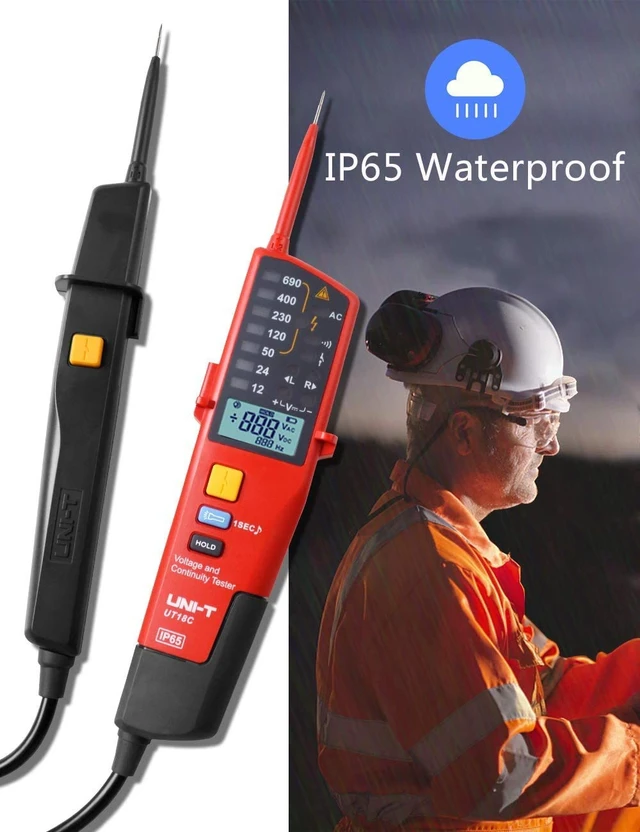

IP65: v
General Characteristics Power: 1.5V battery (R03)×2
Display : 31mm x 20mm
Product net weight: 280g
