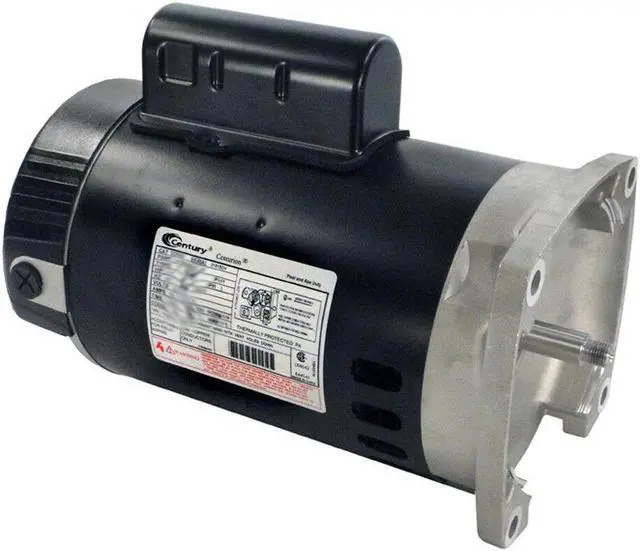

Main image of A.O. Smith Century B2852 Up-Rate 3/4 HP 3450RPM Single Speed Pool Pump Motor

Shop All AO Smith Products | Visit B-IN Electronics Store

A.O. Smith Century B2852 Up-Rate 3/4 HP 3450RPM Single Speed Pool Pump Motor

Pool Pump Motor, PSC, Open Dripproof, 3/4 HP, 3450 Nameplate RPM, 56Y NEMA/IEC Frame, CCW Rotation, Voltage 115/230, 10.8/5.4 Full Load Amps, 1 Phase, 60 Hz, Flange Mounting, Ball Bearings, Black, Flange Material Aluminum, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Thermal Protection Auto, 1.25 Service Factor, Ambient Temperature 50 Degrees C, Shaft Dia. 5/8 In., Shaft Length 7/16 In., Insulation Class F, Efficiency Group Standard, Standards UL Recognized, CSA Certified
Note: Must equal or exceed service factor and HP for proper replacement.
1-Phase and 3-Phase Square-Flange Open-Dripproof Pool Pump Motors Motors are equivalent replacements for most popular pool and spa manufacturers' pumps PSC and 3-phase motors are single-compartment design. Capacitor-start/capacitor-run motors are 2-compartment design. Shaft: 303 stainless steel, 1/2-20 UNF-2A RH external threads. UL Recognized and CSA Certified.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Mounting: flange, horizontal only
Insulation: Class
BThermalprotection: auto, except 3-phase motors have none
Bearings: ball
