ZJKC LRP5W-650&808 Cold Laser Therapy Device 5W Dual Wavelength 25 Diodes

ZJKC LRP5W-650&808 5W Dual Wavelength Cold Laser Therapy DeviceProduct Overview

Experience advanced dual wavelength laser technology with the ZJKC LRP5W-650&808 Handheld Laser Therapy Device. Designed with a powerful 5W laser output, 25 laser diodes, and an ergonomic portable structure, this device combines 650nm visible red laser light and 808nm near-infrared laser light in one versatile system.

Featuring adjustable power levels, continuous and pulsed operating modes, an intelligent LED display, and a high-capacity rechargeable battery, the ZJKC laser therapy device provides flexible operation for supported professional and personal applications.

Whether used in an appropriate professional facility or other authorized setting, its compact cordless design makes handling and positioning convenient.

Key Features and Benefits1. High Power 5W Laser Therapy Device with 25 Diodes

The ZJKC LRP5W-650&808 features 25 laser diodes delivering a combined rated output power of 5000mW.

1. Total Rated Output Power: 5W / 5000mW
2. Number of Laser Diodes: 25
3. Dual Wavelength Laser Configuration
4. GaAlAs Laser Diode Technology
5. Compact Handheld Construction

The multi-diode configuration provides a convenient laser light delivery system with adjustable operating settings.

2. Advanced 650nm and 808nm Dual Wavelength Technology

This cold laser therapy device combines visible red and near-infrared wavelengths for flexible laser light applications.

650nm Red Laser:

1. 10 Laser Diodes
2. 200mW Rated Power per Diode
3. Total Rated Output: 2000mW
4. Visible Red Laser Light

808nm Near-Infrared Laser:

1. 15 Laser Diodes
2. 200mW Rated Power per Diode
3. Total Rated Output: 3000mW
4. Near-Infrared Laser Light

The combination of two wavelengths offers different optical penetration and tissue interaction characteristics, providing flexibility for supported laser therapy applications.

3. Four Adjustable Power Levels for Flexible Operation

Customize the laser output with four selectable power settings.

1. Level 1: 25% Power
2. Level 2: 50% Power
3. Level 3: 75% Power
4. Level 4: 100% Power

The adjustable power function allows operators to select the appropriate output according to device instructions and application requirements.

4. Continuous Wave and Pulsed Wave Modes

The ZJKC handheld laser therapy device supports two operating modes.

Continuous Wave Mode (CW):

Provides continuous laser output during operation.

Pulsed Wave Mode:

Delivers intermittent laser output according to the selected pulse settings.

Additional Features:

1. 10Hz Standard Pulse Frequency
2. Customizable Frequency Configuration
3. Adjustable Operating Time: 1-60 Minutes
4. Convenient Mode Selection

These functions provide additional control and versatility.

5. 20400mAh Rechargeable Lithium Battery

Enjoy convenient cordless operation with the built-in high-capacity rechargeable lithium battery.

1. Battery Capacity: 20400mAh
2. Rechargeable Lithium Battery
3. Cordless Handheld Operation
4. Battery Level Indicator
5. External Charging Connection
6. AC Adapter Input: 100-240V, 50/60Hz

The portable rechargeable design supports flexible positioning without requiring a continuous wall power connection.

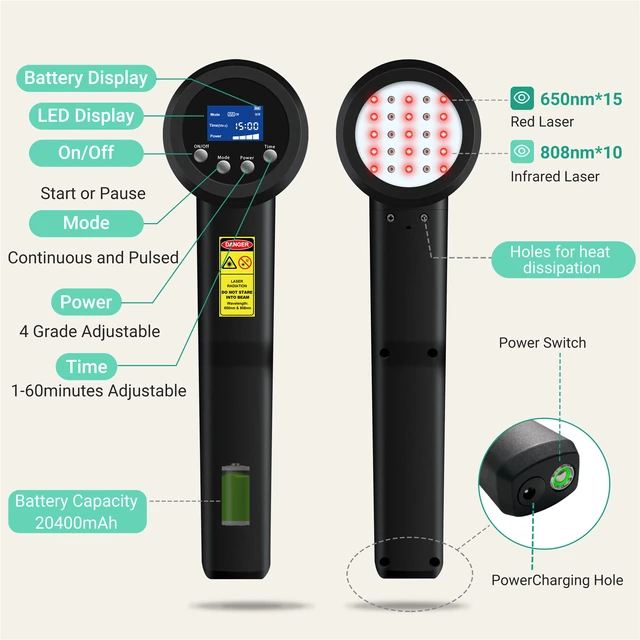

6. Intelligent LED Display and Easy Button Controls

The device features an integrated LED control panel for convenient operation.

LED Display Features:

1. Operating Mode Indicator
2. Treatment Time Display
3. Power Level Indicator
4. Battery Status Display

Control Buttons:

1. ON/OFF Button: Start or pause operation
2. MODE Button: Select operating mode
3. POWER Button: Adjust output power
4. TIME Button: Adjust operating time

The clearly labeled controls make it easy to view and adjust the device settings.

7. Ergonomic Handheld Design with Heat Dissipation

Designed with user convenience in mind, the ZJKC laser therapy device features a comfortable handheld grip and a compact laser head.

1. Ergonomic Handle Design
2. Portable and Cordless Construction
3. Integrated Heat Dissipation Openings
4. Convenient Button Placement
5. Compact Device Structure
6. Rechargeable Power System

Its practical design supports flexible handling in different authorized operating environments.

Application Scenarios

The ZJKC LRP5W-650&808 is designed for targeted laser light delivery in supported professional applications.

Potential operating environments include:

1. Professional Physiotherapy Facilities
2. Sports Recovery and Wellness Centers
3. Veterinary Clinics
4. Animal Care Facilities
5. Professional Laser Therapy Settings

The product's application imagery demonstrates use around humans and animals, including dogs, cats, horses, and rabbits.

Human or veterinary treatment applications must be supported by the manufacturer's intended-use documentation and applicable regulatory authorization. The device should only be operated by appropriately qualified users where required.

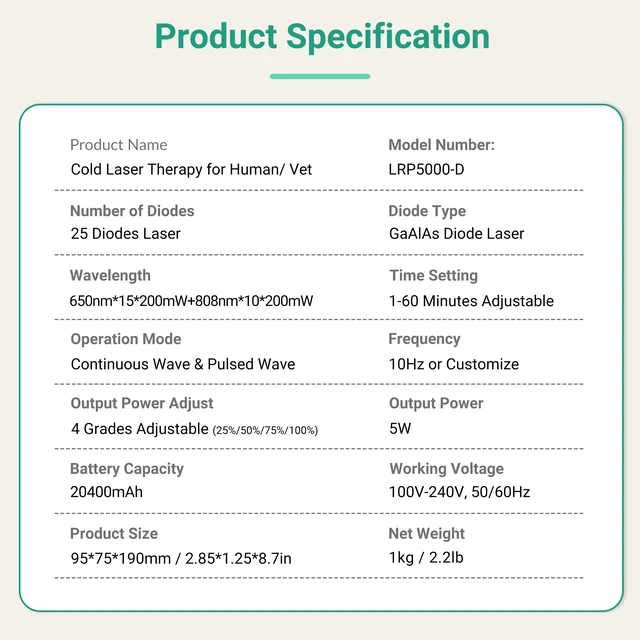

Technical Specifications

Brand: ZJKC

Model Number: LRP5W-650&808

Product Type: Handheld Cold Laser Therapy Device

Total Rated Output Power: 5W / 5000mW

Laser Wavelengths: 650nm + 808nm

Total Laser Diodes: 25

650nm Diodes: 10 x 200mW

808nm Diodes: 15 x 200mW

Laser Type: GaAlAs Diode Laser

Operating Modes: Continuous Wave and Pulsed Wave

Pulse Frequency: 10Hz or Customizable

Power Adjustment: 4 Levels

Power Settings: 25% / 50% / 75% / 100%

Timer: 1-60 Minutes Adjustable

Battery Type: Rechargeable Lithium Battery

Battery Capacity: 20400mAh

Input Voltage: AC 100-240V, 50/60Hz

Display: Digital LED Display

Cooling Design: Integrated Heat Dissipation

Device Type: Portable Handheld

Net Weight: Approximately 1kg / 2.2lb

Package Includes

1. 1 x ZJKC Handheld Laser Therapy Device
2. 1 x AC Power Adapter
3. 1 x Charging Cable
4. 1 x User Manual
5. 2 x Protective Laser Glasses
6. 1 x Carrying Case

Plug Type: Supplied according to the selected regional configuration.

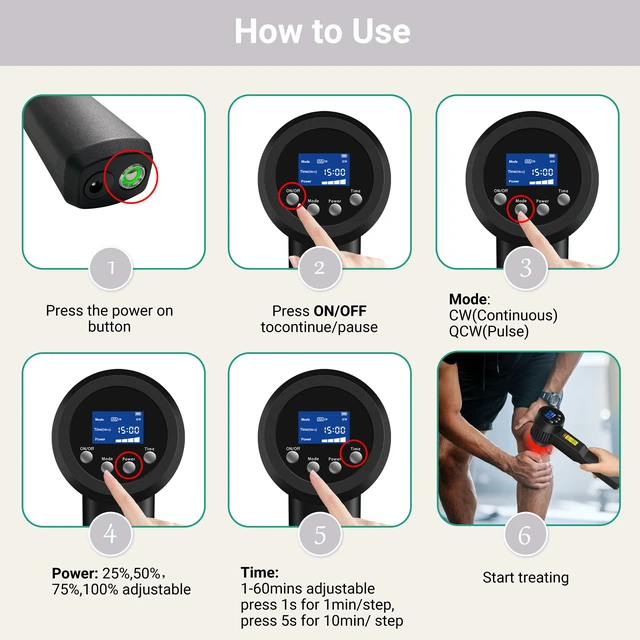

Operating Instructions

Step 1: Power On

Turn on the main power switch located at the bottom of the device.

Step 2: Activate the Control Panel

Press the ON/OFF button to activate or pause device operation.

Step 3: Select Operating Mode

Use the MODE button to select continuous wave or pulsed wave operation.

Step 4: Adjust Power Output

Press the POWER button to select 25%, 50%, 75%, or 100% power.

Step 5: Set Operating Time

Press the TIME button to adjust the timer from 1 to 60 minutes.

Step 6: Operate According to the User Manual

Follow all laser safety instructions, authorized application requirements, and manufacturer operating procedures.

Why Choose ZJKC?

1. 5W High Power Laser Output
2. 650nm and 808nm Dual Wavelength System
3. 25 Laser Diodes
4. Four Adjustable Power Levels
5. Continuous and Pulsed Wave Modes
6. Intelligent LED Display
7. 20400mAh Rechargeable Battery
8. Portable Ergonomic Design
9. Adjustable 1-60 Minute Timer
10. Protective Glasses and Carrying Case Included

The ZJKC LRP5W-650&808 combines advanced laser diode technology with versatile operating controls and convenient portability, making it a practical solution for supported laser light applications.

Important Safety Information

WARNING: HIGH POWER LASER PRODUCT

Laser radiation can cause serious eye injury and skin damage.

1. Never look directly into the laser beam.
2. Avoid accidental exposure to people or animals.
3. Use appropriately rated laser protective eyewear for both 650nm and 808nm wavelengths.
4. Keep the device away from children and unauthorized users.
5. Follow the manufacturer's operating instructions and safety precautions.
6. Do not use for medical or veterinary treatment unless the intended application is appropriately authorized.
7. Use professional supervision where required.

Product specifications and intended applications should be verified against the final model documentation before purchase or operation.

Q1: What is the total laser output power of this device?

A: The ZJKC LRP5W-650&808 features a total rated laser output power of 5W (5000mW). It is equipped with 25 laser diodes that combine 650nm red laser light and 808nm near-infrared laser light.

Q2: What is the difference between 650nm and 808nm wavelengths?

A: The 650nm wavelength produces visible red laser light, while the 808nm wavelength produces near-infrared laser light that is largely invisible to the human eye. These wavelengths have different optical absorption and tissue penetration characteristics, providing versatility for supported applications.

Q3: Can this laser therapy device be used on both humans and pets?

A: The device is marketed for human and veterinary laser therapy applications. However, suitability for a particular person, animal, or condition depends on the manufacturer's intended-use instructions, applicable regulatory requirements, and professional guidance. Consult a qualified healthcare professional or veterinarian before therapeutic use.

Q4: Is this device suitable for dogs, cats, and horses?

A: The product's application materials show potential use around dogs, cats, horses, and other animals. Veterinary treatment should only be performed when supported by the product's authorized intended use and under appropriate veterinary supervision.

Q5: Does the device have adjustable power settings?

A: Yes. The laser therapy device features four adjustable power levels: 25%, 50%, 75%, and 100%. These settings provide flexible output control according to the manufacturer's operating instructions.

Q6: Does this laser therapy device support continuous and pulsed modes?

A: Yes. The device supports Continuous Wave (CW) and Pulsed Wave operating modes. Users can select the appropriate operating mode through the control panel.

Q7: How long can I set the operating timer?

A: The device features an adjustable timer ranging from 1 to 60 minutes. The appropriate operating duration should always follow the user manual and applicable professional guidance.

Q8: Does the device need to stay plugged in during use?

A: No. The device features a built-in rechargeable lithium battery for cordless operation. Please charge the device according to the included instructions and use the supplied power accessories.

Q9: What is the battery capacity?

A: The product specifications indicate a 20400mAh rechargeable lithium battery. Actual operating time depends on the selected power level, operating mode, and battery condition.

Q10: Is this handheld laser therapy device easy to operate?

A: The device features a digital LED display and clearly labeled control buttons for power, operating mode, output level, and timer adjustment. Users should read the instruction manual and complete any required laser safety training before operation.

Q11: Are protective laser glasses included?

A: Yes. The advertised package includes two pairs of protective laser glasses. Before use, confirm that the glasses are properly rated for both the 650nm and 808nm laser wavelengths and the device's laser output.

Q12: What is included in the package?

A: The advertised package includes:

1. 1 x ZJKC Handheld Laser Therapy Device
2. 1 x AC Power Adapter
3. 1 x Charging Cable
4. 1 x User Manual
5. 2 x Protective Laser Glasses
6. 1 x Carrying Case

Package contents should be confirmed against the final shipment configuration.

Q13: Does the device support US electrical outlets?

A: The supplied product specifications indicate an AC adapter input of 100-240V, 50/60Hz. Regional plug configurations are available. Please confirm that the order includes a US-compatible plug before purchasing.

Q14: Does this device come with a warranty?

A: Yes! All ZJKC products come with a 1-year warranty. If your device experiences a product quality issue during the warranty period, please contact our customer support team through your Newegg order for assistance. Warranty service is subject to the applicable warranty terms.

Q15: What should I do if the product has a problem after purchase?

A: Please contact us through Newegg with your order details and a description of the issue. Our customer support team will review your request and help you with troubleshooting and available warranty service options.

Q16: Is this laser therapy device safe to use?

A: This is a high-power laser device that requires appropriate safety precautions. Never look directly into the beam or expose unprotected eyes to laser radiation. Use wavelength-appropriate protective eyewear and follow the manufacturer's safety instructions. Professional supervision may be required.

Q17: Can I use the device at home?

A: Home use should only be considered if it is permitted by the product's intended-use documentation and applicable regulations. Because this is a high-power laser product, proper training, protective equipment, and safety precautions are essential.

Q18: Can I use this device for arthritis, muscle injuries, or chronic pain?

A: The suitability of laser therapy for a specific medical or veterinary condition depends on the device's authorized indications and professional assessment. Consult a qualified healthcare professional or veterinarian for advice before using the device for a medical condition.

Q19: Is this device portable?

A: Yes. The device features an ergonomic handheld design and a rechargeable battery, making it convenient to carry and position in appropriate operating environments.

Q20: Why choose the ZJKC laser therapy device?

A: The ZJKC LRP5W-650&808 combines 5W rated laser output, dual wavelength technology, 25 laser diodes, four adjustable power levels, continuous and pulsed operating modes, a digital LED display, and a rechargeable battery. It also comes with a 1-year warranty for added purchase confidence.

1-Year Warranty & Customer Support

All ZJKC products are backed by a 1-year warranty. If you experience a product quality issue during the warranty period, contact our customer support team through Newegg for assistance. We are committed to providing reliable products and responsive after-sales service. Warranty service is subject to the applicable warranty terms.
