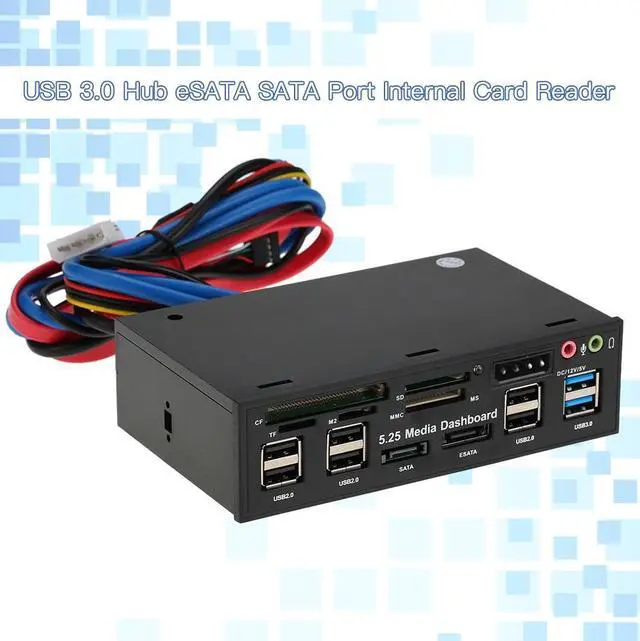

Multi-Function USB 3.0 Hub eSATA SATA Port Internal Card Reader PC Dashboard Media Front Panel Audio for SD MS CF TF M2 MMC Memory Cards Fits 5.25" Bay

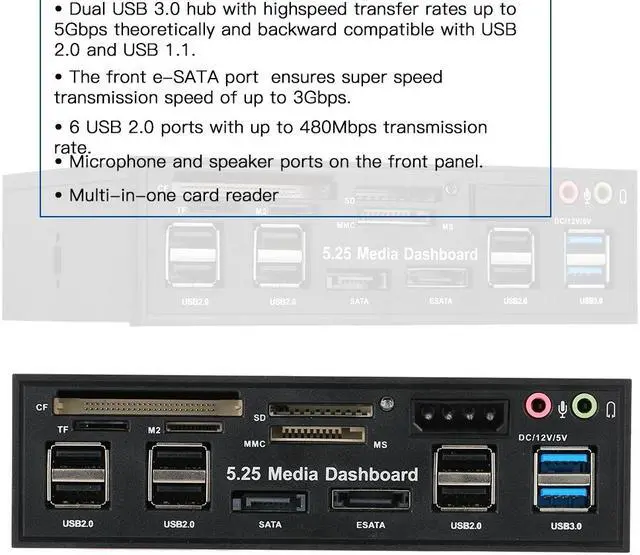

It is a multi-functional front panel with card reader, eSATA, SATA, audio ports, dual USB 3.0 hub and backward compatible with USB 2.0 and USB 1.1. eSATA ensures high speed data transmission rate between computer and personal external eSATA and USB devices without data damage and save time. Made of high quality smart chip, durable quality, super speed and safer data transfer, user-friendly performance. The card reader features five slots to provide easy and fast access to most popular cards, for SD card, CF card, TF card, M2 card and MMC/MS cards.

Features: High compatibility, all-in-one card reader supports most available cards, for SD card, CF card, TF card, M2 card and MMC/MS cards. Front microphone and speaker ports on the front panel audio output interface, efficiently avoid inconvenience of plugging behind chassis. Dual USB 3.0 ports and six USB 2.0 ports hub enable eight devices fast charging & high speed transferring simultaneously, convenient and efficient. Up to 3Gbps transmission rate of eSATA, up to 1.5G bps transfer speed of SATA and up to 480Mbps transfer speed of USB 2.0 and 5Gbps of USB 3.0 interface, satisfy your multiple needs. Perfectly insert with your 5.25" bay, the computer turns out to be multifunctional immediately, the eSATA, SATA, two USB 2.0 and six USB 3.0 ports on front panel for easy and quick access to external devices.
Specification:
Material: ABS
Color: Black
Interface: USB 3.0 / 2.0
Fitsbaysize: 5.25 inch
Ports: 1 * eSATA Port 1 * SATA Port 2 * USB 3.0 Port 6 * USB 2.0 Port 1 * Speaker Port 1 *
MicrophonePortSlots: 5 Slots Card Reader
Outputvoltage: 12V/5V
Supplyport: 4pin power interface
Integratedcardreader: for SD card, CF card, TF card, M2 card and MMC/MS cards.
Operatingsystem: for Win98/7/8/Me/2000/XP/Vista, for Mac9. X/10.
X/Linux11Itemweight: Approx. 301g/ 10.6 oz
Packagesize: 17 * 14.3 * 4.5 cm/ 6.7 * 5.6 * 1.8 in (L * W * H)
Packageweight: 367g/ 12.9 oz

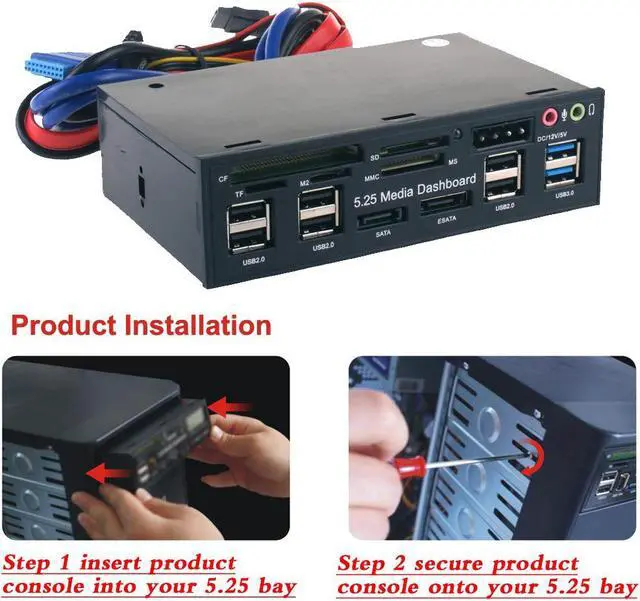

Packagelist: 1 * 5.25" Internal SATA e-SATA Dual USB 3.0 Six USB 2.0 Five-in-one Card Reader Multi-Function Front Panel Media Dashboard 4 * Screw 1 *

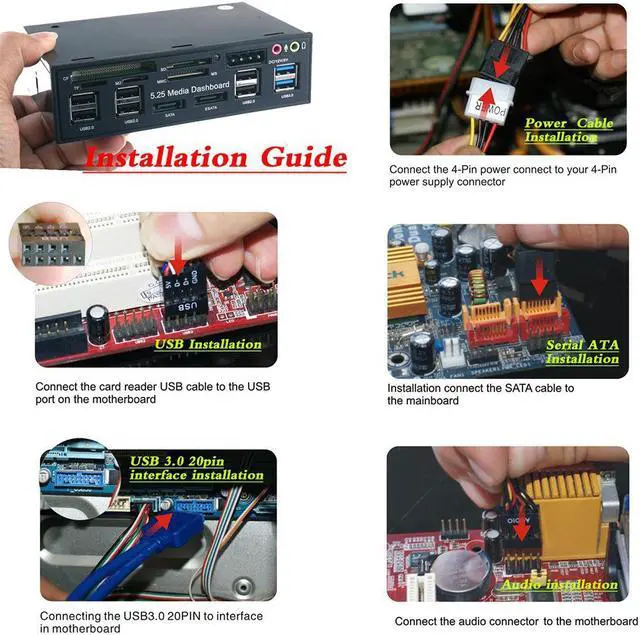

UserManual(English&Chinese)Note: Card reader can read only one memory card at one time. Notice the connection direction of the 4pin power connector, if not obey the correct link method, a short circuit will be caused. Unplug the 4pin cord connected to the computer when the computer can not be shut down.
