5.25 inch Media Dashboard Card Reader USB 2.0/3.0 20 pin e-SATA SATA Front Panel For PC Desktop

Multifuntion 5.25inch Media Dashboard Card Reader USB 2.0 USB 3.0 20 pin e-SATA SATA Front Panel for Optical Drives Bay

Description:

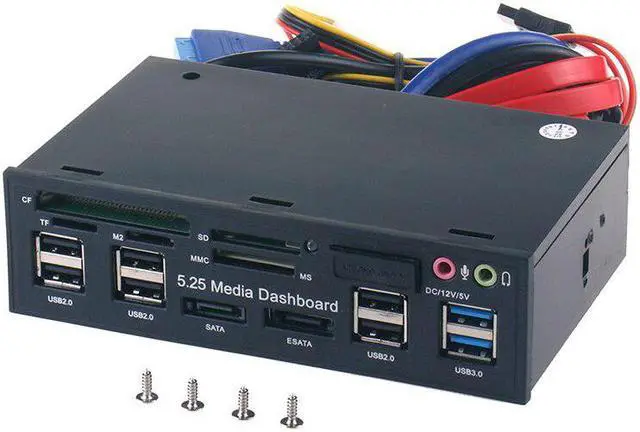

The front panel media dashboard is made of ABS material and etched on surface. It is stable with high speed and safety. It has build-in USB 3.0 Port, e-SATA, 4 pin Power port, Audio, Multi Card Reader, which can command your needs. Your desktop computer will show multi-function, high performance, and fashion with this useful media dashboard.

Features:

All-in-1 Card Reader, supports M2/TF/SD/MMC/MS/CF(Support up to 64G memory card)

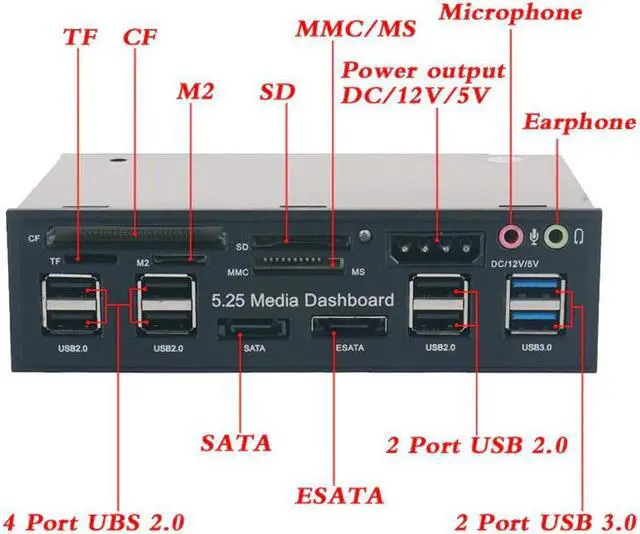

It has build-in USB 3.0 Port, USB 2.0 port, e-SATA, SATA port, 4 pin Power port, Audio, Multi Card Reader, which can command your needs.

Audio ports: Front speakers and microphone. It solves the inconvenience of the plug behind your chassis.

ESATA ports has high transfer speed, improving work efficiency.

USB 3.0 ports transfer speed up to 5Gbps; USB2.0 ports transfer speed up to 480Mbps.

LED indicates power status and hard disk read and write status

Support for Windows 2000/XP/Vista and Win7/8; Linux/MAC OS

Cables connected with mainboard: 20PIN 3.0 cable*1, 4 PIN cable*1, DuPont USB2.0 cable*1, SATA data cable*2, audio cable*1

Specifications:

Audio ports: Front speakers and microphone

Power Output: DC 12V / 5V

Power Supply Port: 4pin power port

Compatibility: Compatible for Windows 2000/XP/Vista/Win7/8; Linux / MAC OS

Color: Black

Material: Plastic

Package include:

1 x  Media Dashboard card reader

1 x User Manual
