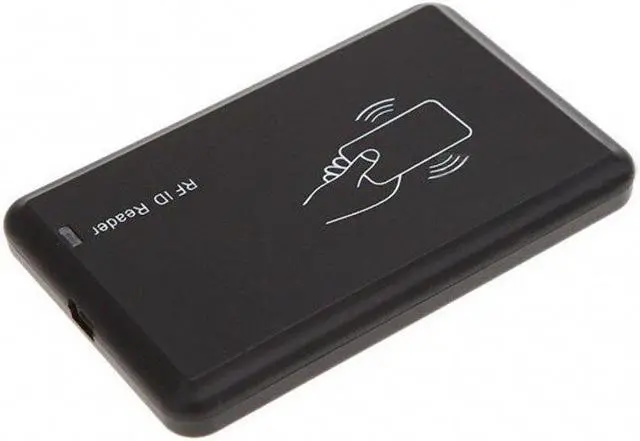

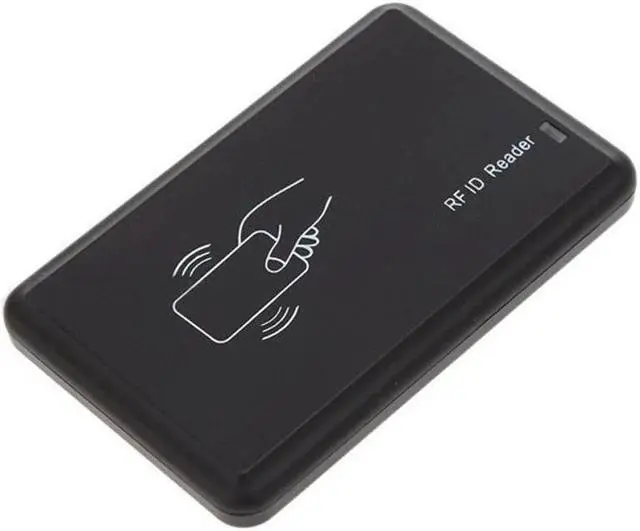

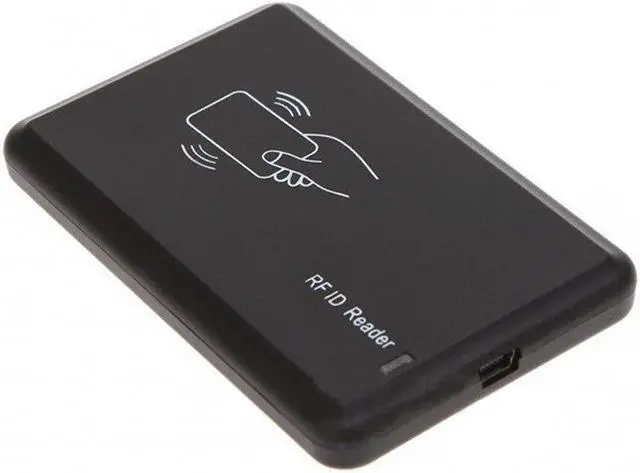

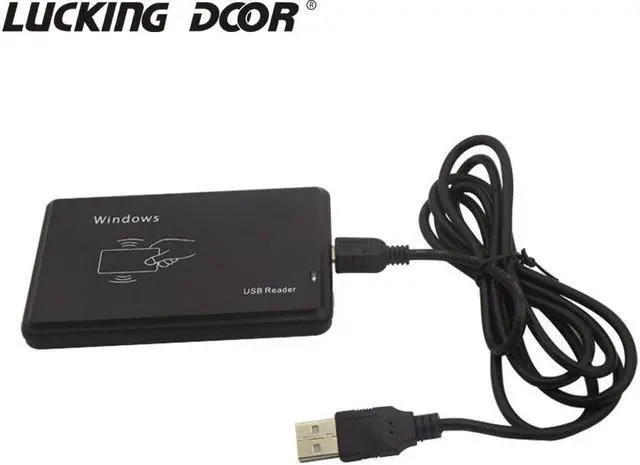

Port 13.56MHz Mifare RFID Contactless Proximity Sensor Smart magnetic card reader

Port 13.56MHz Mifare  RFID Contactless Proximity Sensor Smart magnetic card reader

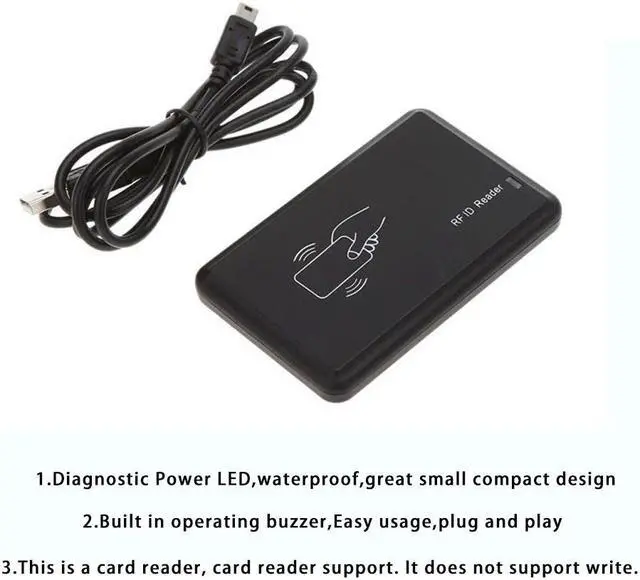

Features:

1.Diagnostic Power LED,waterproof,great small compact design

2.Built in operating buzzer,Easy usage,plug and play

3.This is a card reader, card reader support. It does not support write.

4.Directly into the computer can use. You do not need to download the program.

5. card issuer implements the serial number of the card directly to a computer via the port, users do not load when using any driver, no external power supply, the card issuer is connected to the computer port, card indicator alternates red and green, until you hear even after the buzzer beeps twice, only the red light indicator shows, you can start card, credit card after the card number is displayed at the cursor location.

6.Support systems: operating system Windows 98 XP32 XP64 2000 Vista 32 Vista 64, Android

7.Operating frequency: 13.56MHz

8.Support CardM1, S50 and S70 143A protocol card

9.Reading distance:  0-80MM

10.Working current: 100mA Indicator Lamp LED Indicator Lamp

11.Physical Dimensions: 105mm*70mm*12mm

12.Card format:

Optional 8H10D (before 10), 6H10D, 6H8D, 2H3D + 4H5D (after 8), 10H, 8H, 6H, 4H5D+4H5D,

Card reading time < 100MS

Card reading speed 0.2S

card reading distance 0.5S

Communication Interface Interface

Power-on mode power-on

Working environment temperature (-20 ~85 C) humidity (5%~95%) working voltage 5V

Built-in horn buzzer, controllable LED and buzzer

output format 10-bit 10-bit (other format consulting customer service)
