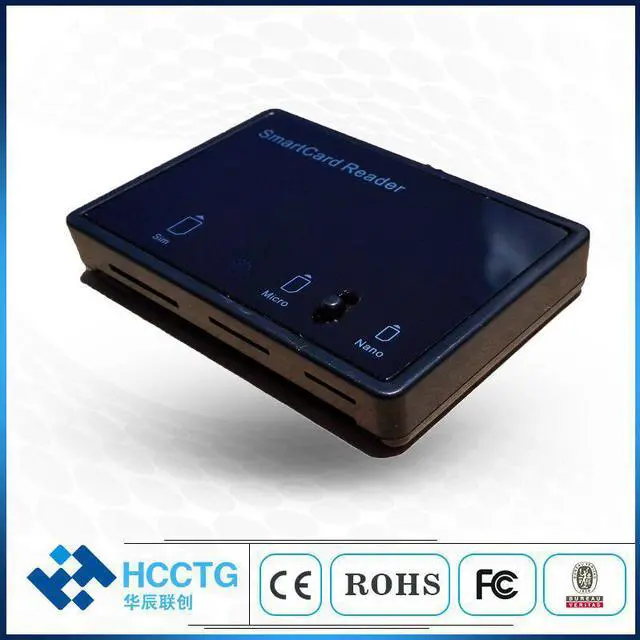

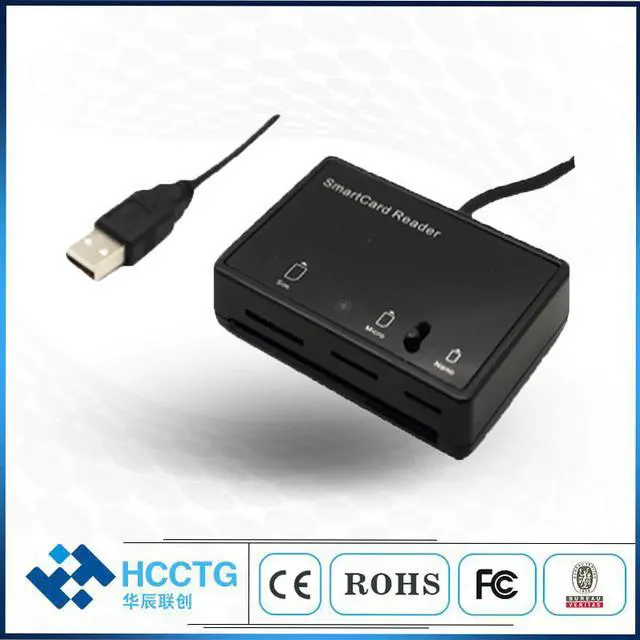

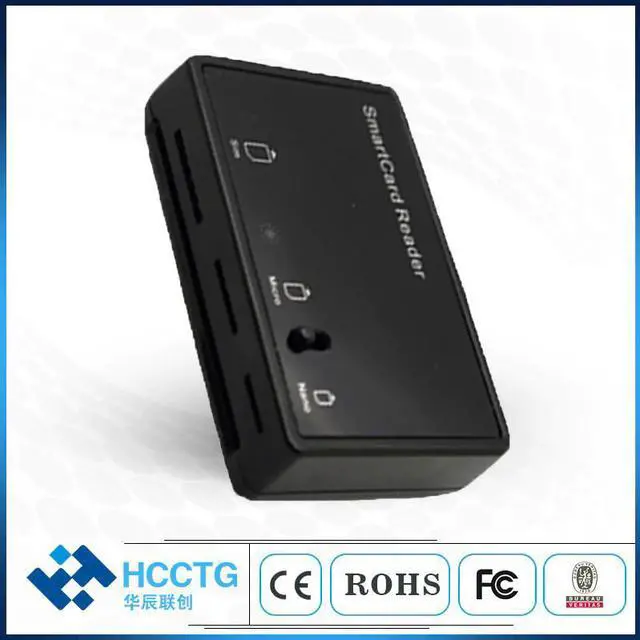

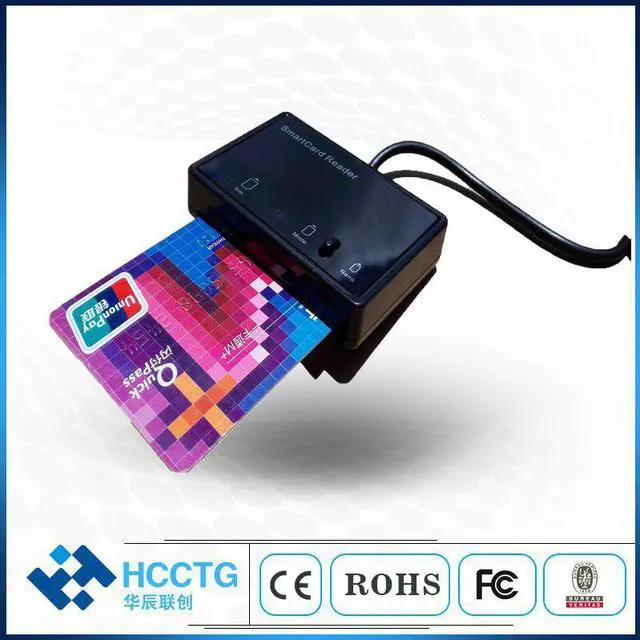

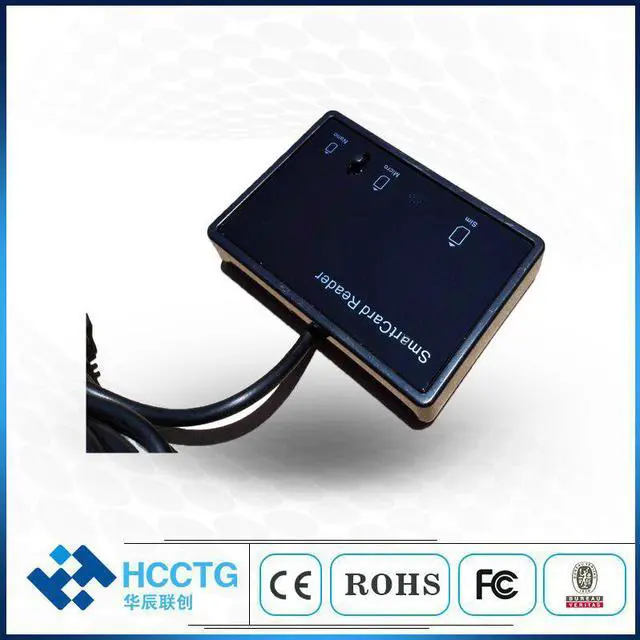

Portable Linux Android USB Multi SIM Card Reader With With PC/SC CCID Protocal DCR3516
General
Support standard card / SIM card / Micro SIM card / NANO SIM card
Feature
Ergonomic and cost-effective design software Compatible with identities SCR35xx card reader series Level 1 certified Compatible with all major ISO7816 standard smart cards on the market
Application
The reader is suitable for a variety of uses such as home banking, network security, tax, social security, secure login, electronic signature, corporate information security, email, encryption, membership cards, digital TV, mobile and telecom operators, e-coupons and games The application of high safety.
DCR3516 is a telecommunications industry operators must use the front of the application card reader, the use of convenience, a substantial provision of work efficiency
Specification
Interface
Hi-Speed USB 2.0 (12 Mbps)
Power source
From USB
Smart Card / PSAM Card (contact)
T=0, T=1 protocol support
Memory card support through SCM MCARD API Communication speed up to 600 kbps (PPS, Fl parameter) Frequency up to 8MHz (PPS, Dl parameter)
Support ISO 7816 Class A and AB smart card 8
contacts - ISO 7816 location
Service life
Up to 100.000 times (friction type)
Cable
1.5m long with USB type A connector
Optical
Red LED
Operating system
Win dows® XP/Vista/7/8 (32&64Bit)
Win dows® Server 2003/2008/2008 R2/2012
Win dows® CE 6.0, 7.0
Mac OS 10.5.x, 10.6.x, 10.7.x, 10.8.x
Linux 2.4.x, 2.6.x (32&64Bit)
Android 2.3 above
Size
68*47*13mm(L*W*H)
Weight
78g
API Software
