Card Reader MSRE206 Magstripe Writer Encoder Swipe USB Interface Black VS 206 605 606 Ship From UK US CN Stock

Card Reader MSRE206 Magstripe Writer Encoder Swipe USB Interface Black VS 206 605 606 Ship From UK US CN Stock

Description

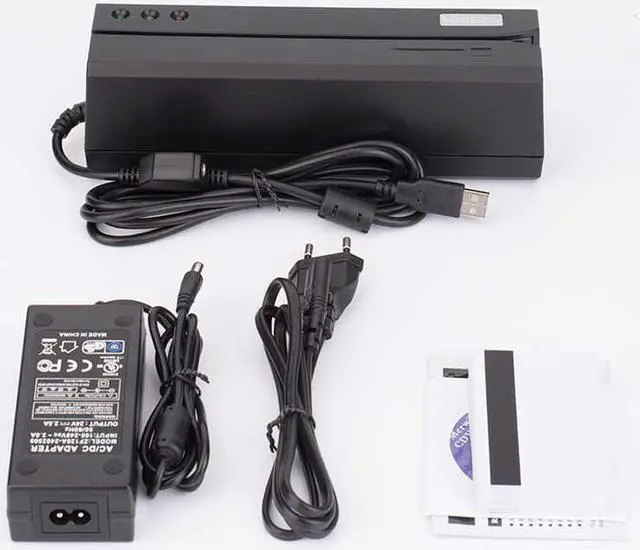

MSRE206, compatible with MSR206 completely. It is ideal for access control, time keeping,  ID recognition & verification and related applications. In fact, wherever a stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSRE206 reader/writer. The MSRE206 is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system.

Specifications

1).  Communication: Standard USB

2).  3-track version can read/write all three tracks data, 300-4000 oe

3).  Program software for Windows 98/Me/XP/Vista

4).  Reading/Writing stripe card complied with ISO formats

Mechanical:

1).  Body: ABS 94V-0 / Metal housing optional

2).  Swipe: Manual, single direction

3).  Outline: 212Lx64Wx63H mm

4).  Weight: 1.4Kg approx.

Environment:

1).  Operation: -10oC to 60oC  10 to 85% humidity, non condensing

2).  Storage:    -30oC to 70oC  10 to 90% humidity, non condensing

Consumption:

1).  Current/operating Typical 350mA Max

2).  600mA plus for each writing track

3).  Power supply: External switching Power, Input: 100-240VAC, Output: 24VDC 2.5A
