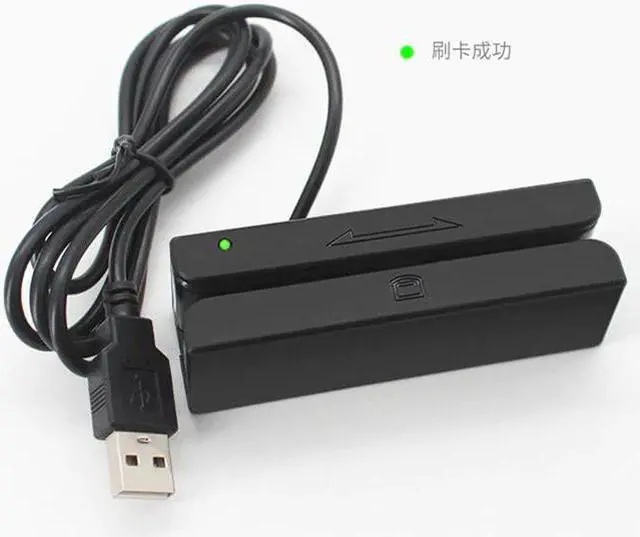

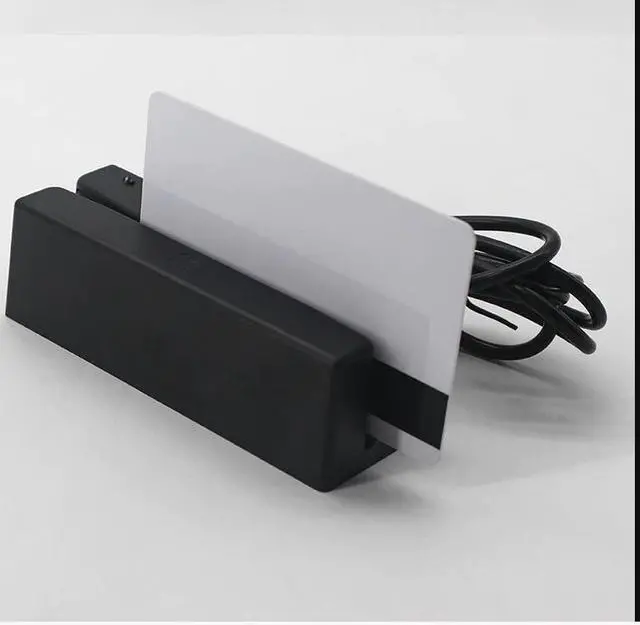

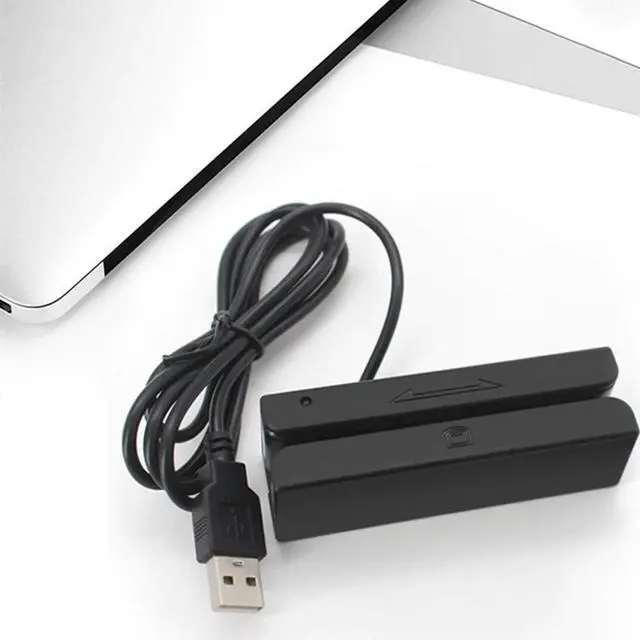

Magnetic Card Reader MSR100 Stripe RS232 USB 3 Track Strip For Swipe Bar Code Reader

Magnetic Card Reader MSR100 Stripe RS232 USB 3 Tracks Strip For Swipe Bar Code Reade

Features

I can read Track 1, 2 and 3 hi/lo-co magnetic cards which can swipe in either direction and it is designed to offer a card reading solution for ISO 7811/12 formats.

Specification

Technic Details: Recording Density: 201 BPI, 75 BPI or 210 BPI

Recording Capacity: 79 Characters, 40 Characters or 107 Characters

Power Supply: +5V DC ±5%

Power Consumption: 65mA(max.)

Head Function: Read only 1.5mm

Card Thickness: Plastic 0.76 ± 0.08mm

Operation Speed: 10- 150cm/sec

Error Rate: Less than 0.5%

Interface: USB

Operation Locus: Indoors only

Cable length: 150cm

Dimension(L x W x H): 90 x 26 x 28mm

Lifetime of Header: 800,000 card passes (1 pass: one swipe)

Weight: Appro. 90g

RS232 Features:

With indication of light

Low power consumption, good compatibility

ISO 7811/12/13/14

RS232 interface

Easy Programmable

RS232/PS2/USB/TTL

Cards can be swiped and read in both directions

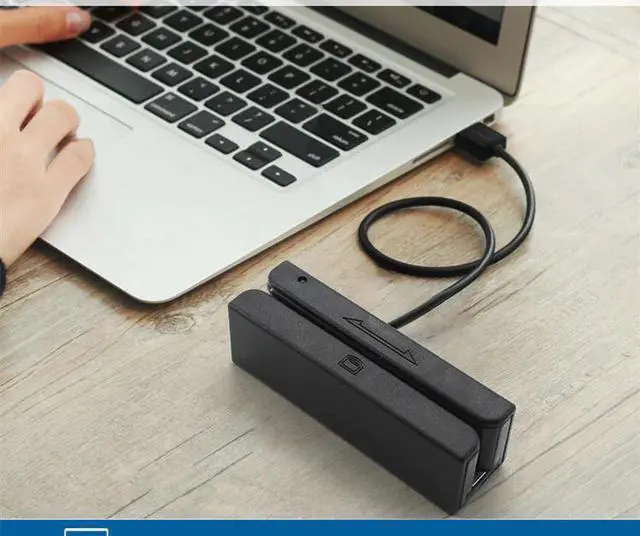

Readers can be affixed to most computer keyboards or to any flat surface,can be connected tp any PC or MAC via keyboard wedge or USB interface.

Specifications:

Technic Details: Recording Density: 201 BPI, 75 BPI or 210 BPI

Recording Capacity: 79 Characters, 40 Characters or 107 Characters

Power Supply: +5V DC ±5%

Power Consumption: 65mA(max.)

Head Function: Read only 1.5mm

Card Thickness: Plastic 0.76 ± 0.08mm

Operation Speed: 10- 150cm/sec

Error Rate: Less than 0.5%

Interface: USB (We also have PS/2 and RS232 interface)

Weight: Appro. 130g
