Rfid Contactless Smart Card Reader Module HCC-T10-DC1 NFC Reader Module

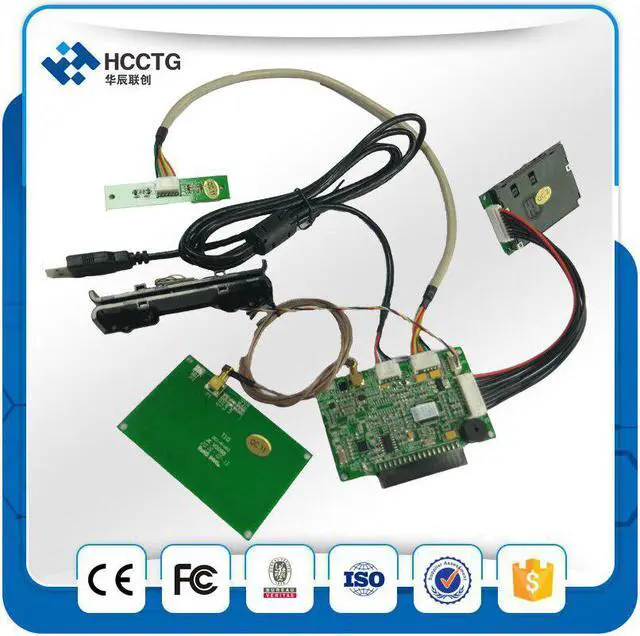

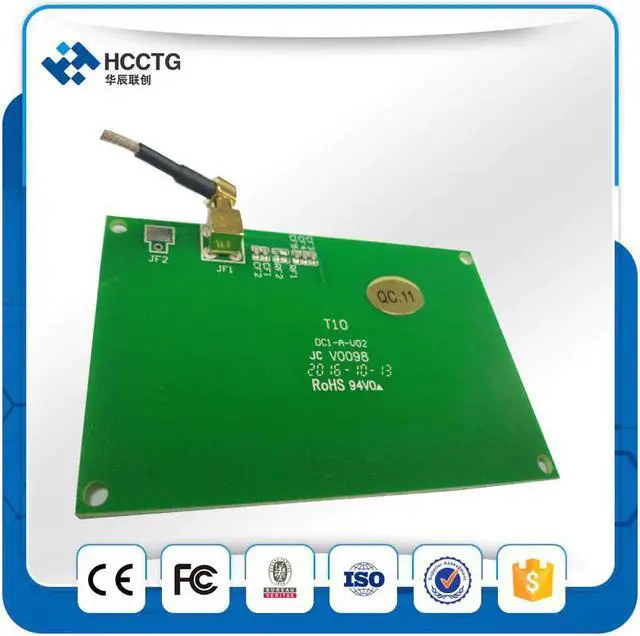

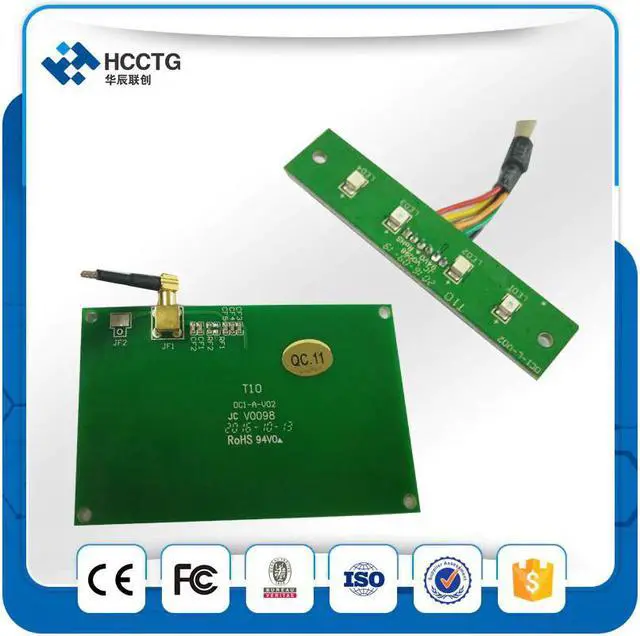

Rfid Contact Smart Msr Psam Card Reader Module With Hcc-T10-Dc3 Introduction HCC-T10-DC is a 3-in-1 reader / writer module, including contact smart cards, contactless cards and magnetic stripe cards.  The HCC-T10-DC comes with a detachable antenna, contact smart card connector, magnetic head and 4 SAM sockets. The reader module is designed for fast and easy integration into embedded systems, such as vending machine, secure access control, ATM, kiosks, gaming machines, scanner and POS terminal. Features 2.0 full speed HID compliance Firmware upgradable RS232 interface  4 LED indicators Support buzzer Contact smart card interface ISO7816 T=0 CPU card ISO7816 T=1 CPU card  Contactless smart card interface Compliant with ISO14443 part 1-4, Type A, Type B Read/write Mifare Classics 4 SAM card sockets Magnetic Stripe Reader Support 1/2/3 tracks reading Bi-directional OS support:  Windows XP/7/8/10 Linux Support Card Types  (1)MCU Cards HCC-T10-DC2 operates with MCU cards that follow: T=0 or T=1 protocol ISO 7816-Compliant Class A, B, C (5V, 3V, 1.8V) (2)Memory-based Smart Cards HCC-T10-DC operates with memory-based smart cards that follow: Cards following the I2C bus protocol (free memory cards), including: Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024 Cards with intelligent 256 bytes EEPROM and write protect function, including: SLE4432, SLE4442, SLE5532, SLE5542 Cards with intelligent 1K bytes EEPROM and write-protect function, including: SLE4418, SLE4428, SLE5518, SLE5528 Cards with secure memory IC with password and authentication, including: AT88SC153, AT88SC1608 Cards with Security Logic with Application Zone, including: AT88SC101, AT88SC102, AT88SC1003
