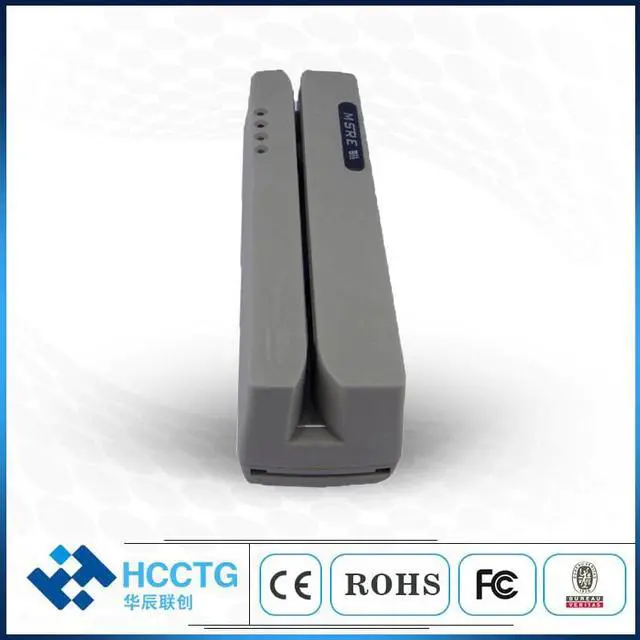

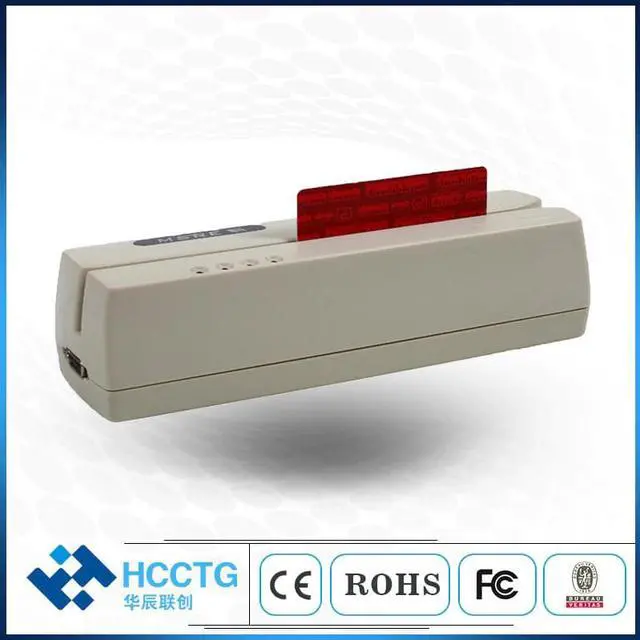

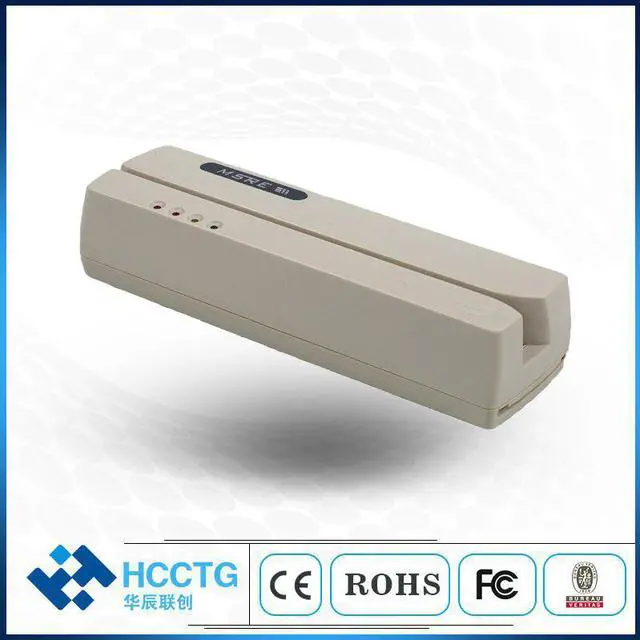

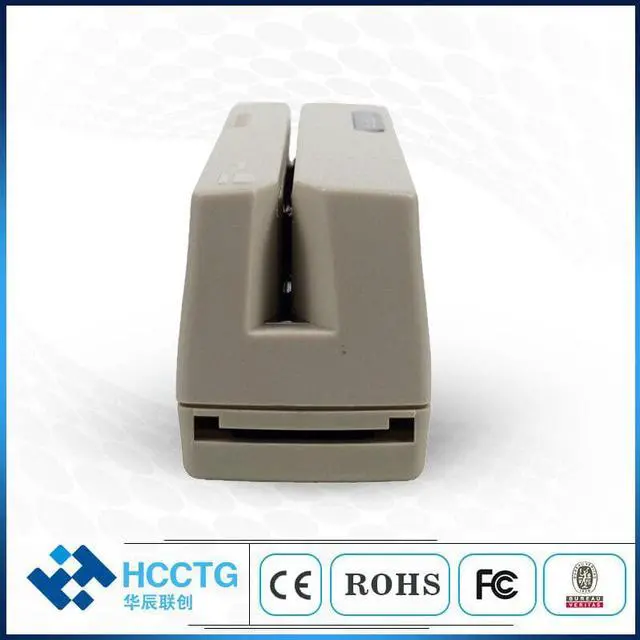

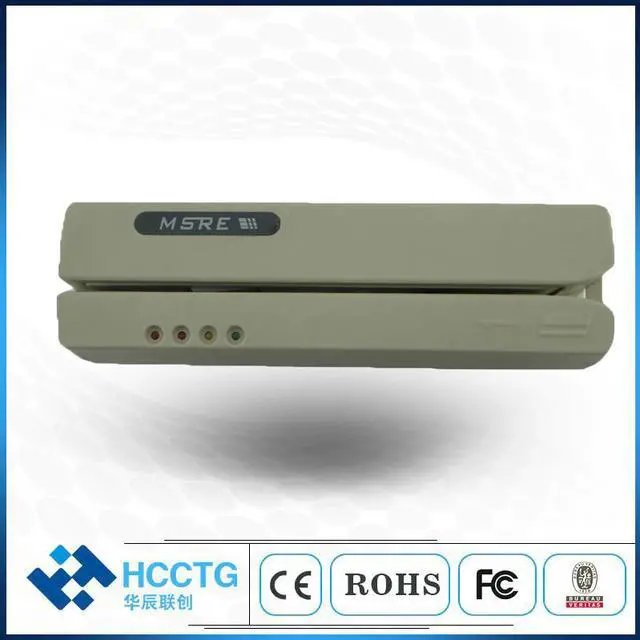

and RS232 Interface Optional Android 1/2/ 3 Tracks Reader And Writer Magnetic Card Compatible MSR 206 Magnetic HCC206
- Good Quality
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Operating voltage
24VDC +/- 5%
Consumption
Typical 350mA Max. and 600mA plus for each writing
track
Power Supply
External Power Adapter 24 V/2.2A
Communication
Standard RS232 signal levels
Ripple
50mVp-p or less
Dielectric strength
500VDC for 1 minute
Dimension (L*W*H)
210*62*65 MM
Weight
Approx. 1.5kg
Manual, single direction
Ordering Information
HCC206-44 Dual track (track I & II) MSR encoder
HCC206-55 Dual track (track II & III) MSR encoder
HCC206-66 Triple track (track 1, II, & III) MSR
encoder
Interconnection
Cable
5 feet, DB9
Pin Assignment
Pin 1 Shield
Pin 2 TXD (HCC206 data transmit)
Pin 3 RXD (HCC206 data receive)
Pin 5 Circuit ground
Default
9600 baud, 8 bit/character, no parity, 1 stop bit
Environmental
Operation
0° to 50° C, 15 to 85% humidity
Storage
30° to 70° C, 10 to 90% humidity
Read Card
Track 1 Track 2 Track 3
Bit density
210 bpi 75/210 bpi 210 bpi
Coercive force
Read/Write 300-4000 O e Mag. card
Coercive force
0.76-1.2mm
Performance
Write speed
5~30ips
Write jitter
Interval < +/-10%, Sub-interval < +/-12%
Head life
Min. 500K swipes for both read/write head
