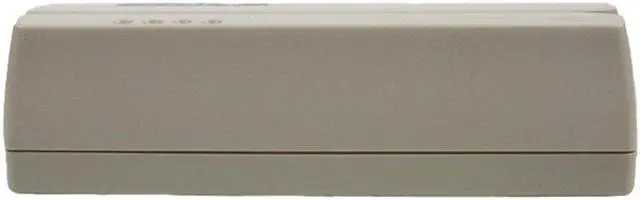

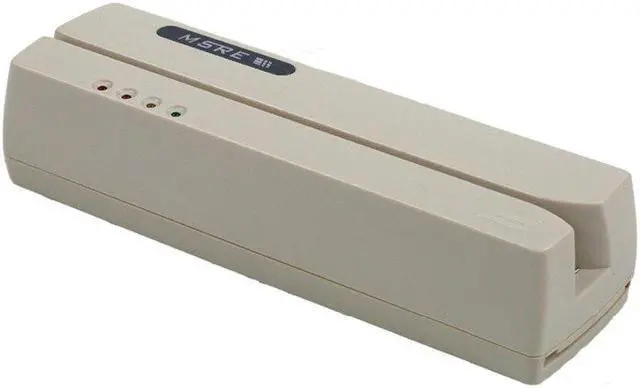

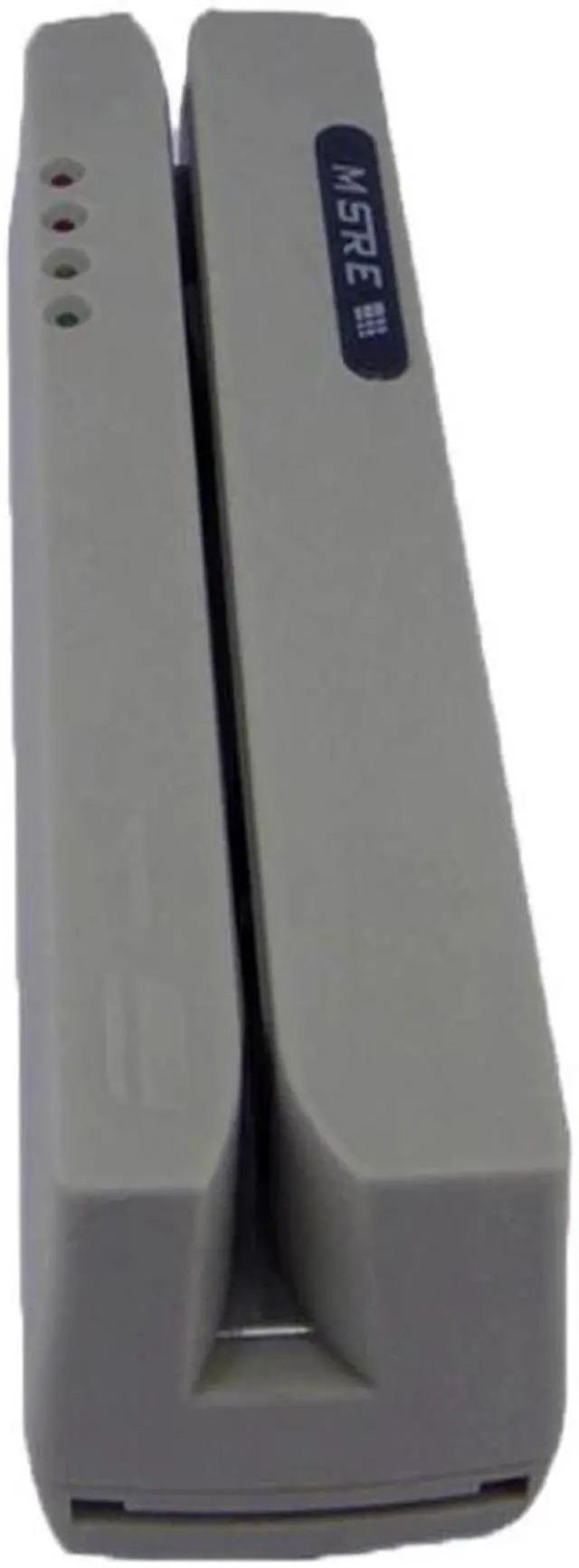

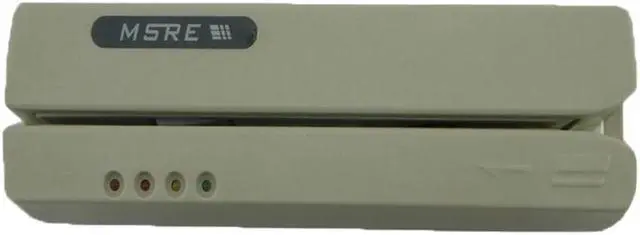

Card Reader And Write EMV Smart IC Stripe Chip Card Reader/Writer For Track 1, 2 & 3 HCC-206 Software For free

Specification

Operating voltage

24VDC +/- 5%

Consumption

Typical 350mA Max. and 600mA plus for each writing

track

Power Supply

External Power Adapter 24 V/2.2A

Communication

Standard RS232 signal levels

Ripple

50mVp-p or less

Dielectric strength

500VDC for 1 minute

Dimension (L*W*H)

210*62*65 MM

Weight

Approx. 1.5kg

Manual, single direction

Ordering Information

HCC206-44 Dual track (track I & II) MSR encoder

HCC206-55 Dual track (track II & III) MSR encoder

HCC206-66 Triple track (track 1, II, & III) MSR

encoder

Interconnection

Cable

5 feet, DB9

Pin Assignment

Pin 1 Shield

Pin 2 TXD (HCC206 data transmit)

Pin 3 RXD (HCC206 data receive)

Pin 5 Circuit ground

Default

9600 baud, 8 bit/character, no parity, 1 stop bit

Environmental

Operation

0° to 50° C, 15 to 85% humidity

Storage

30° to 70° C, 10 to 90% humidity

Read Card

Track 1 Track 2 Track 3

Bit density

210 bpi 75/210 bpi 210 bpi

Coercive force

Read/Write 300-4000 O e Mag. card

Coercive force

0.76-1.2mm

Performance

Write speed

5~30ips

Write jitter

Interval < +/-10%, Sub-interval < +/-12%

Head life

Min. 500K swipes for both read/write head
