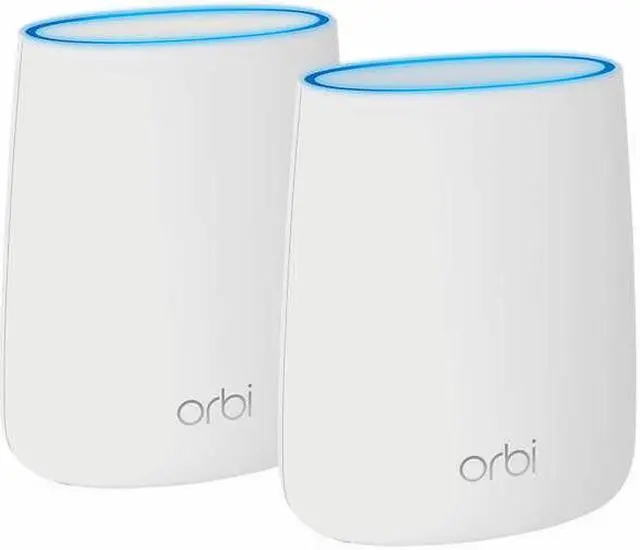

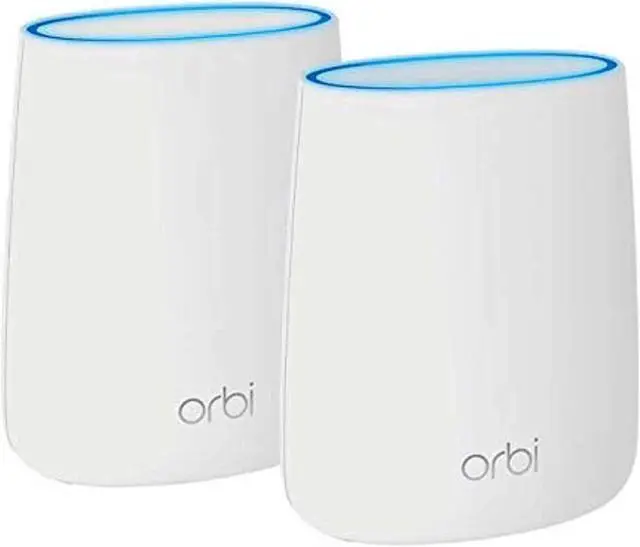

Technical Specifications Model Number RBK22 What's in the Box? * One (1) Orbi Mini Router (RBR20) * One (1) Orbi Mini Satellite (RBS20) * One (1) 2m Ethernet cable * Two (2) 12V/ 1.5A power adapters * Quick start guide What Do I Need for Orbi to Work? * High-speed Internet connection * Connect to existing modem or gateway Physical Specifications * Orbi Mini Router (RBR20) -
Dimensions: 5.6 x 2.4 x 6.6 in -
Weight: 1.05 lb * Orbi Mini Satellite (RBS20) -
Dimensions: 5.6 x 2.4 x 6.6 in -
Weight: 1.05 lb Technical Specifications * Orbi AC2200 Router & AC2200 Satellite (866+866+400Mbps) * Simultaneous Tri-band WiFi -
Radio 1: IEEE 802.11 b/g/n 2.4GH z- 256QAM support -
Radio 2: IEEE 802.11 a/n/ac 5GHz- 256QAM support -
Radio 3: IEEE 802.11 a/n/ac 5GHz- 256QAM support *
Tx/Rx: 2x2 ( 2.4GH z) + 2x2 (5GHz) + 2x2 (5GHz) dedicated backhaul * IEEER 802.11 a/b/g/n/ac * MU-MIMO capable for simultaneous data streaming * Implicit & Explicit Beamforming for 2.4GH z & 5GHz bands *
WiFi Security: WPA/PSK2 * Processor - Router & Satellite - Powerful Quad-Core 710MHz processor each * Memory - Router & Satellite - 256MB Flash and 512MB RAM each * Antenna - Four (4) high performance internal antennas each * Ports - Orbi Router - Two (2) 10/100/1000Mbps Gigabit Ethernet ports - One (1) WAN & one (1) LAN * Ports - Orbi Satellite - Two (2) 10/100/1000Mbps Gigabit Ethernet LAN ports * Power On/Off switch * Push Button WPS and SYNC support Integrations * Voice Control - Amazon Alexa - The Google Assistant * Circle with Disney - Smart Parental Controls to manage content and time online for all your
