Ubiquiti UniFi UDR 5G MAX Dream Router Wifi UDR-5G-MAX-US

Be the first to review this product...
  • Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage. Certified with AT&T and T-Mobile
  • UniFi Application Suite
  • Managed UniFi Devices: 30+
  • Managed Cameras: (5) HD, (2) 2K, (1) 4K
  • Simultaneous Users Connected: 300+
  • Max. WAN Port Count: 4
  • Default WAN Ports: (1) 10G SFP+, (1) 2.5 GbE RJ45

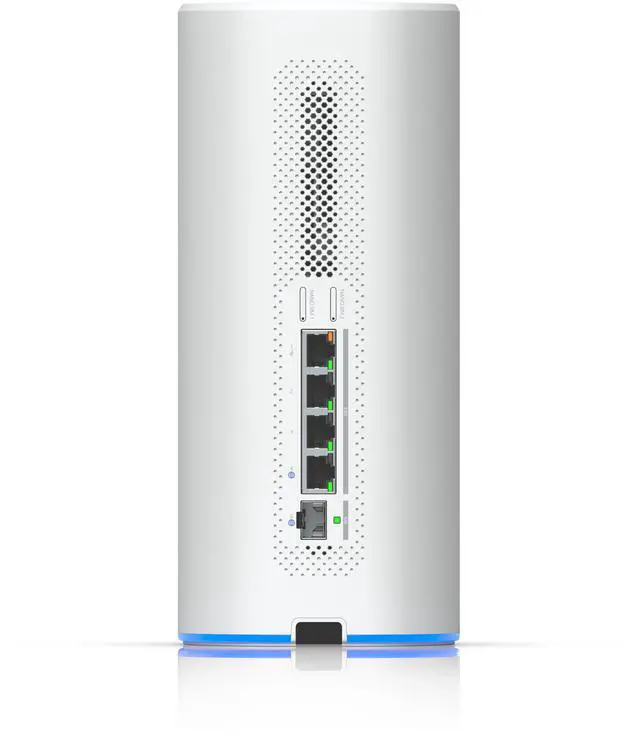

  • Port Layout:
  • 2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M)
  • 10G SFP+: 1 (10G/1G)
  • IDS/IPS Throughput: 2.3 Gbps
  • Form Factor: Desktop
  • Coverage Area: 160 m² (1,750 ft²)
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Overview
  1. Dimensions: 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
  2. UniFi Application Suite:
  3. Network:
  4. Protect:
  5. Access:
  6. Talk:
  7. Connect:
  8. Managed UniFi Devices: 30+
  9. Managed Cameras: (5) HD, (2) 2K, (1) 4K
  10. Simultaneous Users Connected: 300+
  11. Max. WAN Port Count: 4
  12. Default WAN Ports: (1) 10G SFP+, (1) 2.5 GbE RJ45
  13. Port Layout:
  14. 2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M)
  15. 10G SFP+: 1 (10G/1G)
  16. IDS/IPS Throughput: 2.3 Gbps
  17. Form Factor: Desktop
  18. Coverage Area: 160 m² (1,750 ft²)
Security
  1. Stateful Firewall:
  2. Application-Aware Layer 7 Firewall:
  3. DPI & Traffic Identification:
  4. Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps):
  5. Content Filtering:
  6. Intrusion Prevention (IPS/IDS):
  7. Ad Blocking:
  8. IDS/IPS Signatures: 20,000+ with CyberSecure
VPN & SD-WAN
  1. License-Free SD-WAN:
  2. Site-to-Site VPN:
  3. Site Magic:
  4. IPsec:
  5. OpenVPN:
  6. VPN Server:
  7. Identity Endpoint One-Click VPN:
  8. Teleport Zero-Configuration VPN:
  9. WireGuard:
  10. OpenVPN:
  11. L2TP:
  12. VPN Client:
  13. OpenVPN:
  14. WireGuard:
  15. Site-to-Site VPN Single Tunnel Throughput:
  16. Site Magic: 20
  17. VPN Client Single Tunnel Throughput:
  18. WireGuard: 8
  19. OpenVPN: 8
Networking
  1. Multi-WAN Load Balancing:
  2. Dynamic Routing:
  3. OSPF:
  4. Advanced QoS:
  5. Multicast DNS (mDNS):
  6. Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT):
  7. Integrated RADIUS Server:
  8. RADIUS over TLS (RadSec):
  9. Additional Internet Failover with UniFi LTE Backup:
  10. Internet Quality and Outage Reporting:
  11. MAC Address Table Size: 2,000
  12. Virtual Network Override:
Integrated WiFi
  1. WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
  2. Throughput:
  3. 6 GHz: 5.7 Gbps
  4. 5 GHz: 4.3 Gbps
  5. 2.4 GHz: 688 Mbps
  6. MIMO:
  7. 6 GHz: 2 x 2 (DL/UL MU-MIMO)
  8. 5 GHz: 2 x 2 (DL/UL MU-MIMO)
  9. 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  10. Antenna Gain:
  11. 6 GHz: 8 dBi
  12. 5 GHz: 5 dBi
  13. 2.4 GHz: 4 dBi
  14. Max. TX Power:
  15. 6 GHz: 22 dBm
  16. 5 GHz: 26 dBm
  17. 2.4 GHz: 23 dBm
  18. Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  19. Max. BSSIDs: 4 per Radio
  20. Supported Data Rates:
  21. 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps
  22. 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps
  23. 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
  24. 802.11n: 6.5 Mbps to 300 Mbps
  25. 802.11g/a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  26. 802.11b: 1, 2, 5.5, 11 Mbps
Cellular
  1. 5G NR:
  2. Category: 5G NR Sub-6
  3. Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
  4. Max. TX Power: HPUE power class 2: 26 dBm
  5. 4G LTE:
  6. Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
  7. Max. TX Power: HPUE power class 2: 25 dBm
  8. 3G UMTS:
  9. Frequency Bands: B1, B2, B4, B5, B8, B19
  10. Peak Data Speed:
  11. 5G NSA: Downlink 3.4 Gbps / Uplink 560 Mbps
  12. 5G SA: Downlink 1.8 Gbps / Uplink 650 Mbps
  13. 4G LTE: Downlink 1.6 Gbps / Uplink 210 Mbps
  14. Antenna Gain:
  15. 617-960 MHz: 3 dBi
  16. 1710-2700 MHz: 7 dBi
  17. 3300-5000 MHz: 8 dBi
  18. 5150-5925 MHz: 8 dBi
  19. SIM: (2) Nano SIM, (1) Nano-SIM or eSIM
Hardware
  1. NVR Storage: Pre-installed 64 GB microSD for NVR
  2. Expansion Slot: MicroSD Card
  3. PoE Budget: 15.4W
  4. Max. PoE Wattage per Port by PSE: 15.4W (PoE)
  5. Voltage Range PoE Mode: 44-57V
  6. Max. Power Consumption: 34.5W (Excluding PoE output)
  7. Power Method: DC jack (54V DC/1.1A)
  8. Power Supply: 54V DC/1.1A (Adapter included)
  9. Supported Voltage Range: 100-240V AC
  10. Heat Dissipation: 115 BTU/hr (Excluding PoE output)
  11. Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
  12. System Memory: 3 GB
  13. Weight: 1.4 kg (3.1 lb)
  14. Enclosure Material: Polycarbonate

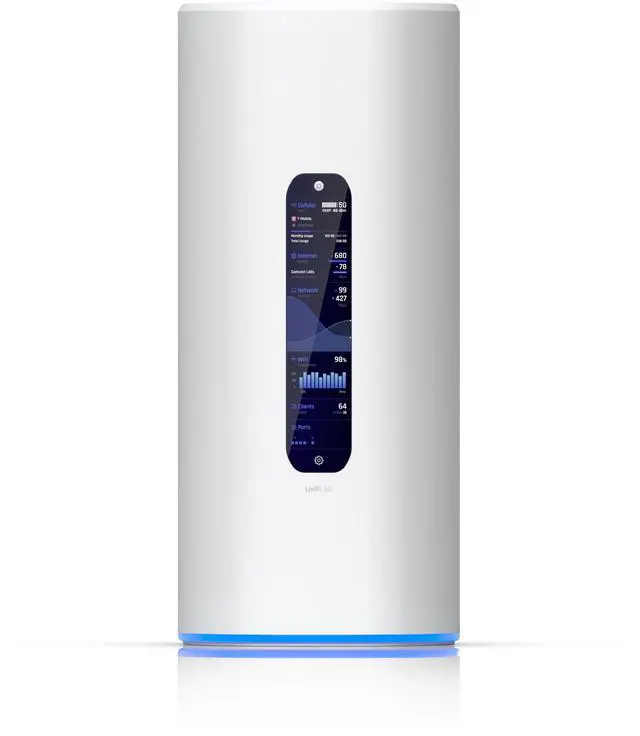

  15. LCM Display: 4.7" touchscreen
  16. Management: Ethernet, Bluetooth
  17. LEDs: Ethernet (), SFP+ (), System ()
  18. Button: (1) Factory reset
  19. ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
  20. Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  21. Ambient Operating Humidity: 5 to 95% noncondensing
  22. NDAA Compliant:
  23. Certifications: FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®
Software
  1. Application Requirements:
  2. Mobile App: UniFi iOS: Version 10.33.0 and later, UniFi Android: Version 10.36.1 and later
