This include 2 types , Router 3G( with usb 3.0 port) and Router 4 (no usb port ),Before you buy ,please check it clearly , We made separate introductions as followsChoose your plug ,and if you need UK or Au plug ,Please leave message with your order ,thanks
Features

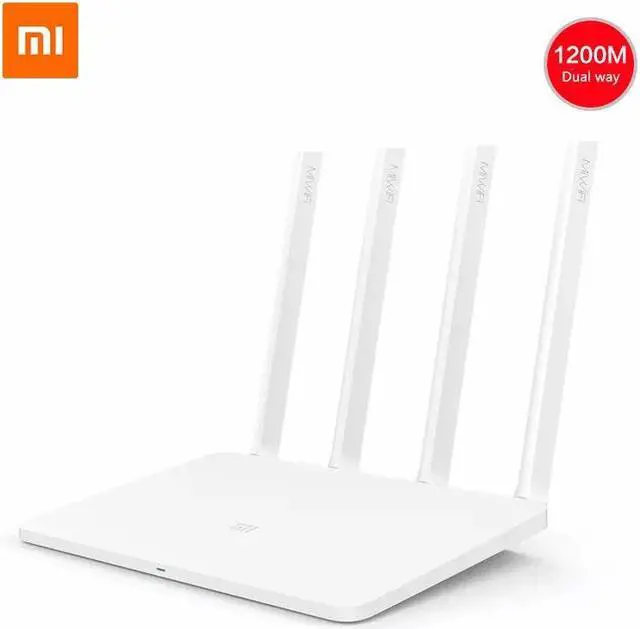

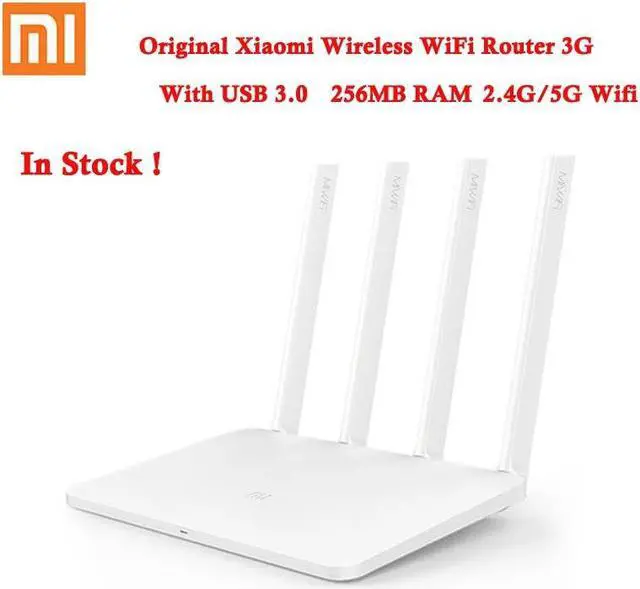

Below is the Description for Router 3G(with usb 3.0 port)
Hardware configuration
Processor: MT7621A MIPS dual-core 880MHz
ROM:128MB SLC Nand Flash
Memory :256 MB DDR3-1200
2.4 G WiFi:2X2 (support for IEEE 802.11n, maximum speed of 300Mbps)
5G WiFi:2X2 (support IEEE 802.11ac, up to 867Mbps)
Antenna:External omni-directional multi-vibrator high gain antenna 4 roots (2.4 G maximum gain 5dBi 2 root 5G maximum gain 6dBi 2)
Radiating: fin type large area aluminum radiator
Machine interface
2 10/100/1000m adaptive LAN port (Auto MDI/MDIX)
1 10/100/1000m adaptive WAN port (Auto MDI/MDIX)
1 red/blue/yellow LED indicator light
1 system restore factory setting button
1 power input interface
Wireless parameter
Synchronous dual frequency :2.4 GHz and 5GHz
2.4 GHz wireless Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5 GHZ Channel: 149153157161165
5GHz DFS Channel: 36,40,44,48,52,56,60,64
Modulation Mode
11bDSSSDBPSK(1Mbps),
DQPSK(2Mbps),CCK(5.5/11Mbps)
11a/gOFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),
16QAM(24/36Mbps),64QAM(48/54Mbps)
11nMIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
Rate set: MCS0 ~ MCS15
Ac: MIMO - OFDM: BPSK, QPSK, 16 qam,
64 qam and 256 qam.
Rate set: MCS0 ~ MCS9 (support 2 streams)
Software parameters
