2.4G&5.8G 300Mbps~1200Mbps 48V PoE 27dBm Outdoor wireless AP CPE wifi router signal booster base station with antennas for park

2.4G&5.8G 300Mbps~1200Mbps 48V PoE 27dBm Outdoor wireless AP CPE wifi router signal booster base station with antennas for park

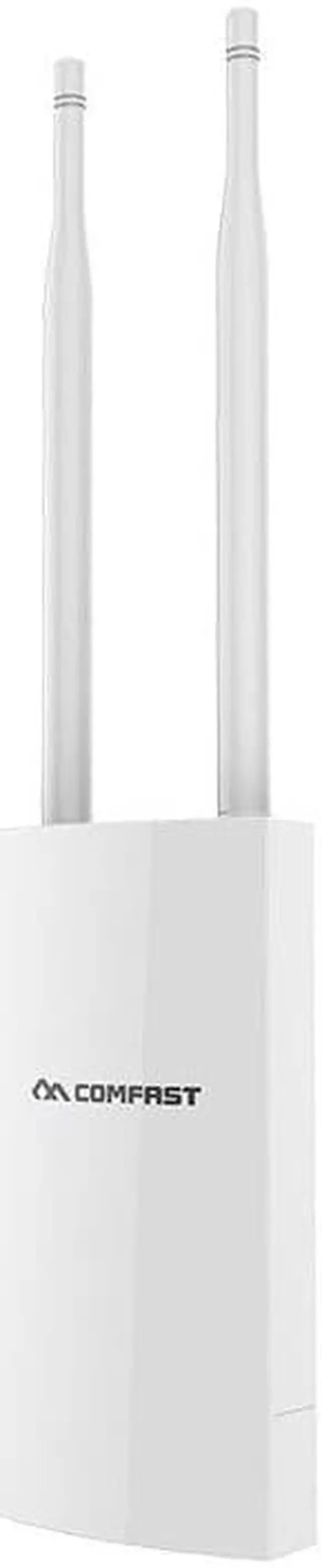

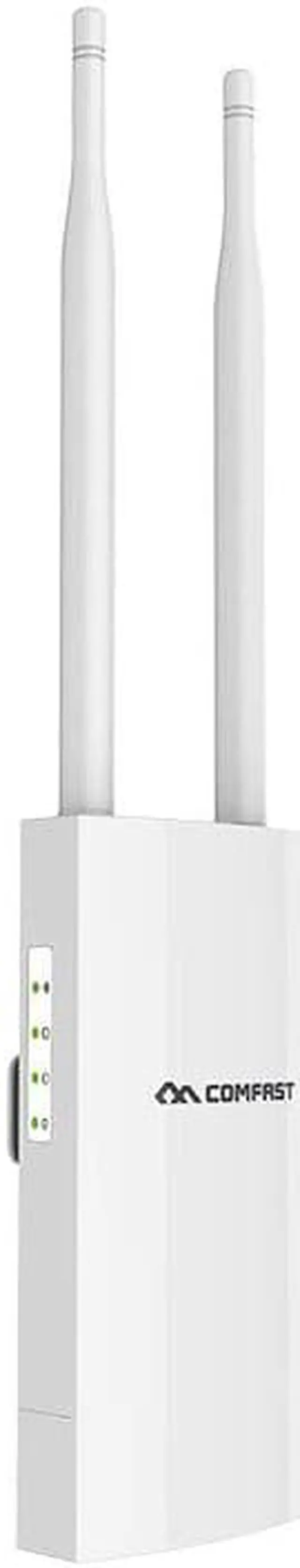

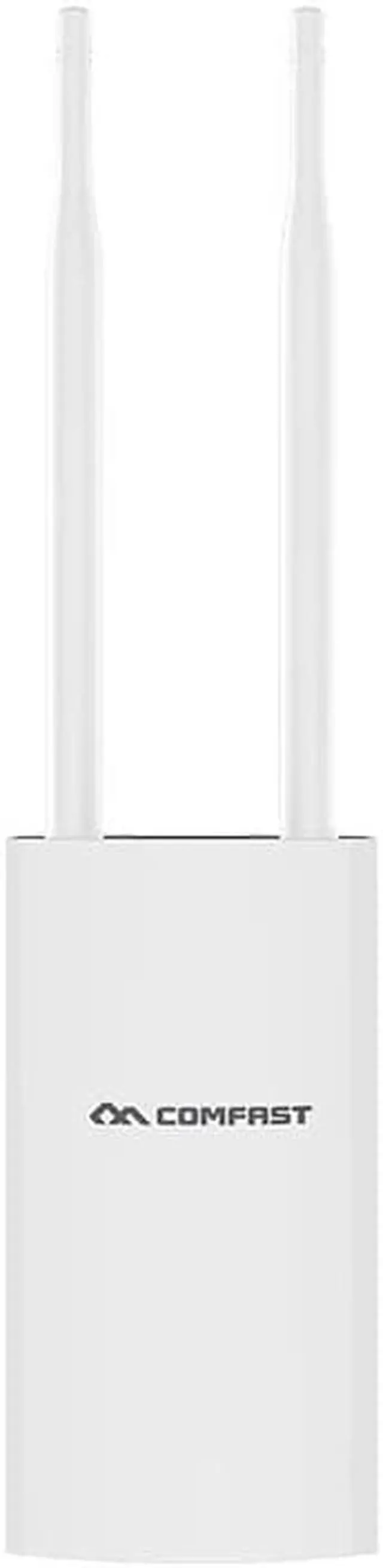

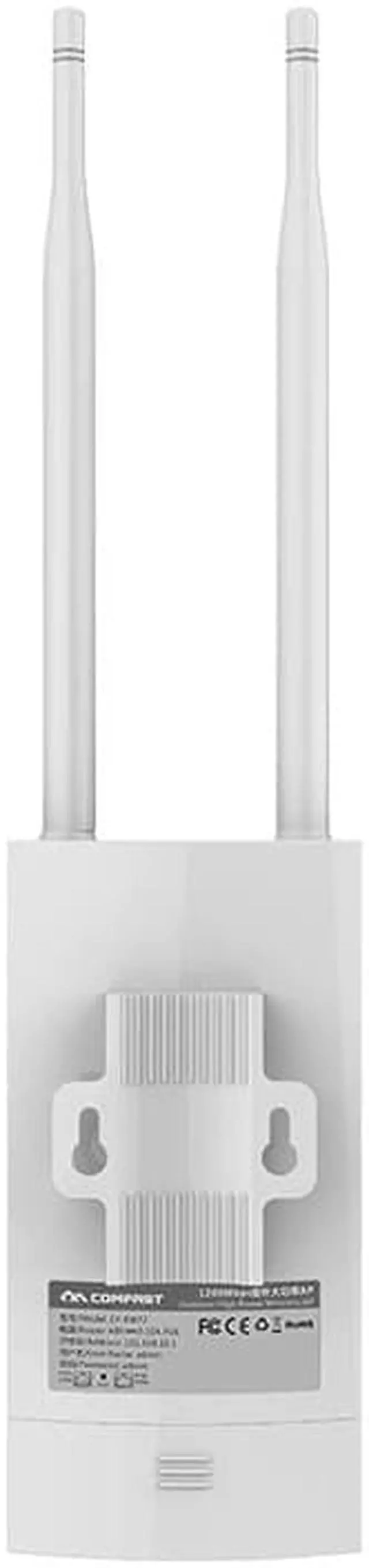

CF-EW72 1200Mbps High power Wireless Outdoor AP WIFI Router

1.1200Mbps Dual band outdoor AP , 128MB DDR ,16MB Flash

2.Qualcomm QCA9531+QCA9886 Chipset ,PA Chip:2.4Ghz SE2576L + 5.8Ghz SKY85728-11

3.External 2*5dBi antenna,Built in watchdog chipset

4.2.4Ghz : 300Mbps , 5.8Ghz : 867Mbps

5.Support 48V 0.32A POE Adapter

6.Transmit power :500mW(27dBm)

7.With 1*10/100Mbps LAN RJ45 Ethernet port ,1*10/100Mbps WAN RJ45 Ethernet port , POE supply power,1*Reset Button

8.Size:353*85*43.5mm

9.Support 120+ users , High power wide coverage

10.Application for park / school / Driving school / Plant area / Shopping mall / Village

Specifications:

High power 500mW and dual polarization delivers long-range coverage

Passive PoE(power over Ethernet) supports for flexible deployment

Weatherproof IP66-rated housing resists harsh climates.

Dual band speed up to 2.4GHz 300Mbps and 5GHz 867Mbps.

Supports AP, Router, Repeater,WISP as operation modes

EW72 is designed to provide WISP, CPE solutions and long-range wireless network solution for video surveillance and transmission. With two omni-directional 5dBi dual-polarized antennas and strong transmit power of up to 500mW, it provides a compelling performance solution for small and growing business at a very affordable price and also provides an efficient way to pick up and maintain a stable signal for a wireless network connection from long distance.

Withstand harsh climates:

Easy Installation With Power over Ethernet(POE)

Package content:

1*User manual
