5.8G 300Mbps Outdoor Wifi CPE Wireless bridge Wifi Repeater Amplifier Point to Point 1-3KM Wifi Transmission Nanostation router

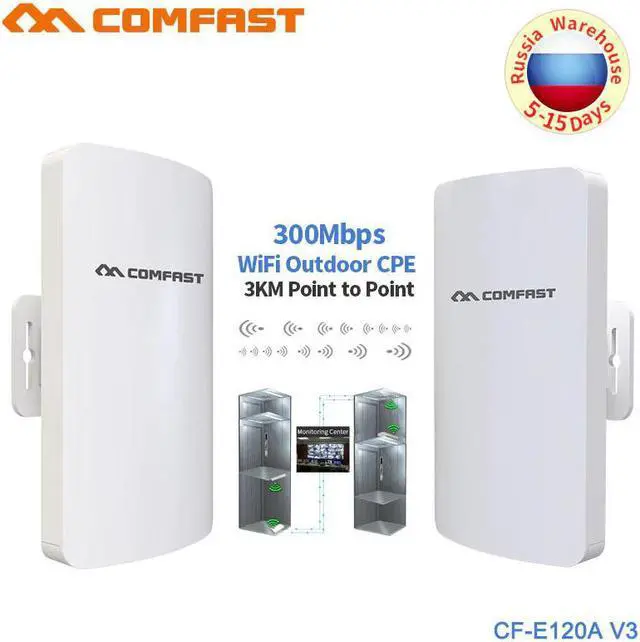

2Pc CF-E120AV3 3KM 300Mbps 5.8Ghz Outdoor Mini Wireless AP Bridge WIFI CPE Access Point 11dBi WI-FI Antenna Nanostation

Product Overview

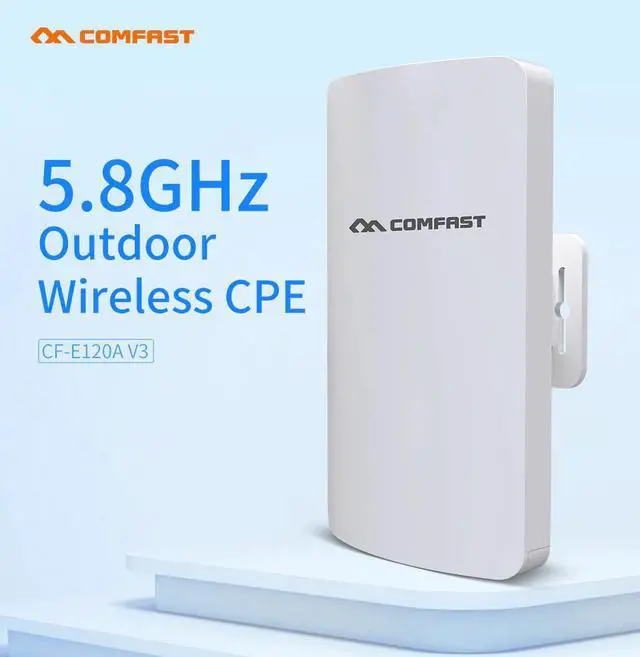

CF-E120AV3  Wireless Outdoor CPE is specially designed to provide cost effective solution for outdoor wireless networking applications.

It adopts the latest 802.11a/n standard, delivering wireless speeds up to 300Mbps. With built-in 11dbi  antennas, high power output and multiple working modes.

CF-E120AV3 is used extensively in point to point, point to multipoint and outdoor WiFi coverage  applications. Meanwhile, its professional structural design is suitable for any kinds of severe climate. So it is an ideal choice for outdoor Wi-Fi transfer over long distance.

Waterproof wireless AP/Outdoor CPE/Network Bridge/Repeater/WIFI signal booster & Amplifier

Ip cam monitor/ elevator monitor

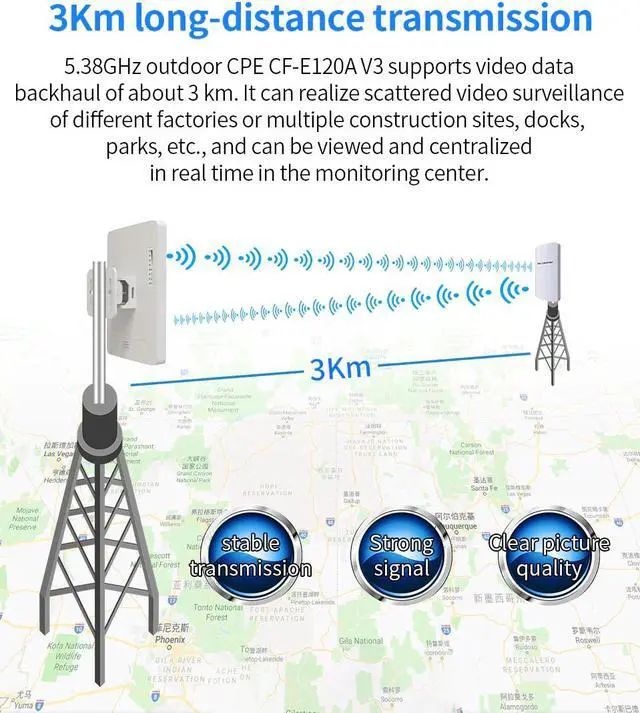

Outdoor Point to point as wifi bridge 3km or more (no obstacles)

5.8G cpe more better for the ip cam monotor or elevatior , less interference ,long Range Wifi Transmit

wireless AP/Outdoor CPE/Network Bridge/Repeater/WIFI signal booster & Amplifier

Waterproof

Pro SNMP MIB/TELNET/WEB Management

Specification:

Qualcomm AR9344 560Mhz Grade CPU

Power Amplifer Chip: SKY 85735

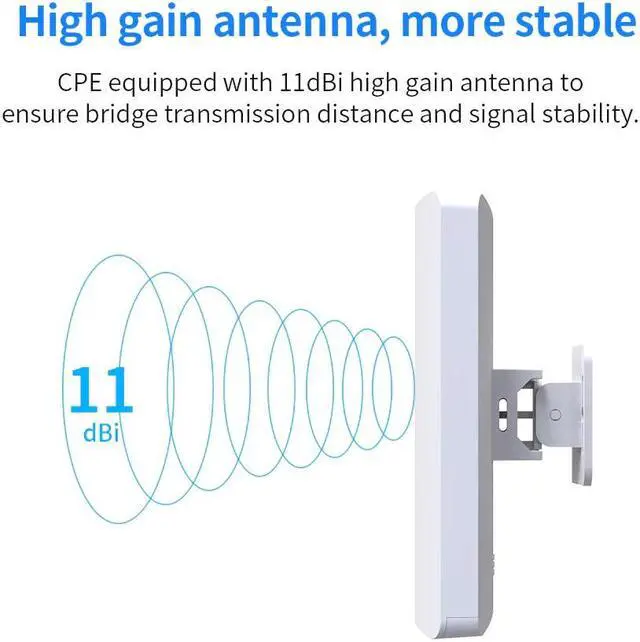

Antenna11dbi 5.8Ghz Antenna

Wireless StandardIEEE 802.11a/an

RF Parameters: Output Power :200mW(23dBm)

Frequency:802.11a/an: 5.180GHz-5.825GHz

Wireless Rate5.8Ghz 300Mbps

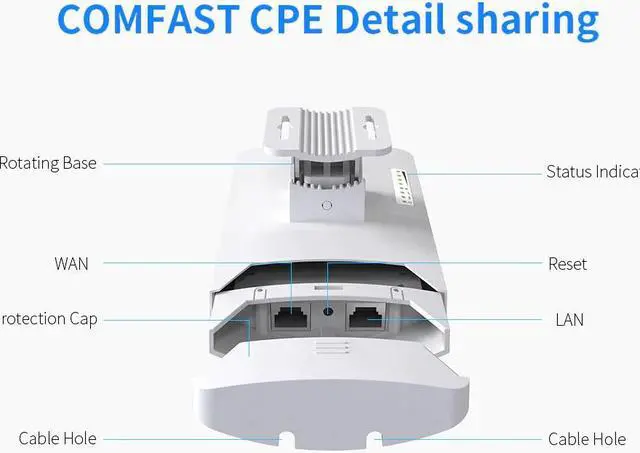

Ports: 1*10/100Mbps WAN RJ45 Ethernet Port

1*10/100Mbps LAN RJ45 Ethernet Port

1* Reset Button

Indicator:8*Indicators

Power:9-24V Poe Power Supply

Protection Level 2KL Lightning Protection;IP65

How to connect:
