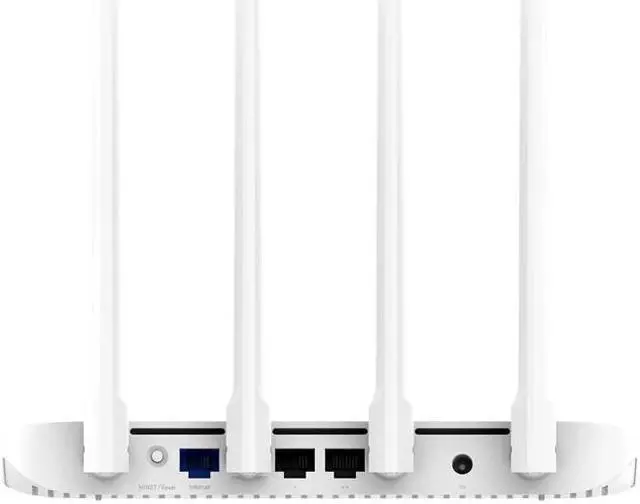

Please refer to the bottom picture for the connection method.Last picture
The easiest way to set up on the pc side
NOTE1·The original packagingUS plug
2·wifi, Instructions, is the Chinese version, Do not understand,
please contact meOr please see the details below, the steps
3·When adding wifi, please select Chinese server in mijia settings

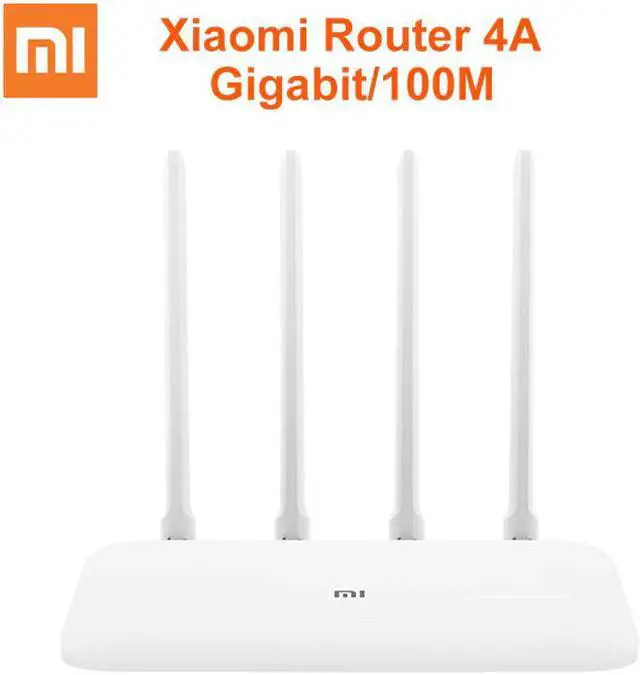

Mi Router 4A Gigabit Edition 100M 1000M 2.4GHz 5GHz WiFi ROM 16MB DDR3 64MB 128MB High Gain 4 Antennas Remote APP ControlFAQ:
The router Support IPTV,L2TP and PPPOE?
No, don't Support.
NoteThe router 4A is Chinese version we suggest you download Mi Home App to set the router if you can't understanding Chinese manual.

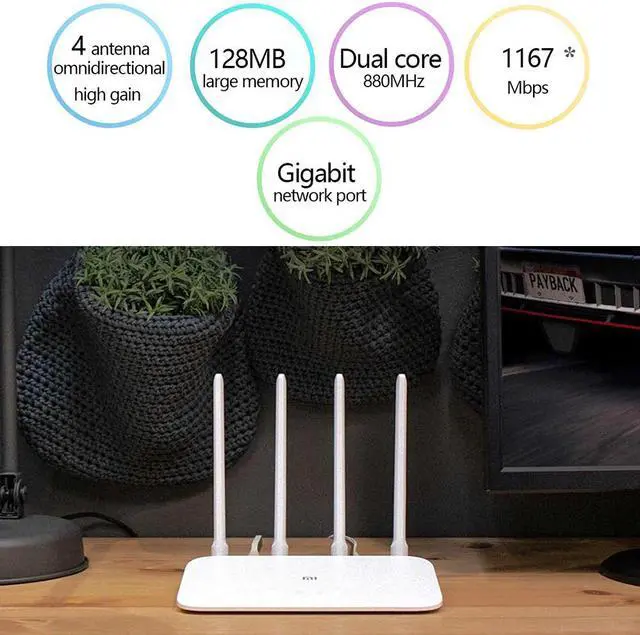

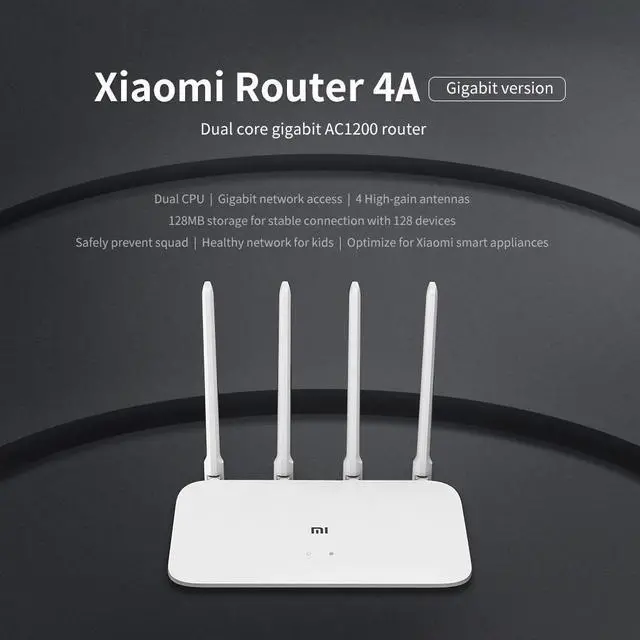

Router 4A gigabit version has dual CPU, Gigabit network access and 4 high-gain antennas. 128MB large storage and 1167Mbps ensures high performance. Smart APP control can effectively prevent wifi-squatter. It is absolutely a superb choice for you.
Features:

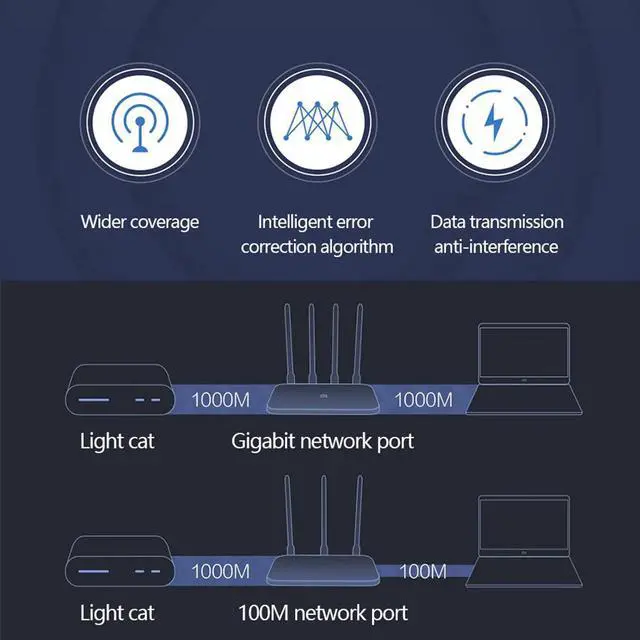

Dual Core CPU for Faster Network Speed
Featuring dual core four threading CPU, the single core frequency can reach to 880MHz. Strong performance easily support gigabit network and dual band WiFi transmission.
Wireless Dual Band
Support 2.4GHz and 5GHz two frequency bands. The max speed rate can reach to 1167Mbps. 2.4GHz band supports longer, better coverage and through-wall performance. 5GHz band uses 802.11ac technology. Less interference, high rate. Watch HD video and play smooth game.
Dual Band Shares One WiFi Name
router 4A support dual band. It combines 2.4GHz and 5GHz in one WiFi name. 2.4GHz has better through-wall performance and 5GHz has higher rate.
128MB Large Memory
