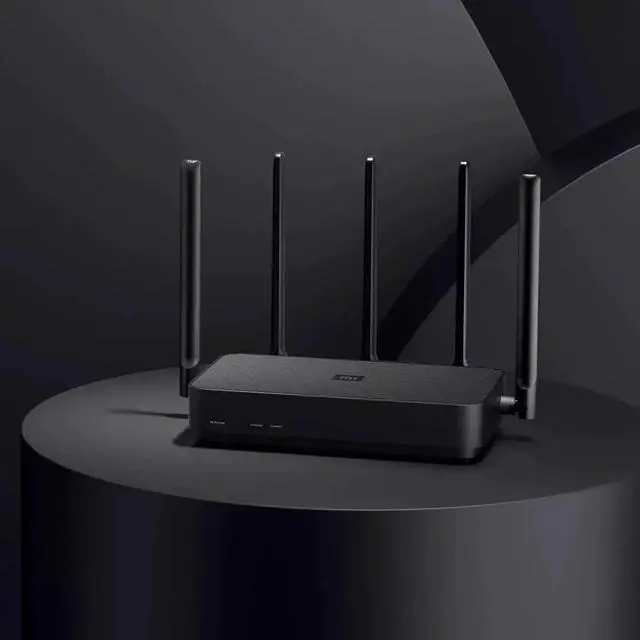

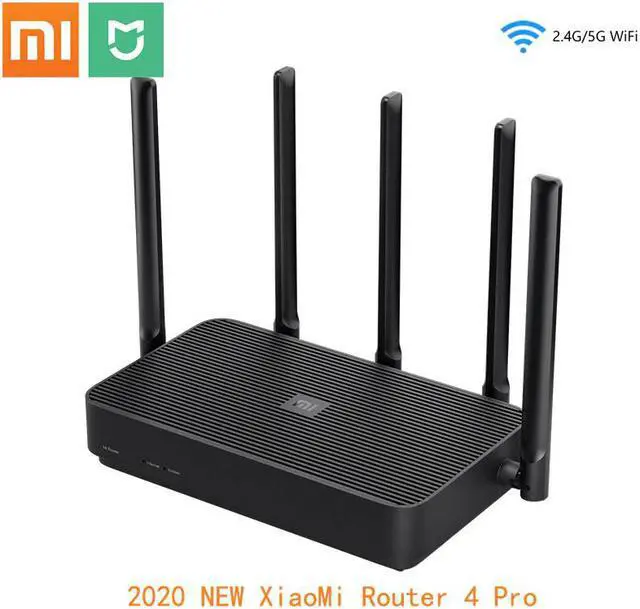

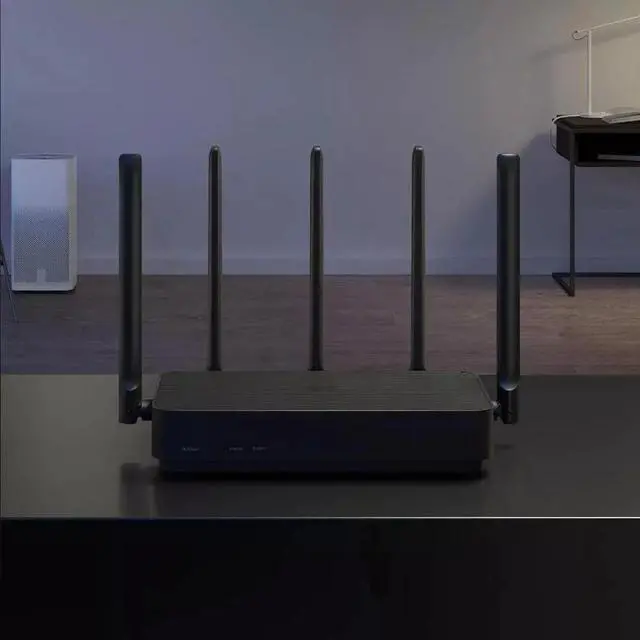

Router 4 Pro Router Gigabit 2.4G 5.0GHz Dual-Band 2033Mbps Wireless Router 128MB With 5 High Gain Antennas Wider

Please refer to the bottom picture for the connection method.Last picture

The easiest way to set up on the pc side

NOTE

1·The original packagingUS plug

2·wifi, Instructions, is the Chinese version, Do not understand,

please  contact meOr please see the details below, the steps

3·When adding wifi, please select Chinese server in mijia settings

Specification

Hardware Configuration

Product name: router 4 pro

Processor: QCA9563

Memory: 128MB

2.4G Wi-Fi:

3X3 (support IEEE 802.1 1n protocol, theoretical maximum rate up to 450Mbps)

5G Wi-Fi:

2X2 (support IEEE 802.11ac protocol, theoretical maximum rate up to 867Mbps)

Product antenna: 5 external high-gain antennas

Product cooling: natural cooling

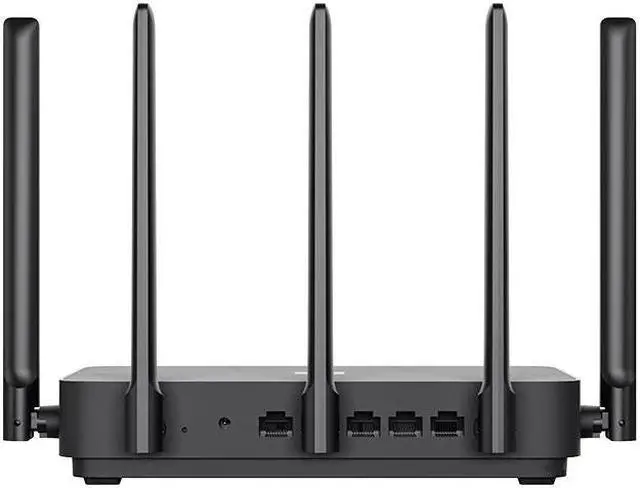

Machine interface:

1 10/100/1000M adaptive WAN port (Auto MDI/MDIX)

3 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)

LED indicator: 2 (System indicator *1, Internet indicator *1)

System reset button: 1

Power input interface: 1

Protocol standards: IEEE 802.11 a/b/g/n/ac, IEEE 802.3/3u/3ab

Certification standard: GB/T9254- -2008; GB4943.1-201 1

Warranty information: 1 year warranty

Wireless parameters

Dual frequency: 2.4GHz and 5GHz

Wireless channel:

2.4GHz Channel: 1, 2,3,4,5,6,7,8,9,10,11,12,13

5GHz Channel: 36,40,44,48,149,153,157,161,165

Modulation:

11b: DSSS: DBPSK(1 Mbps),.

DQPSK (2Mbps), CCK (5.5/11Mbps)

11a/g: OFDM: BPSK(6/9Mbps),

QPSK (12/1 8Mbps), 16QAM (24/36Mbps),

64QAM(48/54Mbps)

11n: MIMO-OFDM: BPSK, QPSK,

1 6QAM, 64QAM. Rate set: MCSO~MCS23

11ac: MIMO-OFDM: BPSK, QPSK,
