MULTIMAX FV EZConnect Platform 5-in-1 High Performance 2x2 MIMO 4G/LTE, 2x2 Wi-Fi, GPS Antenna, Black, Thread Mount, 15ft, SMA, AP-MF4G-C2W2G

MIMO Cell/LTE x 2, 2 Wi-Fi x 1 & GNSS, Threaded Bolt Mount, SMA on Cell/LTE & GNSS, RP-SMA on Wi-Fi, Black, 15ft coax
Frequency Range Elements 1 & 2: 698-960/1700-2700 MHz, Elements 3 & 4: 2.4/4.9-6.0 GHz, Element 4: 15501610 MHz
Operational Bands Elements 1 & 2: LTE/Cellular, Elements 3-4: Wi-Fi, Element 5: GPS L1/GALILEO E1/GLONASS G1/BeiDou B1/QZSS L1
Peak Gain: Isotropic Elements 1 & 2: 698-960 MHz 3 dBi; 1710-2700 MHz 6.5 dBi, Elements 3-4: 2.4 GHz, 5.5 GHz 7 dBi, 5 dBi, Element 5: 30.50 dBi
Military Spec MIL-STD 810 conformance to vibration and humidity / Water Ingress IP67

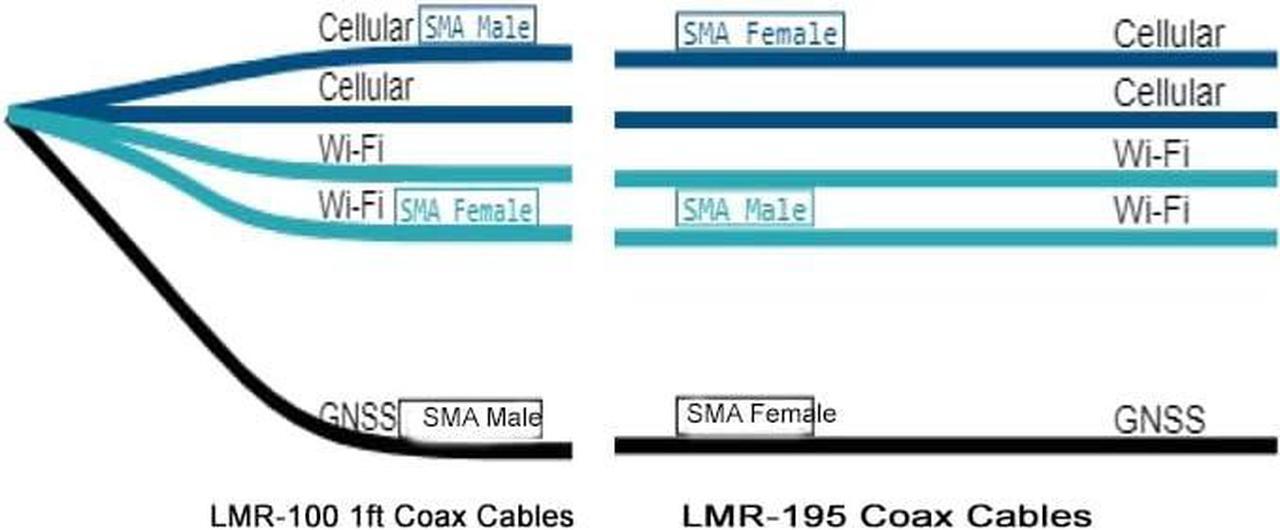

Airgain Part Configuration: AP-MF4G-C2W2G-Q-B1 - EZConnect Antenna with MIMO Cell/ LTE x 2, Wi-Fi x 2 & GNSS, Black, 1 foot coax CH-C2W2G-1-2-1-14 - EZConnect Cable Harness with MIMO/ Cell x 2, Wi-Fi, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
5 Year Factory Warranty

Overview

Specs

Reviews

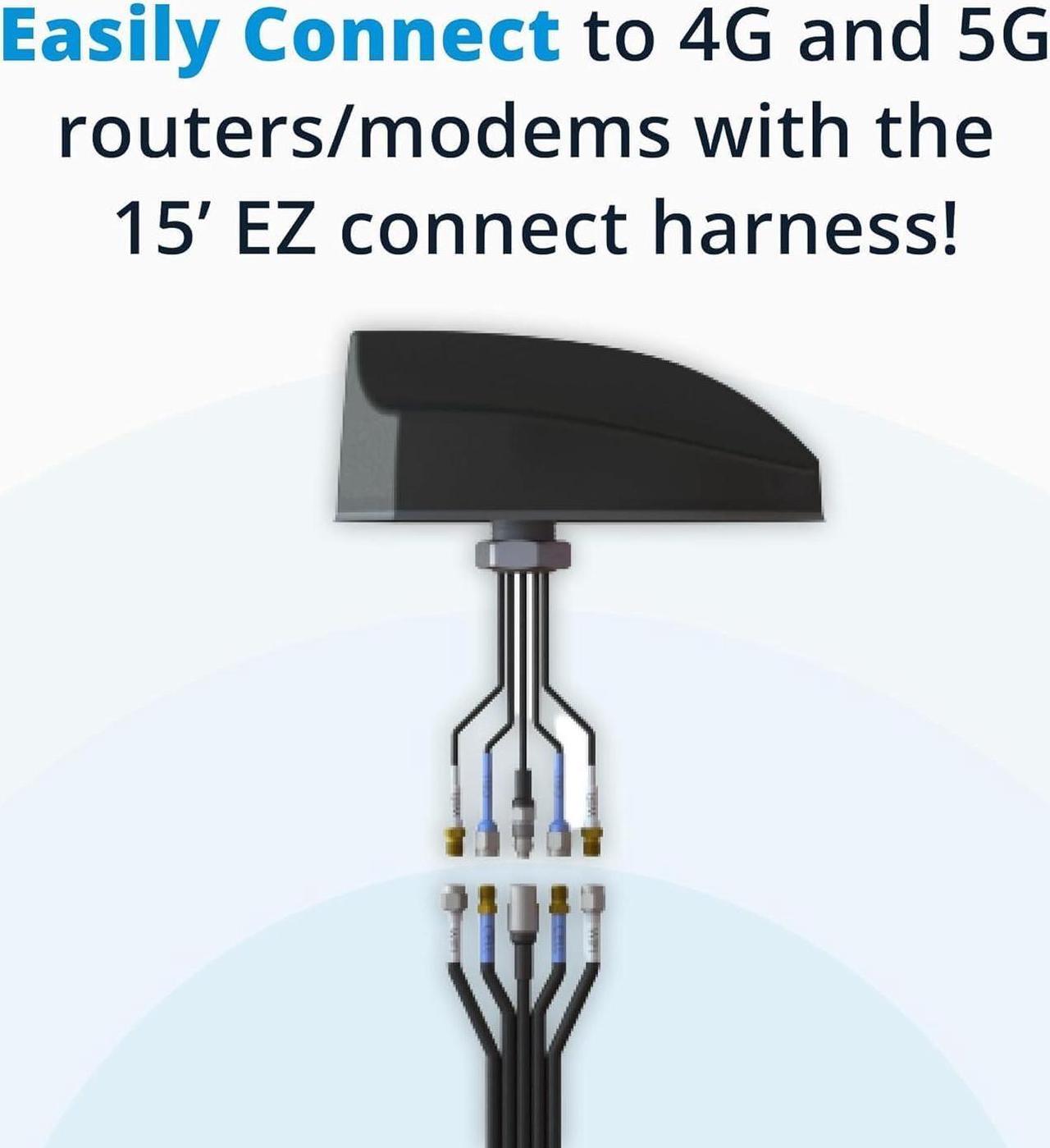

A rugged outdoor antenna, MULTIMAX 4G is designed to provide high-performance connectivity for Fleet and Public Safety vehicles and assets. Equipped with 5 ports, this antenna connects to virtually any vehicular router or modem. The MULTIMAX 4G features the new EZConnect platform, a versatile antenna design with 1-foot cables and standard connectors that connect seamlessly to a customizable cable harness. .Airgain Part Configuration: AP-MF4G-C2W2G-Q-B1 - EZConnect Antenna with MIMO Cell/ LTE x 2, Wi-Fi x 2 & GNSS, Black, 1 foot coax CH-C2W2G-1-2-1-14 - EZConnect Cable Harness with MIMO/ Cell x 2, Wi-Fi, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
