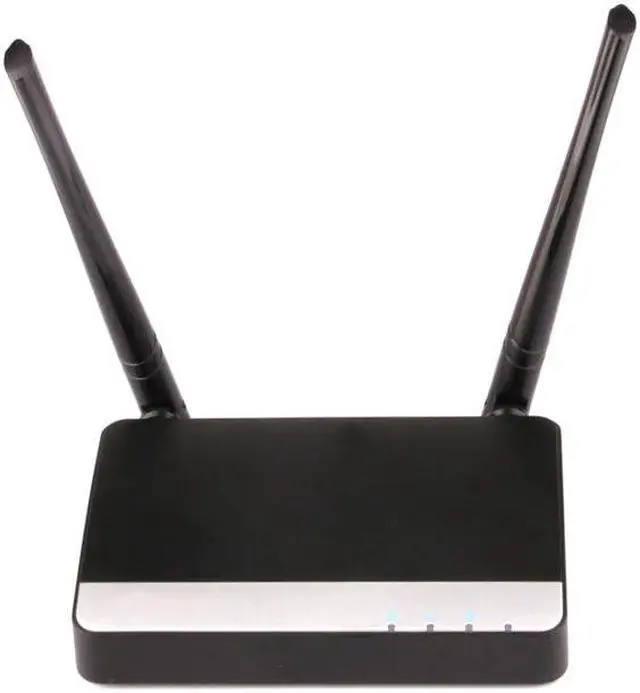

MT7620A Chipset 300Mbps Wireless WiFi Router support DD-WRT/OpenWRT/Padavan/Keenetic Omni II Firmware For 4G USB Modem

High Quality MT7620A Chipset 300Mbps Wireless Router 802.11N MU-MIMO Wi-Fi Router

Fast Wireless 300Mbps

For OMNI II Firmware Support 3G/4G USB Modem ( E3372/E8372, MF823, etc.)

And USB 3G / 4G dongle, USB 3G / 4G Modem (MDM9X07, MDM9X15 chipset, etc.) that support all Qualcomm chipsets

High Configuration32MB/FLASH+128MB/RAM

Support for many third-party firmware.

ZyEXL OMNI II Firmware For E3372,E8372, MF823 4G USB ModemSupport Russian, Ukrainian, English, three languages

The 3G/4G window in the picture has identified E3372 4G USB Modem.

Padavan Firmware

OpenWRT19.07Firmware

Hardware Parameter

Chipset

MTK7620A

RAM

DDR2 128MB

FLASH

SPI 32MB

Protocol

IEEE802.11n/802.11g/802.11b

WiFi Rate

Max 2.4G/300Mbps

Work Frequency

2.4GHz

RT Power

11N: 17dBm±2dBm

11G: 18dBm±2dBm

11B: 19dBm±2dBm

Reception

Sensitivity

11N: -78dBm

11G: -70dBm

11B: -82dBm

Antenna

2*5dbi omnidirectional antenna

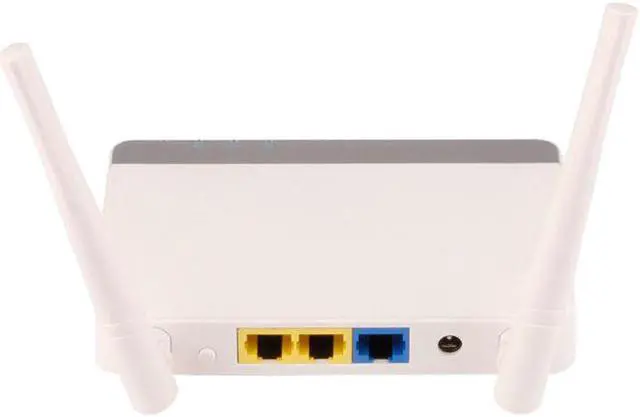

Interface

1* 10/100M Auto-MDI/MDIX WAN port

2* 10/100M Auto-MDI/MDIX LAN port

1*USB 2.0 Port

LED

power/WAN/WiFi/LNA

Button

Reset
