WiFi 300Mbps Router WiFi For 3G 4G USB Modem openWRT Mobile Hotspot 4 LAN RJ45 Port omni 2 Wireless Router omni II Firmware

Note:

It works very well with zyxel omni ii, supports e3372/8372 and many usb modems, also supports russian language. If you need this firmware, please leave the message when you make the order, then we will install it to you. Hope you have a happy shopping!

SIMPLE DESCRIPTION

Hardware

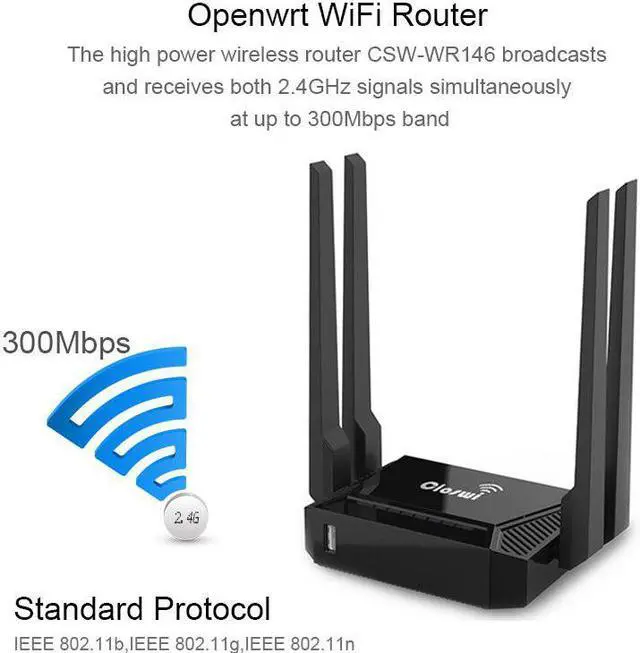

CSW-WR146 used the MT7620N, CPU up to 580Mhz, installed the large capacity DDR2 RAM and the high speed SPI FLASH, provide 5*10/100Mbps Auto-MDI/MDIX port and 1 USB2.0 port, could meet many kinds of wireless applications, much better cost-performance.

Wireless

Support 802.11b/g/n network protocoltransmission rate up to 300Mbps, 4 external antennas, cover a larger area.

SPECIFICATION

Hardware

1) Main CPU: MT7620N/580MHZ

2) RAM: SDRAM 64MB

3) FLASH: SPI 8MB

4) Protocol: IEEE802.11n/802.11g/802.11b/802.3/802.3u

5) WiFi Rate: Max 300Mbps

6) Work Frequency: 2.4GHZ

7) Antenna: 4 external antennas

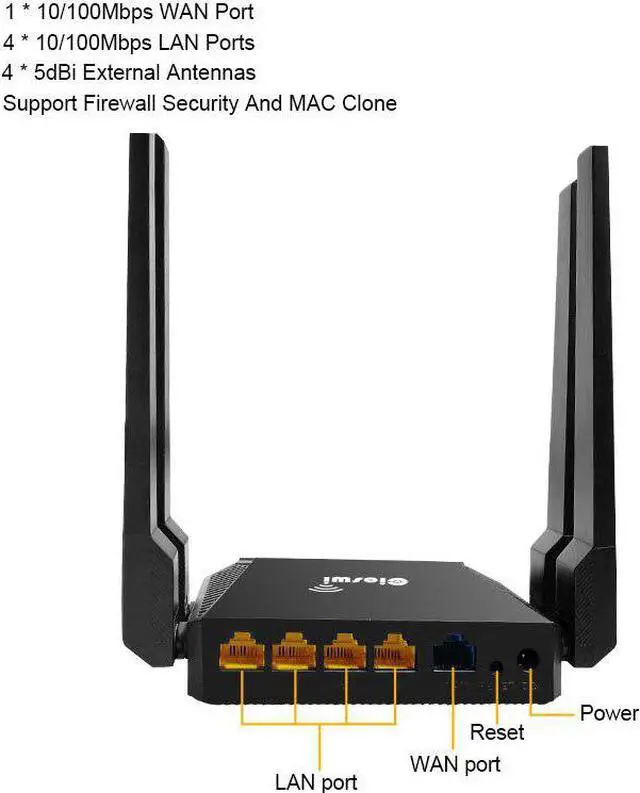

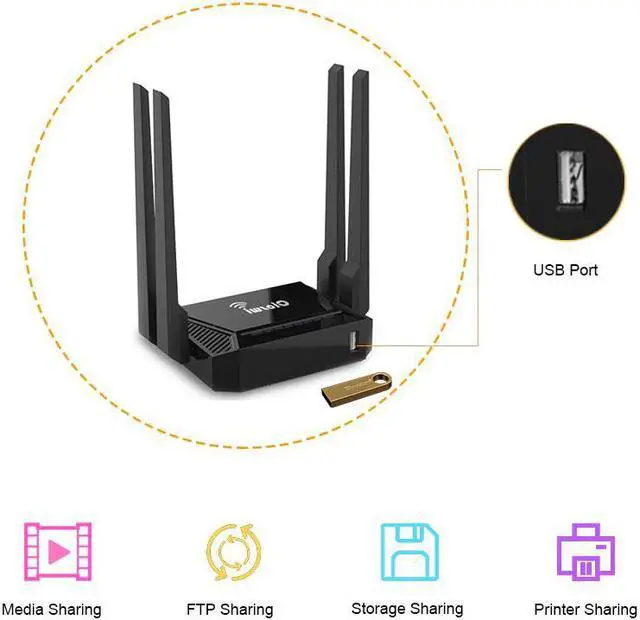

8) Interface: 1x10/100M Auto-MDI/MDIX WAN port; 4x10/100M Auto-MDI/MDIX LAN port; 1xUSB2.0 port

9) LED: power/WLAN/WAN/LAN1/LAN2/LAN3/LAN4

10) Button: Reset

11) Max consumption: < 5W

12) Dimension: 11.5x8.7x2.6 CM

Software

WAN Type: PPPoE/Dynamic IP/Static IP

Work Mode: AP;Router

DHCP: Server;Client;DHCP Client List;Address Reservation

Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

Firewall Security: Dos/SPI FirewallIP Address Filter/MAC Address Filter/ Domain FilterIP and MAC Address Binding

DDNS: Support

WEB Style Change: Support

Static Router: Support

System Log: Support

Other Function: Mac clone, NTP Synchronize, Web firmware upgrade

Packaging
