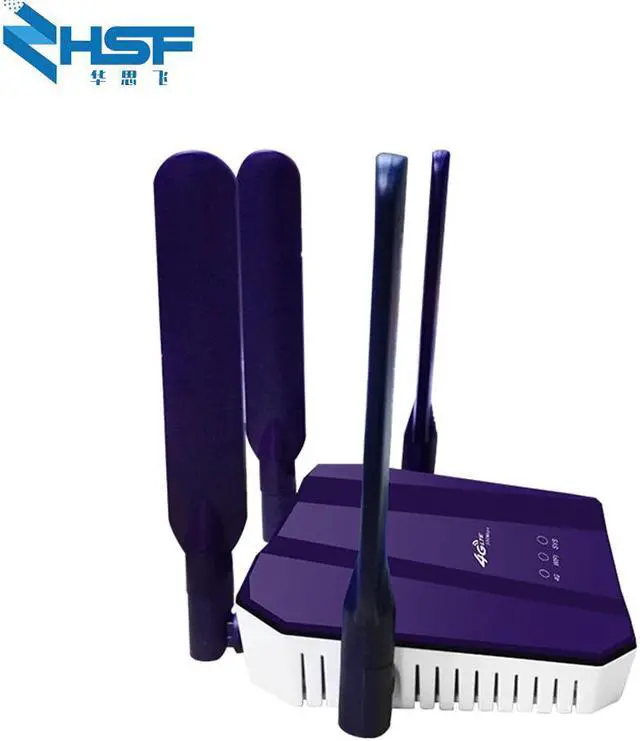

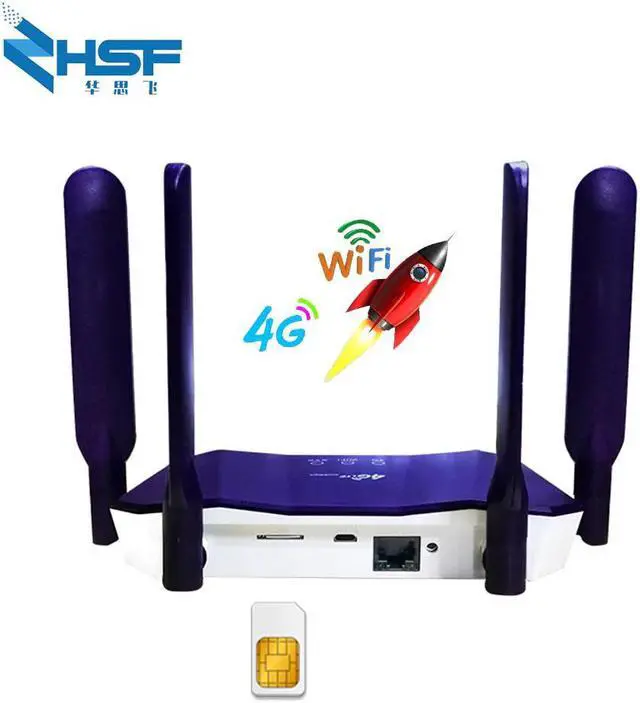

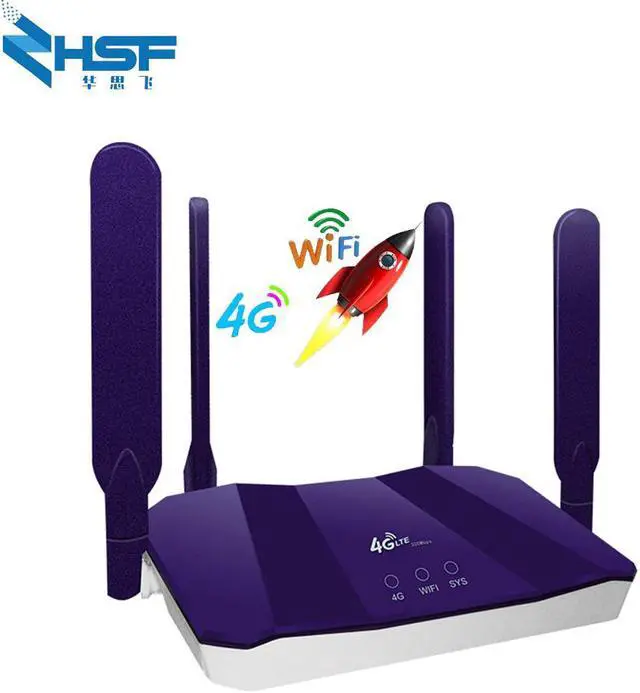

4G LTE CPE mobile router 300Mbps CAT4 Wifi router SIM card portable wireless router WiFi router with LAN port

Product Details:

CPU MT7628N

Modem ZX297520V3

Memory flash / RAM: 8 + 64M flash

Frequency FDD: B1/3/5/8 TDD: B38/39/40/41 WCDMA: B1/5/8 TDSCDMA: B34/39 CDMA&EVDO BC0 GSM: 850/900/1800/1900

Power supply jack, DC 5V/2A, or 5V 2A power supply

RJ45 port 1 RJ-45 port (10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) for WAN/LAN automatic

The RESET key is used to restore the factory default settings. (Long press for 8 seconds)

1 System indicator

2 4G indicator: blue is 3G, green is 4G.

3 WIFI indicator

SIM card supports Micro sim card

External antenna, 2 x 5dbi Wifi antenna; 2x 5dbi 4g antenna

wireless

Working frequency FCC: 2412-2462MHz (Ch1-Ch11)

ETSI: 2412-2472MHz (Ch1-Ch13)

Transmission rate 11n: 270/243/216/162/108/81/54/27Mbps

135/121.5/108/81/54/40.5/27/13.5Mbps

130/117/104/78/52/39/26/13Mbps

65 / 58.5 / 52/39/26 / 19.5 / 13 / 6.5Mbps

11g: 54/48/36/24/18/12/9/6M (Adaptive)

11b: 11 / 5.5 / 2 / 1M (adaptive)

Working channel 13x, automatic selection or manual

Spread Spectrum DSSS

modulation BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/64-QAM)

Receive sensitivity @PER 270M: -61dBm @ 10%PER; 130M: -61dBm @ 10%PER; 108M: -61dBm @ 10%PER; 54M: -65dBm @ 10%PER; 11M: -85dBm @ 8%PER; 6M : -88dBm @ 10%PER; 1M: -90dBm @ 8%PER

The transmission distance is 30 meters away indoors;

Up to 50 meters outdoors (due to different environments)

Transmit power 11n: 15±1.0dBm; 11g: 16±1.0dBm; 11b: 19±1.0dBm (typical value)

4G transmission rate TDD-LTE: 150Mbps DL/50Mbps UL

TD-SCDMA: 2.8Mbps DL/2.2Mbps UL

Software function

Static IP address or DHCP
