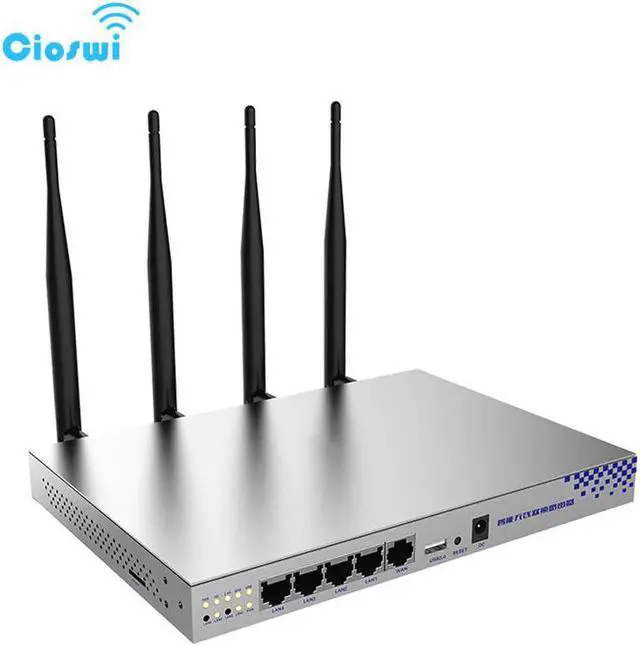

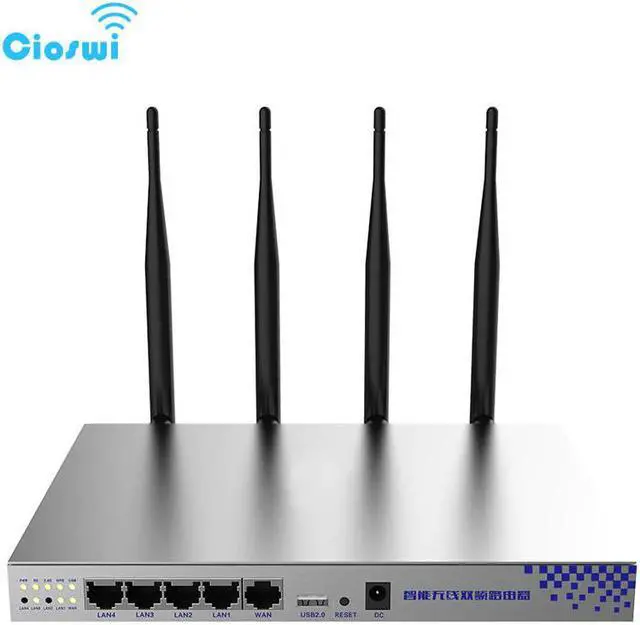

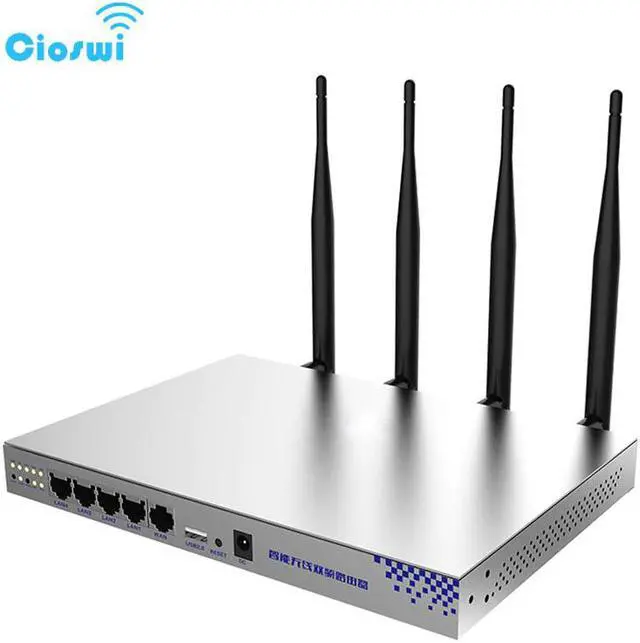

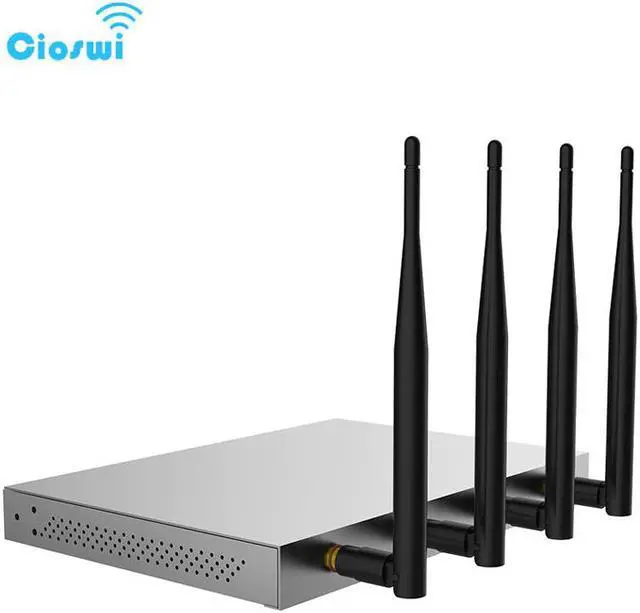

802.11AC 1200Mbps 2.4G 5G Dual Band Wifi Router MT7620A MT7612 chipsets High Power Wireless Router Long Wifi Range

Simple Introduction

Hardware

WPE357 uses MT7620A+7612E chipsets, main frequency up to 580MH, is with large capacity DDR2 RAM and high speed SPI Flash, performance is stable and outstanding. Provides 5* 10/100M self-adaption Ethernet port and 1* USB2.0 port, and 1* SD card Slot, can meets all kinds of routing applications  needs.

Wireless

It is dual band high power wireless router, complies with IEEE802.11a/b/g/n/ac wireless network protocol, 2x2 MIMO(Multiple Input Multiple output) configuration, wireless transmit rate up to 1.2G, with 4* 5dbi external high gain omni antennas. Has a very good wireless performance and large coverage area. Wireless signal covers more than 150m if no obstacle, and 90 users at the same time.

Product Feature

MT7620A+7612E chipsets, main frequency up to 580MHZ, performance is stable and outstanding

Support IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac wireless protocol.

Wireless transmit rate up to 1.2Gbps

Support kinds of encryption modes, like WEP, WPA, WPA2 etc

Provides firmware installation mode, users can change router system easily.

Product Specification

Hardware

Main chipset

MT7620A+MT7612E

RAM

DDR2 128MB (Maximum DDR2 256MB)

FLASH

SPI 16MB  (Maximum 32MB)

Protocol

IEEE802.11n/802.11g/802.11b/802.3/802.3u/802.11AC

Wireless rate

Up to 1.2Gbps

Work frequency

2.4GHZ, 5.8GHZ

RF Output power

2.4G:

802.11b   26± 2dBm

802.11g   25± 2dBm

802.11n   25± 2dBm

5G/11ac:

802.11a:  6-24Mbps    22.0 ±1.5dBm

36-48Mbps   21.0 ±1.5dBm

802.11n:

HT20:       21.0 ±1.5dB

LED
