4G LTE Modem Wifi With Four Antena 2.4G 300Mbps Support 3G&4G Function With Micro SD Card Slot And 2 Sim Card Slot Mobile Router

SpecificationKuWFi WE5928 uses the latest MT7628N wireless solution, performs better and more function. Stable wireless performance, more functions , 2.4G 300Mbps, Also support 3G&4G function.One SD card slot. Beautiful share design.It is best choice to use home,office and other engineering project.

Product FeatureSupport 802.11N/802.11G/802.11B network protocol, the max transmission rate could be 2.4G 300Mbps

Support 802.113/802.11U protocol, 4* 10/100M bps Auto MDI/MDIX

1 Micro SD Card Slot

Support 3G/4G

Many kinds of encryption to protect your transmission

Hardware

Main Chipset

MT7628NN

RAM

DDR2 64MB (MAX DDR2 128MB)

SPI FLASH

8MB (MAX 16MB)

Protocol

IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE 802.3u

RT Power

802.11b   18dBm±2dBm;

802.11g   15dBm±2dBm;

802.11n   15dBm±2dBm;

Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

Work Channel

2.4GHz choose 1-13

Wireless Rate

Max 300Mbps

Work Frequency

2.4GHz

Antenna

2* 2.4G 5dBi antenna2*4G 5dBi antenna, 2*4G FPC antenna

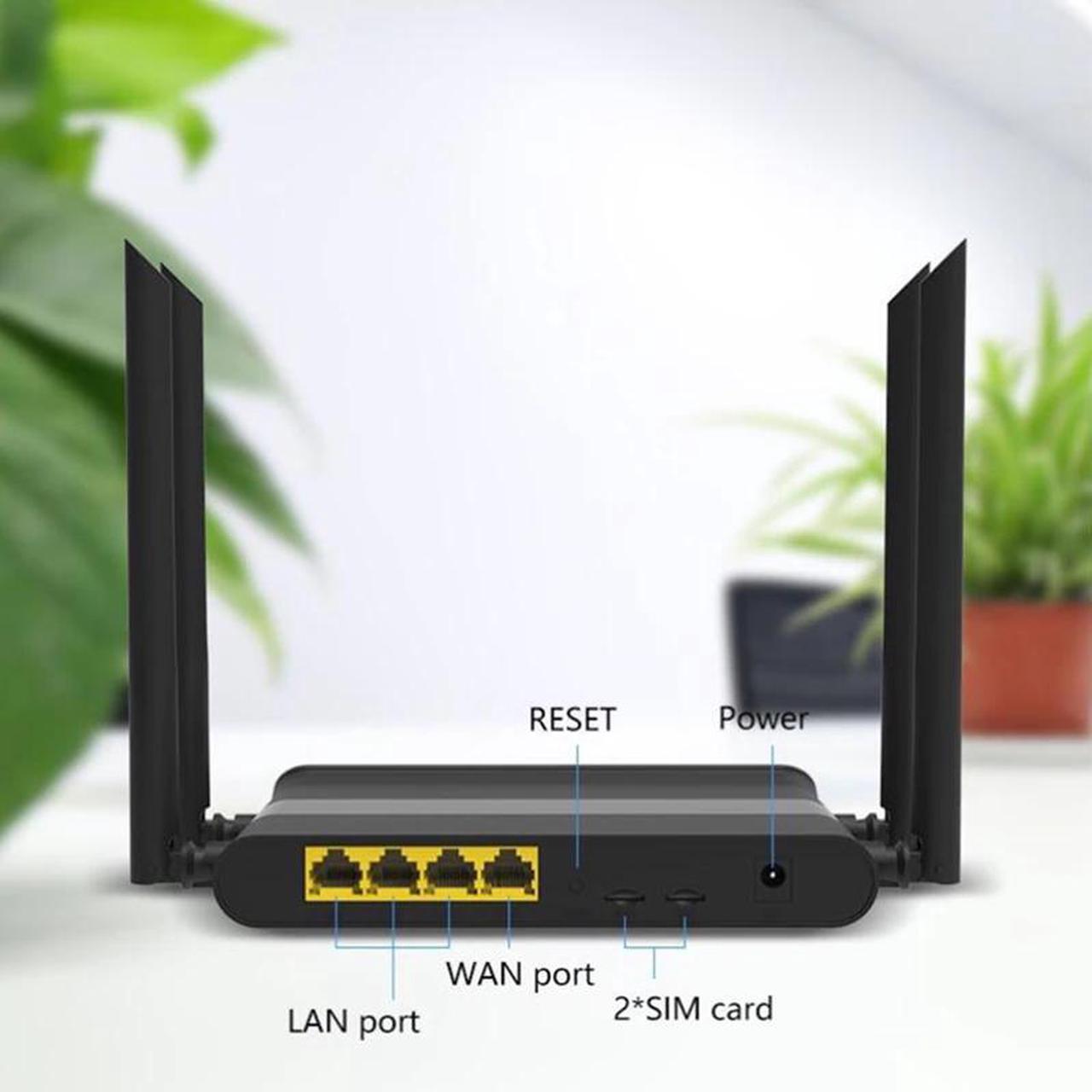

Interface

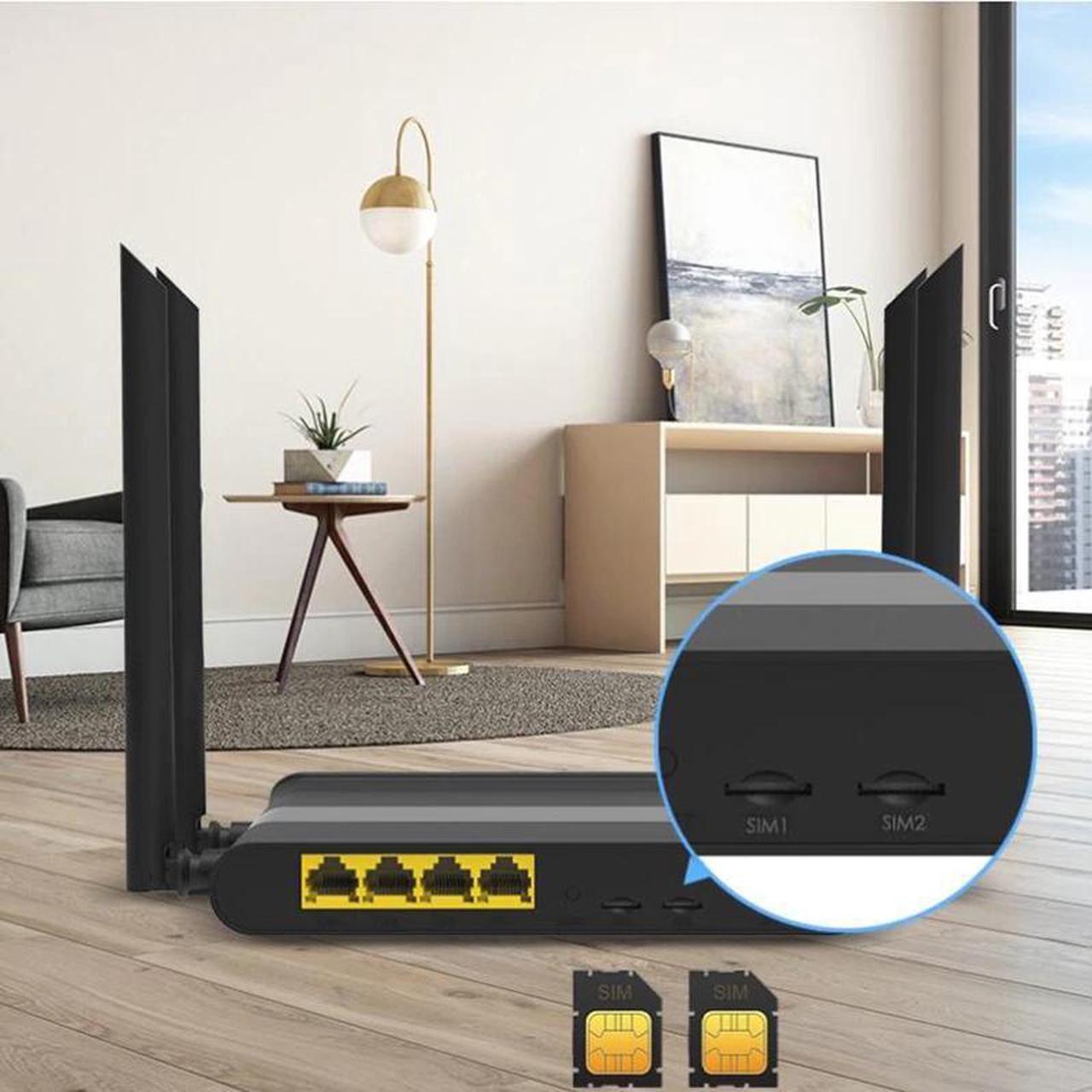

2*SIM card slot

1*Micro SD card slot

1*10/100M  WAN portAuto MDI/MDIX

3*10/100M  LAN portAuto MDI/MDIX

LED

Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,

Button

Reset/WPS

Max Power consumption

12W

DimensionL*W*H

141*85*26MM

Software

WAN Type

PPPoEDynamic IP Static IP

Work Mode

AP;

Router;

DHCP

Server, Client, DHCP Client List, Address Reservation

Port Forwareding

DDNS
