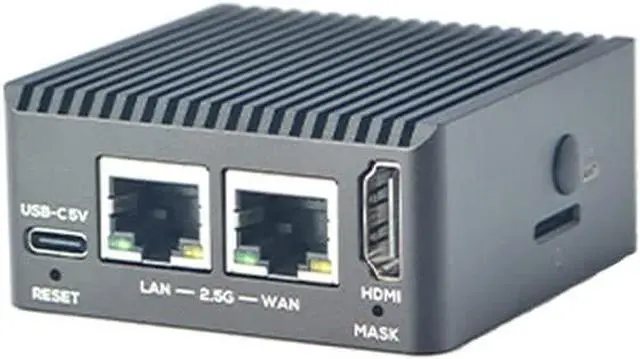

    Nanopi R5C Mini WiFi Router OpenWRT with Dual PCIe 2.5Gbps Ethernet M.2 Key E USB Ports 2GB LPDDR4X RAM 32GB eMMC Based in Rockchip RK3568B2 Soc 0.8T NPU for IOT NAS Smart Home Gateway Support Ubuntu

    Be the first to review this product...
    • [WIRELESS MOBILE MINI TRAVEL ROUTER] Nanopi R5C Mini Wifi Router Adopt Rockchip RK3568B2 Soc, with 2GB LPDDR4x RAM and 32GB eMMC; CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz; GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile; NPU: Support 0.8T.
    • [OPEN SOURCE and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more. It can also be used as a command line mode for geeks
    • [Dual PCIe 2.5G GBPS ETHERNET PORTS] The NanoPi R5C Mini Router has dual PCIe 2.5Gbps Ethernet ports; M.2 WiFi(RTL8822CE) support 802.11 a/b/g/n/ac protocol,TX rate is 276Mbps,RX rate is 156Mbps.
    • [LARGER EXTENSIBILITY & Interface] NanoPi R5C Router supports M.2 WiFi and Bluetooth Module, with M.2 Key E: PCIe2.1 x1, USB 2.0 x1 PortsmicroSD: support UHS-I; USB: two USB 3.2 Gen 1 Type-A ports; Debug: one Debug UART
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    -Specification-
    SoC: Rockchip RK3568B2
    CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
    GPU: Mali-G52 1-Core-2EEsupports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
    VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
    NPU: Support 0.8T
    RAM: 2GB LPDDR4X
    Flash: 32GB eMMC
    Ethernet: two PCIe 2.5Gbps Ethernet
    USB: two USB 3.2 Gen 1 Type-A ports
    HDMI:
    support HDMI1.4 and HDMI2.0 operation
    support up to 10 bits Deep Color modes
    support up to 1080p@120Hz and 4096x2304@60Hz
    support 3-D video formats
    M.2 Key E: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module.
    microSD: support UHS-I
    Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
    LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)
    Others:
    2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
    MASK button for eMMC update
    One User button
    Power supply: USB-C 5V input
    PCB: 8 Layer, 58x58x1.6mm
    Ambient Operating Temperature: 0 to 70
    -OS Support-
    Android, FriendlyWrt 22.03(64-bit)
    Debian Buster Desktop (64-bit)
    FriendlyCore Focal Lite(Base on Ubuntu 20.04)
    Buildroot
    Kernel version: Linux-5.10-LTS/U-boot-2017.09.
    -Package Content-
    1 x Nanopi R5C 2GB RAM 32GB eMMC Mini Router--with CNC Metal Case
