Dilwe 4G LTE USB WiFi Modem, LTE/4G 150 Mbps USB Mobile Module with SIM Card Slot, High Speed Portable Travel Hotspot Mini Router Supports USB, UART for PC, Industrial Computer
- Industrial Grade Design: SIM7600GH 4G DONGLE LTE USB adapter adopts industrial grade 4G communication solution, equipped with SIM7600GH module, which makes the communication stable and durable. LTE USB adapter with SIM card slot, support Nano SIM card,(not include ) Driver download site : www.waveshare.net/wiki/SIM7600G-H_4G_DONGLE
- Need Driver : USB network module compatible with Windows/Linux systems, just plug in the USB port, install the driver for configuration, and you can achieve high-speed 4G networking. (Please contact customer service to send the driver), LTE USB WiFi modem with rotatable antenna, the antenna adopts a flexible structure design and supports multi dimensional free rotation.

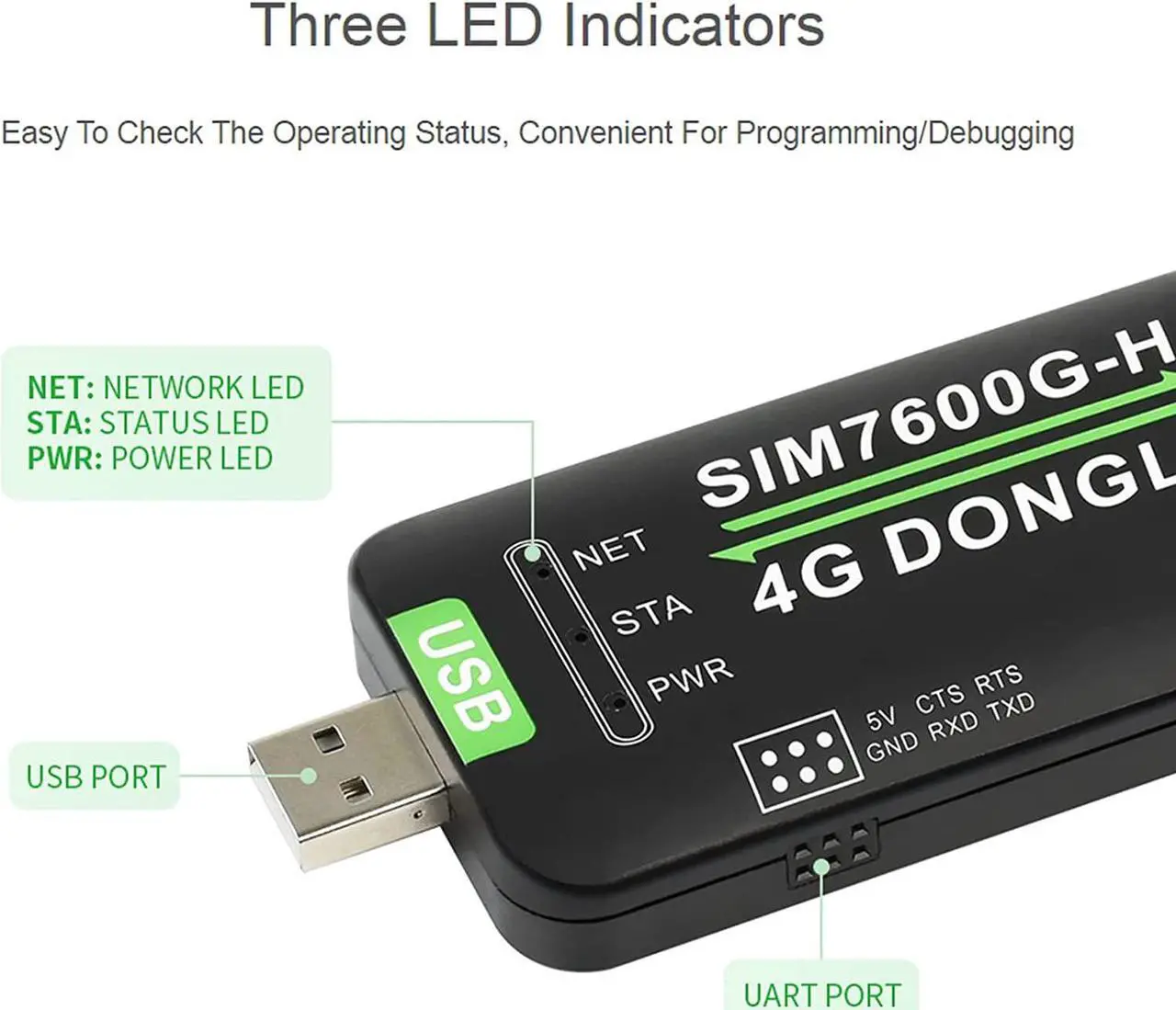

- Three Indicator Lights: SIM7600GH 4G DONGLE Module has three data indicator lights, you can easily see the working status, NET: internet indicator, SAT: status indicator, PWR: power indicator.
- 2 Interface Communication: 4G DONGLE module supports cloud platform communication, supports U
+
+
Overview
Specs
Reviews
Specification:
Item Type: SIM7600GH 4G DONGLE
Product Parameters
Material: ABS
Model: SIM7600G-H
LTE-TDD: B34/B38/B39/B40/B4l
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
3G Frequency Band: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G Frequency Band: GSM/GPRS/EDGE: 850/900/1800/1900MHz
GNSS: Support GPS, Beidou, Glonass, LBS base station positioning
Applicable Area: Universal
Data Transmission:
LTE Cat-4150Mbps(DL)/50Mbps(UL)
3G(HSPA+)42Mbps(DL)/5.76Mbps(UL)
2G(EDGE)236.8Kbps(DL)/236.8Kbps(UL)
2G(GPRS)85.6Kbps(DL)/85.6Kbps(UL)
Software Function:
Operating System:For Windows,for Linux
Letter of Agreement:
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Internet Access: NDIS/RNDIS/PPP
Short Message (SMS): Support MT, MO, CB, Text, PDU
Hardware Description:
Communication Interface: USB/UART
UART Communication Baud Rate: 300bps-4mbps (default is L15200bps)
Indicator:
NET: Internet Indicator
STA: Status Indicator
PWR: Power Indicator
Support SIM Card: Nano SIM Card (1.8V / 3V) (Card Not Included)
Antenna Interface: LTE
Supply Voltage: 5V
Logic Voltage: 3.3V

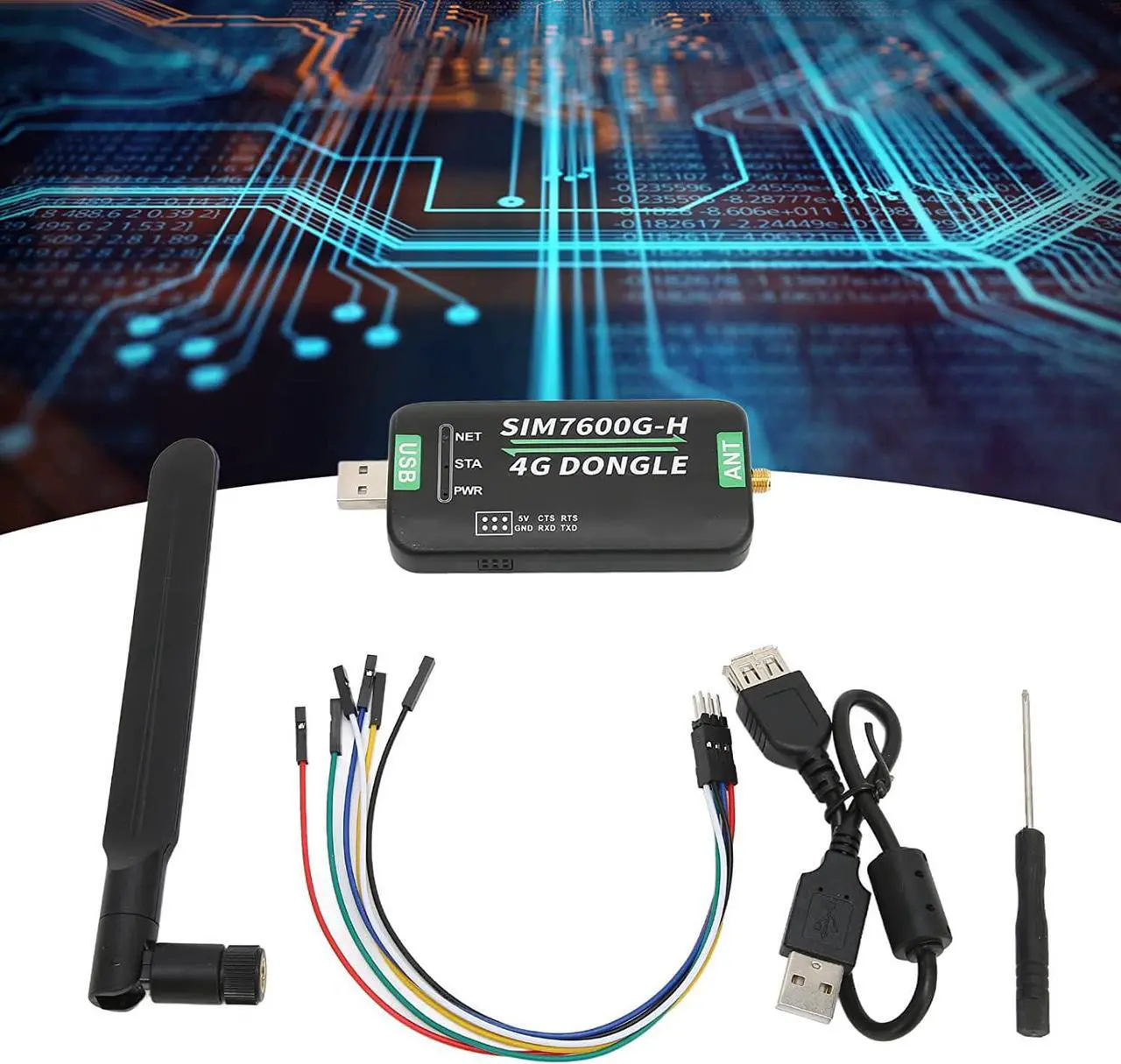

Package List:
1 x SIM7600GH 4G DONGLE
1 x LTE Antenna
1 x USB Extension Cable
5 x Screws
1 x Screwdriver
1 x Connection Line
