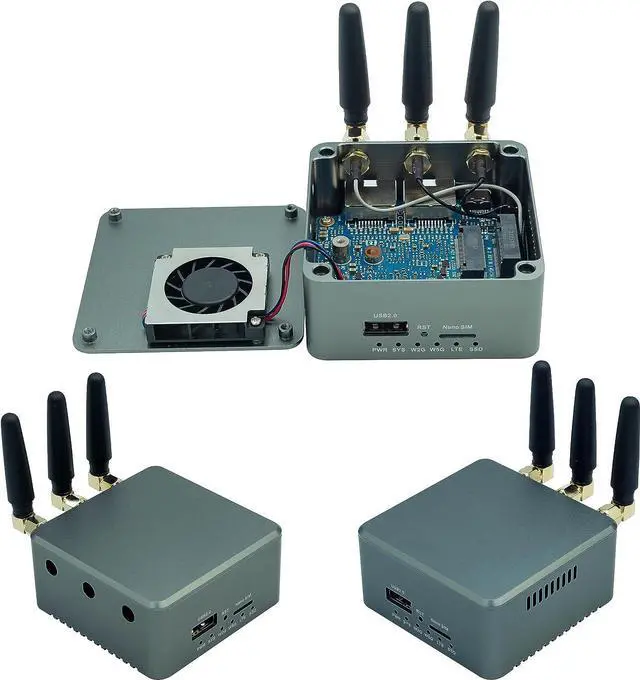

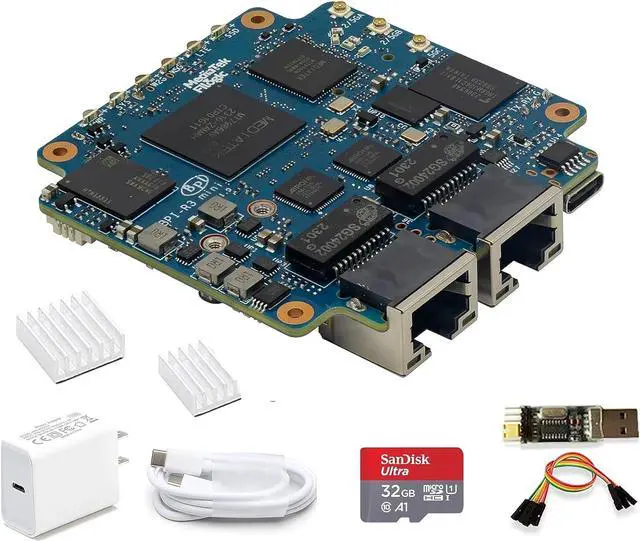

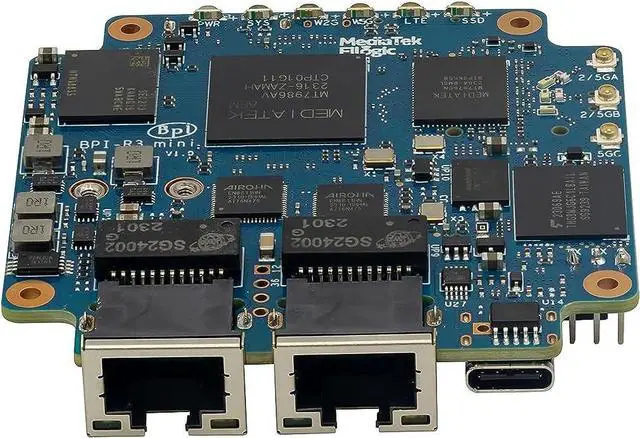

    Banana Pi BPI-R3 Mini Wi-Fi 6 OpenSource Router, OpenWRT Dual-Band Wireless Router Board, MediaTek MT7986 (Filogic 830) CPU, Support M.2 NVMe SSD 2X 2.5GbE SFP Ethernet for Gaming Gateway NAS Device

    Be the first to review this product...

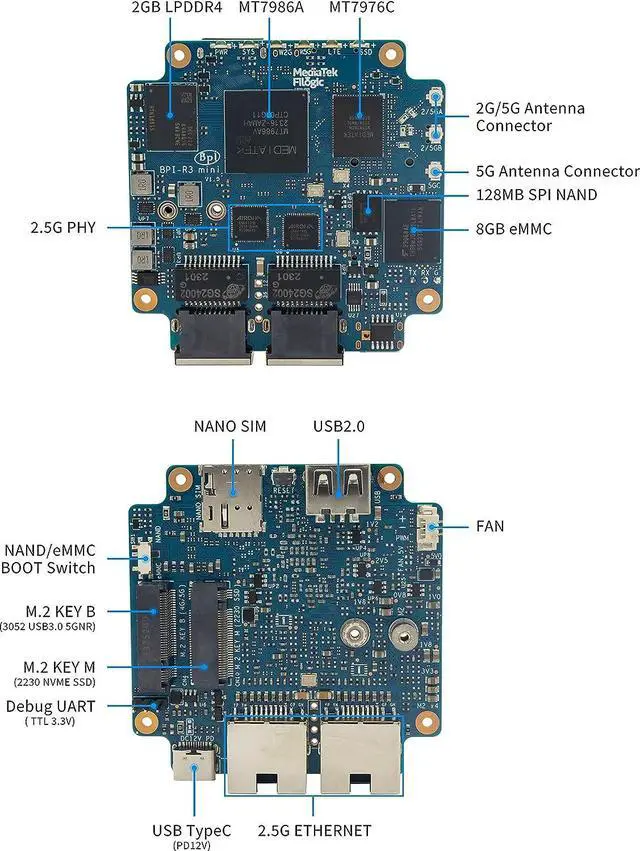

    • [MediaTek MT7986A CPU] Banana Pi BPI-R3 Mini Router board with MediaTek MT7986A (Filogic 830) quad core ARM Cortex-A53 chip up to 2GHz with up to 18,000 DMIPs of processing power. Onboard 2G DDR4 RAM and 8G eMMC flash, 128MB SPI Nand Flash, 2.5G PHY and MT7976C Chip.
    • [Built-in Filogic 830 Chip] BPI-R3 Mini Router built-in Filogic 830 Chip which Hardware Acceleration Engine for Fast and Reliable Wi-Fi Offloading, Multigigabit Transmission and Wireless Network Connectivity which suitable for streaming media, games, AR/VR and other low-latency applications.
    • [Rich Peripheral interfaces] Banana Pi BPI-R3 mini open source single board computer with M.2 PCIe socket that can be used with an M.2 2230 NVMe SSD or a 5G module. Also onboard M.2 Key B interface, USB 2.0 port, 2x 2.5GbE Gigabit ethernet port, serial peripheral interfaces (SPI), NANO SIM, 3-pin Debug UART and U.FL antenna connectors.
    • [Low-latency Wi-Fi 6 Connection] Banana Pi BPI-R3 mini open source router support Dual-band Wi-Fi
    +
    +
    Overview
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

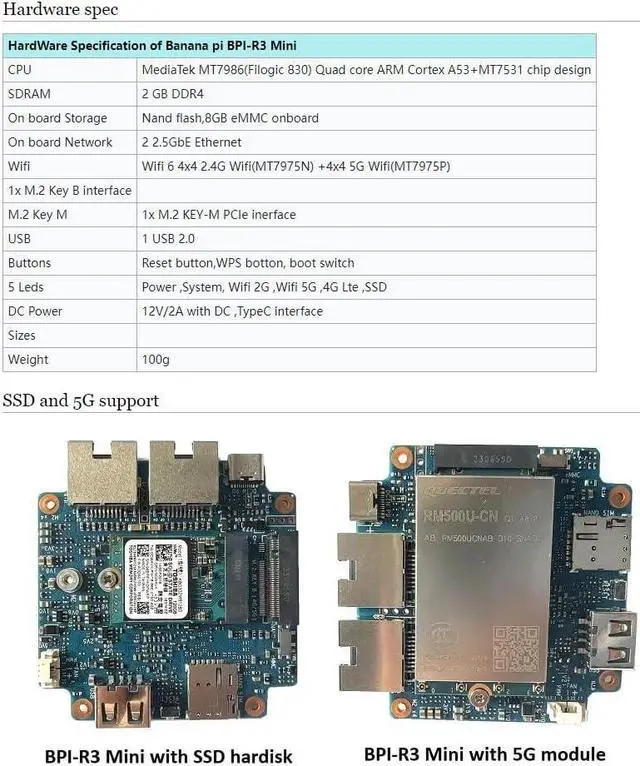

    CPUMediaTek MT7986A (Filogic 830) Quad-core ARM Cortex-A53SDRAM2GB DDR4Storage8GB eMMC, 128MB SPI Nand FlashNetwork 2x 2.5G bE EthernetWifiWifi6 2x2 2.4G + 3x3 5G (MT7976C Chip) M. 2 Key B1x M. 2 Key B interfaceM. 2 Key M1x M. 2 KEY-M PCIe inerfaceUSB 1x USB 2.05 x LedsPower, System, Wifi 2G, Wifi 5G, 4G Lte, SSDDC Power20W/12V, USB TypeC PDSizes65 x 65 x10 mmWeight100g (only board) HardWare Specification of BPI-R3 Mini
