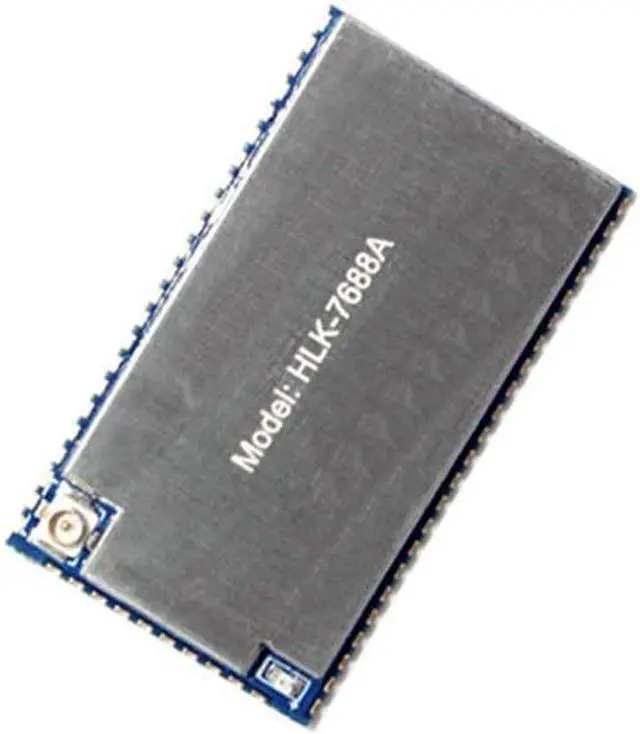

Taidacent IoT Intelligent Serial Port to WiFi Wireless Router Module 7688A OpenWrt Router Secondary Development Wireless WiFi Router MT7688 (Ordinary OpenWrt Version)
- The module supports Linux, OpenWRT operating system and custom development.
- It could be widely applied to smart devices or cloud services application with its rich interface and powerful processors.

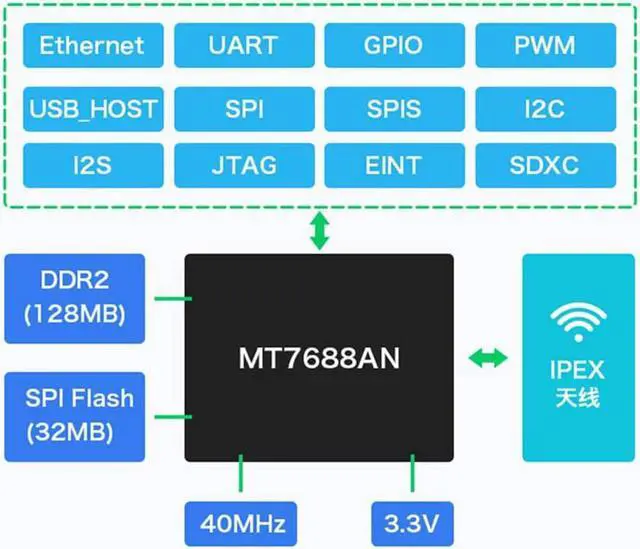

- MT7688AN low power chip solution
- Support AP, STA and AP+STA mode

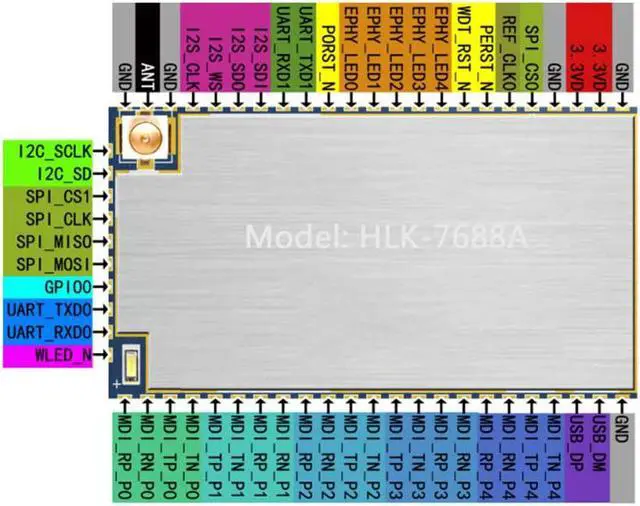

- Rich peripheral interfaces, SPl, 12C, 12S, PCM, UART, JTAG, GPIO
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The module supports Linux, OpenWRT operating system and custom development. It could be widely applied to smart devices or cloud services application with its rich interface and powerful processors.
·MT7688AN low power chip solution
· Support AP, STA and AP+STA mode
· Rich peripheral interfaces, SPl, 12C, 12S, PCM, UART, JTAG, GPIO
· Support OpenWrt secondary development, provide SDK and hardware information, customers can develop corresponding functions according to their needs)

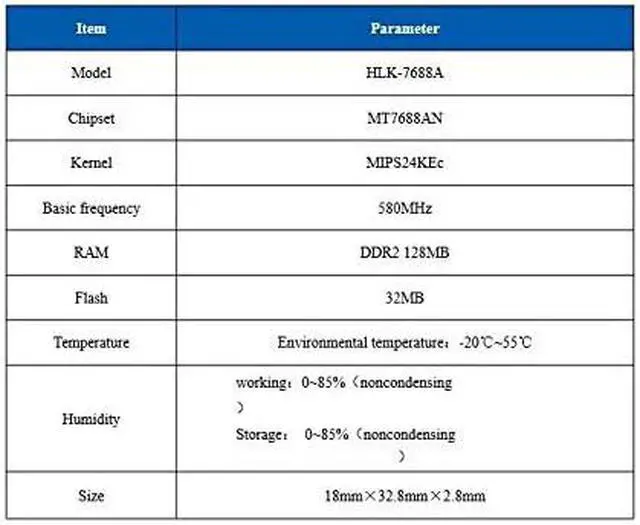

Feature
·Super data processing capability, MCU frequency up to 580MHz
·150M wireless rate
·Support 802.11b/g/n/v mode
·20/40 channel bandwidth
· Support AP, STA and AP+STA mixed mode
· 5 10/100M adaptive network ports, 1 USB2.0 host interface with SPI/SD-XC/eMMC
· Rich peripheral interfaces, SPlI2C, 12S, PCM, UART, JTAG, GPIO
· Support multiple encryption methods WEP64/128, TKIP, AES, WPA, WPA2, WAPI
·Support QOS, WMM, WMM-PS
·Support Linux2.6.36SDK, OpenWrt3.10
Help others learn more about this product by uploading a video!
·MT7688AN low power chip solution
· Support AP, STA and AP+STA mode
· Rich peripheral interfaces, SPl, 12C, 12S, PCM, UART, JTAG, GPIO
· Support OpenWrt secondary development, provide SDK and hardware information, customers can develop corresponding functions according to their needs)
Feature
·Super data processing capability, MCU frequency up to 580MHz
·150M wireless rate
·Support 802.11b/g/n/v mode
·20/40 channel bandwidth
· Support AP, STA and AP+STA mixed mode
· 5 10/100M adaptive network ports, 1 USB2.0 host interface with SPI/SD-XC/eMMC
· Rich peripheral interfaces, SPlI2C, 12S, PCM, UART, JTAG, GPIO
· Support multiple encryption methods WEP64/128, TKIP, AES, WPA, WPA2, WAPI
·Support QOS, WMM, WMM-PS
·Support Linux2.6.36SDK, OpenWrt3.10
Help others learn more about this product by uploading a video!
