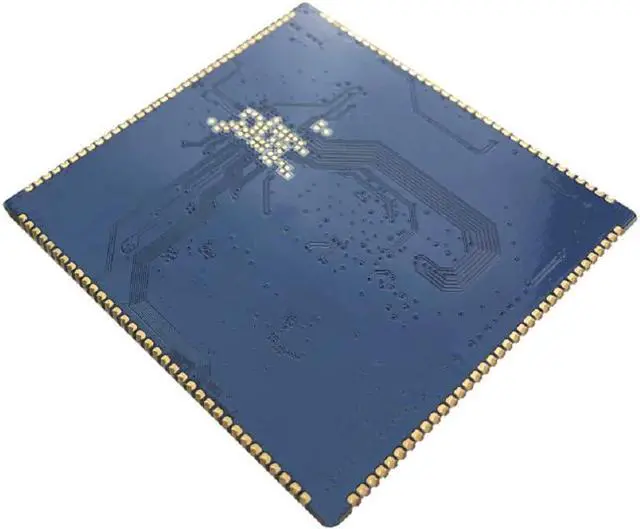

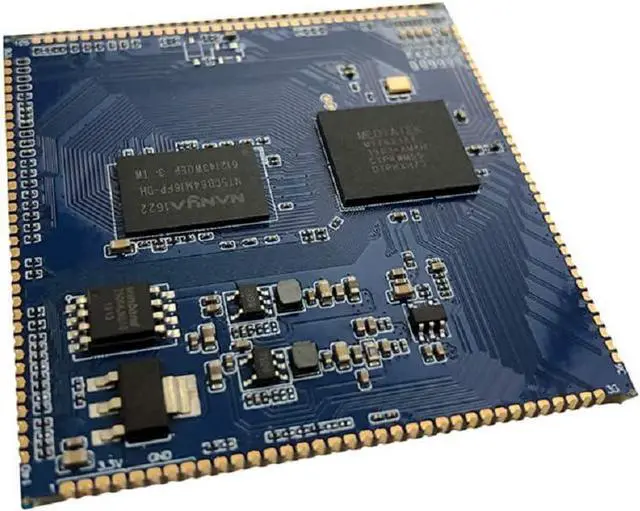

Taidacent High-Performance Intelligent Ethernet Module Gigabit Wireless Router Gateway Control Module MT7621A Support High-Level AP/Router
- Embedded MIPS1004Kc (880MHz, dual core)
- 32KBI-Cache and 32KB D-Cache per core
- 5 port 10/100 / 1000Mbps Gigabit gateway
- 16-bit DDR2 / 3 up to 256 / 512M
- 5 port 10/100 / 1000Mbps Gigabit gateway
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PRODUCT FEATURES

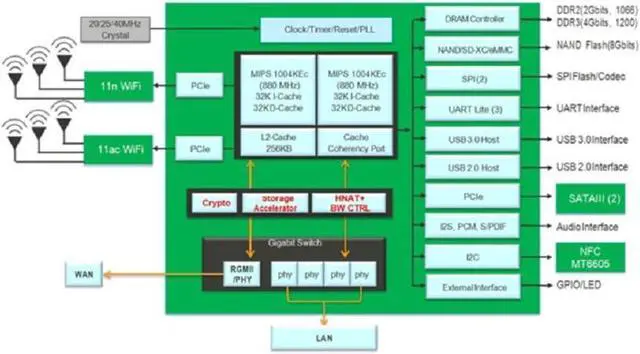

Embedded MIPS1004Kc (880MHz, dual core)
32KBI-Cache and 32KB D-Cache per core
5 port 10/100 / 1000Mbps Gigabit gateway
16-bit DDR2 / 3 up to 256 / 512M
5 port 10/100 / 1000Mbps Gigabit gateway
· USB3.0 / 2.0 with SPI / SD-XC / eMMC / NAND Flash (SLC)
Rich peripheral interfaces, 12C, UART * 3, JTAG, MDC, MDIO, GPIOv · Support VolP (12S, PCM), audio interface (SPDIF-Tx, I2S, PCM)
Support Linux2.6.36 SDK, Linux3.10 SDK OpenWrt
Basic parameters

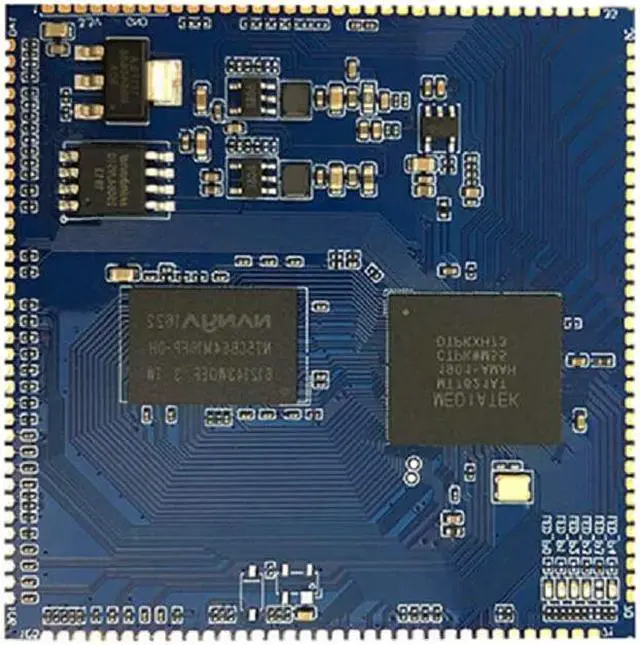

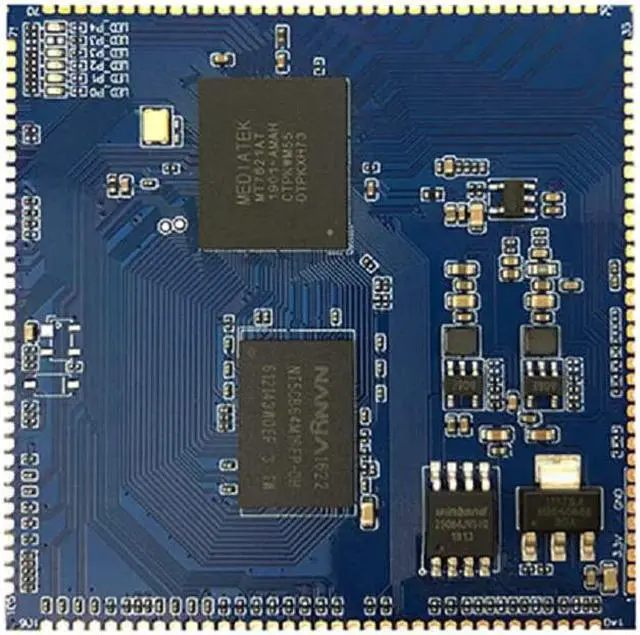

Main chip: MT7621AT (customizable industrial grade MT7621IAT)
Kernel: MIPS1004Kc
Frequency: 800MHz
Memory: Flash256 / 32MB
Interface type: UART, I2C, PWM, GPIO, PCM, USB2.0 / 3.0, PCle
Other parameters
Working voltage standard: DC3.3V ± 0.2V
Working current: 500mA
Environmental Standards
Working temperature: -20-60
Operating humidity: 10% -90% RH (non-condensing)
Storage temperature: 0-80
Storage humidity: 5% -90% RH (non-condensing)
Size: 50 × 50 × 3mm (± 0.2mm)
1. About industrial-grade solution: MT7621lAT chip can be customized (working temperature -40-85 , higher cost).
2. About the factory instructions: The factory default driver is programmed. Customers can update the official OpenWrt firmware by themselves, and can provide the schematic diagram of the baseboard corresponding to the module.
