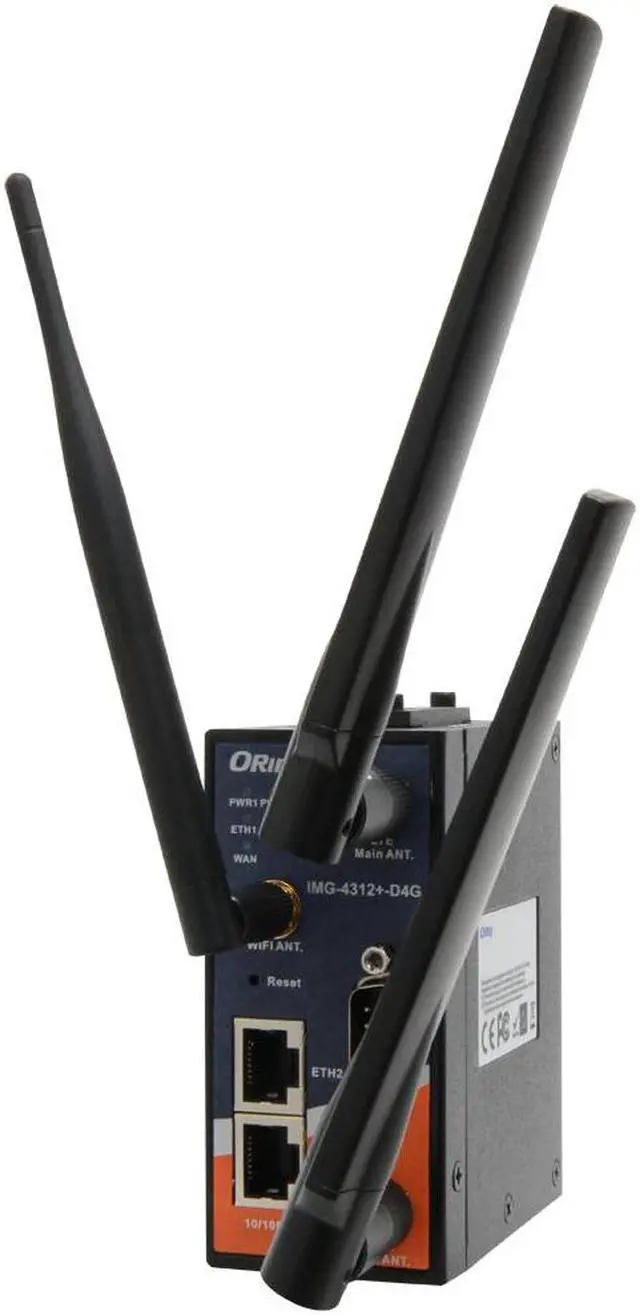

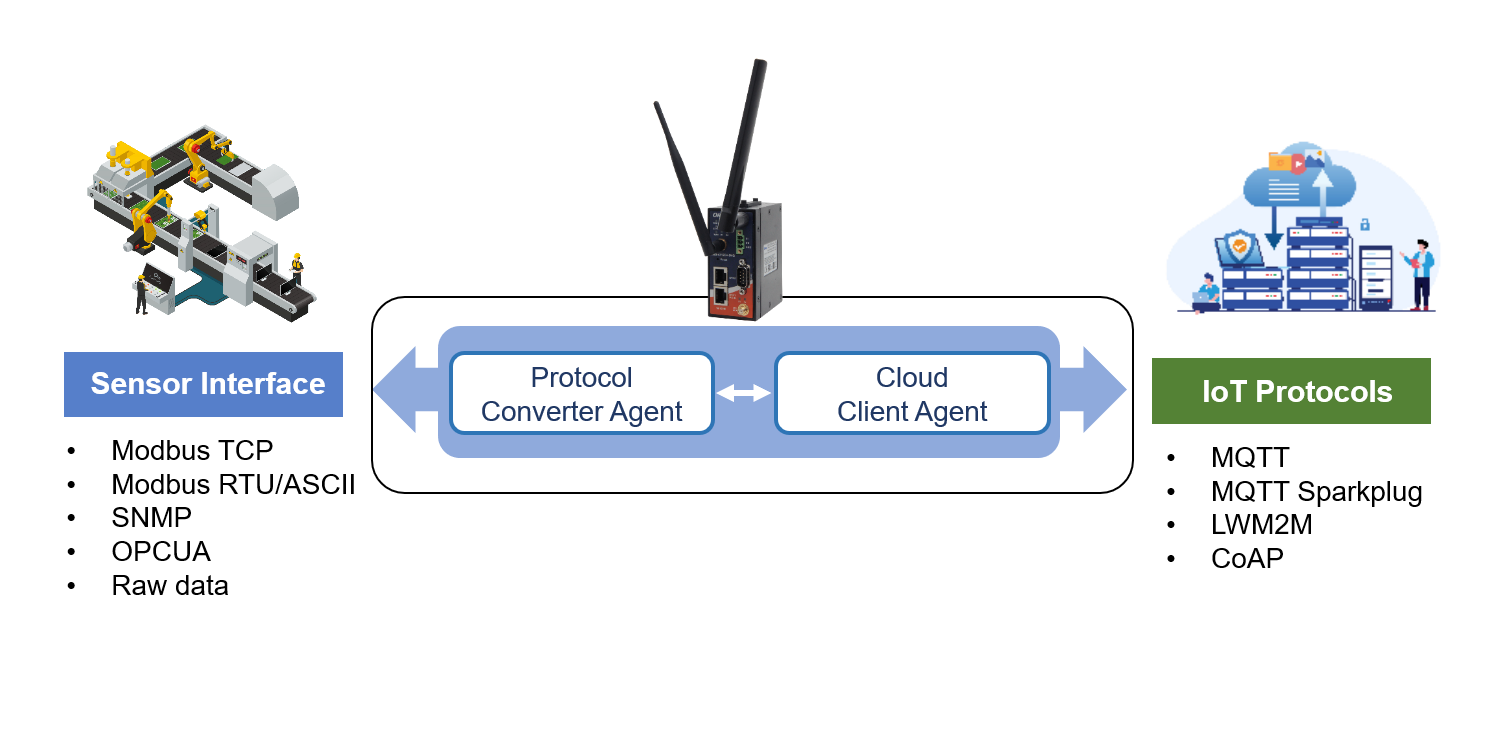

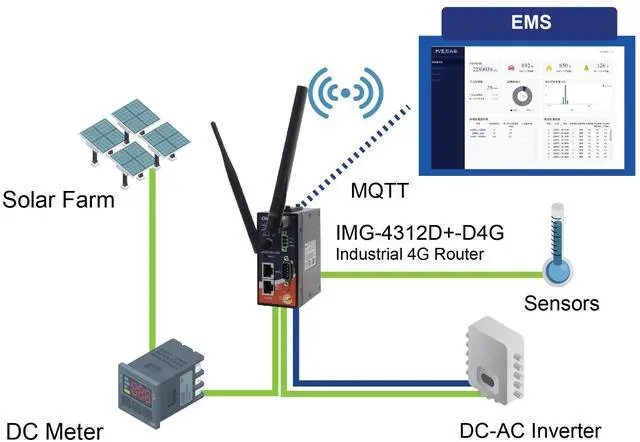

IMG-4312D+-D4G LTE cellular M2M Gateway is an innovative solution for Cloud, IoT, and Industry 4.0 applications. It securely collects data from factory floor devices and environmental sensors, and facilitates control commands from Cloud Platforms. Supporting LTE with 4G, Ethernet, Serial, and Wi-Fi connectivity options, it communicates via Modbus RTU/TCP protocols and supports VPN (OpenVPN, PPTP, IPSec). Compatible with MQTT, CoAP, and LWM2M, it integrates seamlessly with Cloud Platforms, enabled by ORing's Open Gateway software for simplified IoT deployment and data management.
Enables secure remote access, data acquisition, and real-time control in factory environments where wired connectivity is limited or unreliable.
Provides vehicle tracking, real-time data transmission, passenger Wi-Fi, and onboard system diagnostics through a stable cellular connection.
Delivers internet access and equipment monitoring in remote or temporary worksites, supporting safety systems and centralized management.
Connects sensors, cameras, and control devices in isolated locations such as oil fields, pipelines, or weather stations, ensuring uninterrupted data transmission to control centers.
| 10/100 Base-T(X) ports in RJ45 | 2 |
|---|---|
| PoE P.D port | Present at ETH1 (IEEE 802.3af) |
| SIM card slot | 2 |
| Cellular standard | GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA / LTE |
| Cellular band option | LTE: FDD:1900(B2)/1700(B4)/850(B5)/700(B12)/700(B13)/700(B14)/1700(B66)/600(B71) MHz, UMTS/HSDPA/HSUPA/HSPA+: 1900/1700/850 MHz |
| Cellular antenna connector | 2 x SMA Female |
| WIFI standard | IEEE 802.11 b/g/n |
| WIFI frequency | America/ FCC: 2.412~2.462 GHz (11 channels) |
| WIFI antenna connector | 1 x RP-SMA Female |
| Serial port | DB9 x 1 |
| Serial operation mode | RS-232/422/485 |
| Serial baud rate | 110 bps to 115.2 Kbps |
| Network protocol | ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, DDNS, PPPoE |
| Input power | Dual 12-48VDC |
| Overload current protection | Present |
| Enclosure | IP30 |
| Dimension | 45 (W) x 80.6 (D) x 95 (H) mm |
| Operating temperature | -25 to 70°C |
| EMC | CE EMC (EN 55024, EN 55032), FCC Part 15 B |
| Radio frequency | EN 301 489-1/-17(2.4G), EN 300 328(2.4G), EN 301 511(2G), EN 301 908-1(3G/4G), FCC Par 15C(2.4G) |
| Safety | UL61010-1/-2-201 |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-6 |
| Telecom | Approved by AT&T, Verizon, and FirstNet |
